Flat Screen Wall Mount with Tilt

BT7511

For Small Screens



  • Designed for screens up to 23” (58cm) / 20kg (44lbs)

  • Fits screens with VESA mounting patterns:
    75mm x 75mm and 100mm x 100mm

  • Easy tilt adjustment - 10° and +17°

  • Security locking screws and Allen key provided for secure installation

  • Simple ‘hook-on’ installation with all mounting hardware included



Maximum weightMaximum screen size
20kg (44lbs) 23" (58cm)
  BT7511 - Adjustable Tilt Flat Screen Wall Mount
  • Designed for small flat screens up to 23” (58cm / 20kg (44lbs)

  • Fits screens with VESA mounting patterns:
    75mm x 75mm and 100mm x 100mm

  • Easy tilt adjustment -10° and +17°

  • Mounts screen only 55mm (2.1”) from wall

  • Security locking screws and Allen key provided for secure installation

  • Features ‘OWLS’™ On Wall Levelling System
  • Simple ‘hook-on’ installation with all mounting hardware included

  • Community Design Number: 001713280-0004
  • Screen Size: up to 23”
  • Max. Weight: 20kg (44lbs)
  • Dist from Wall: 55mm (2.1”)
  • VESA compatibility: 75 x 75, 100 x 100
  • Tilt: +17°, -10°
  • Colours available: Black, Silver

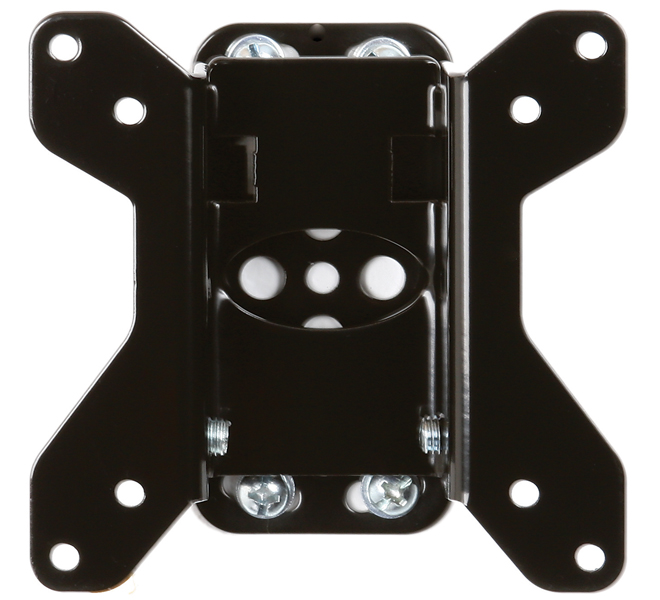

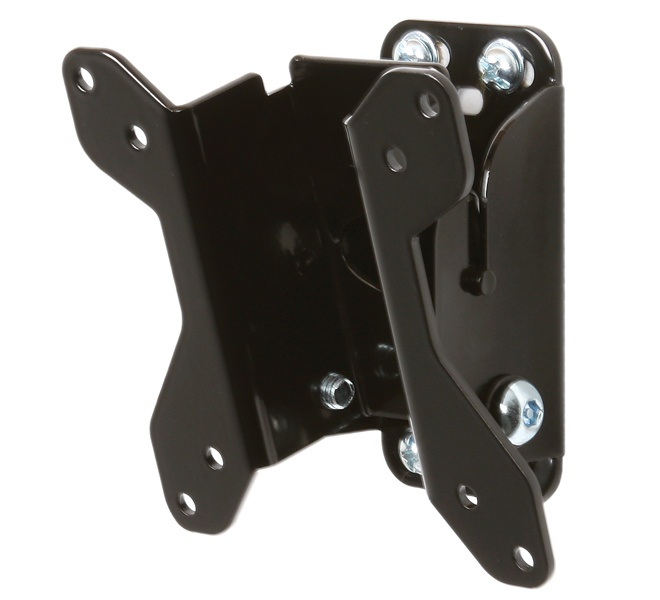

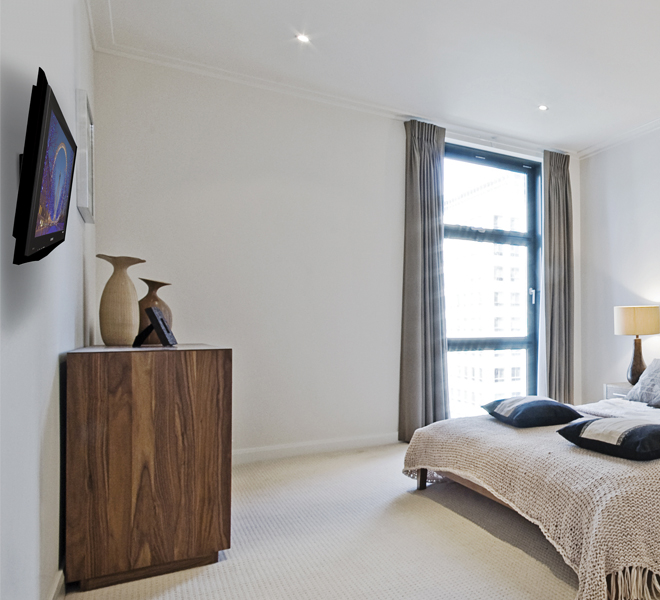

BT7511 - Adjustable Tilt Flat Screen Wall Mount - Side View BT7511 - Adjustable Tilt Flat Screen Wall Mount - Front View BT7511- Adjustable Tilt Flat Screen Wall Mount - Lifestyle Image

Assembly Leaflet (PDF)

Product Specification Sheet (PDF)
