Short Drop Universal Projector Mount

BT5890-010

Short Drop



  • Designed for LCD/LED/DLP projectors up to 10kg (22lbs)
  • Ceiling drop: 190mm (7.4")
  • +/- 15° tilt adjustment, +/- 15° roll adjustment & 360° swivel
  • Integrated cable management
  • Maximum distance between any 2 fixing points: 493mm
  • Projector can also be mounted directly to the carousel
  • Suitable for projectors using M2.5, M3, M4, M5 and M6 fixings



Maximum weightCeiling dropCeiling plate diameter
10kg (22lbs) 190mm (7.4") 150mm (6")
  BT5890-010 - Short Drop Universal Projector Mount - Black
  • Designed for LCD/LED/DLP projectors up to 10kg (22lbs)
  • Ceiling drop: 190mm (7.4")
  • +/- 15° tilt adjustment, +/- 15° roll adjustment & 360° swivel
  • Integrated cable management
  • Maximum distance between any 2 fixing points: 493mm
  • Projector can also be mounted directly to the carousel
  • Suitable for projectors using M2.5, M3, M4, M5 and M6 fixings
  • Keyhole 'hook-on' feature for easy installation
  • Supplied with safety bolt for a secure installation
  • Ceiling fixings and all mounting hardware included
  • Coverplate included for a smart installation
  • Also available (separately) BT5890-075 (895mm drop), see below
  • Also available (separately) BT5890-100 (1000mm drop), see below
  • Also available (separately) BT5810-150 (1645mm drop), see below
  • Max. Weight: 10kg (22lbs)
  • Colours Available: Black, White
  • Tilt adjustment: +/- 15°
  • Roll adjustment: +/- 15°
  • Swivel: 360°
  • Maximum distance between any 2 fixing points: 493mm (19.4”)
  • Ceiling drop: 190mm (7.4")

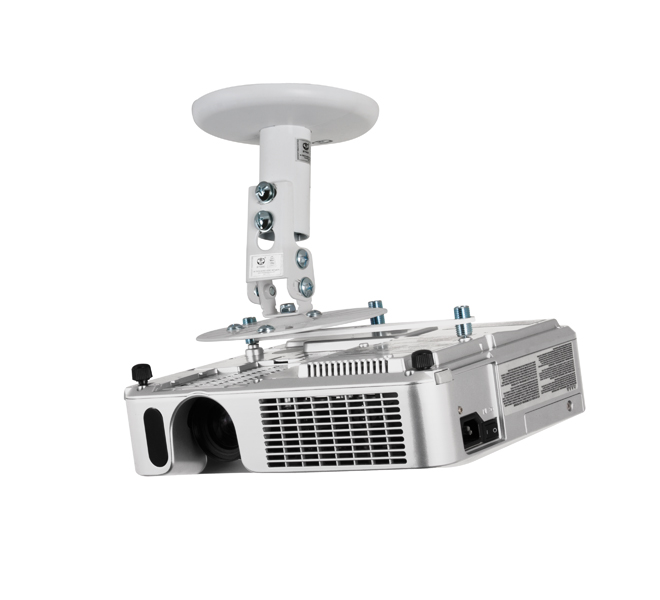

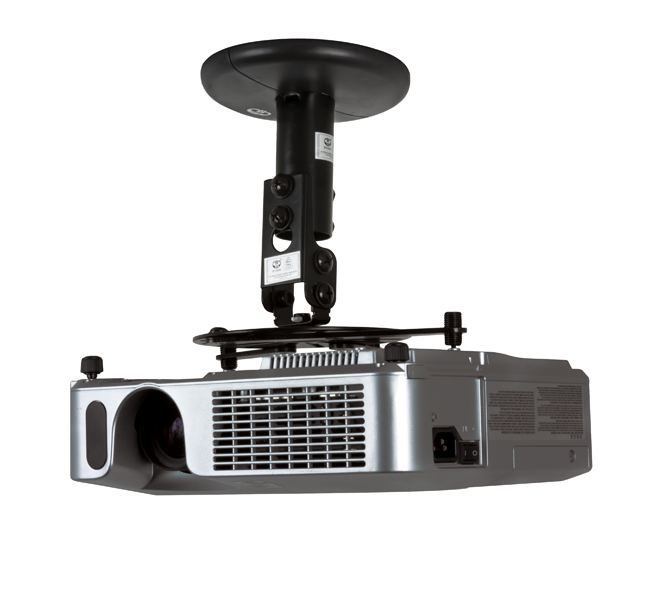

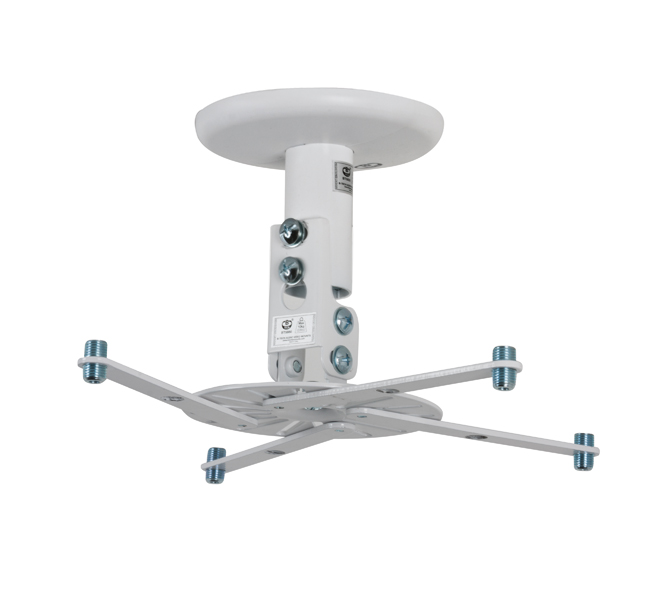

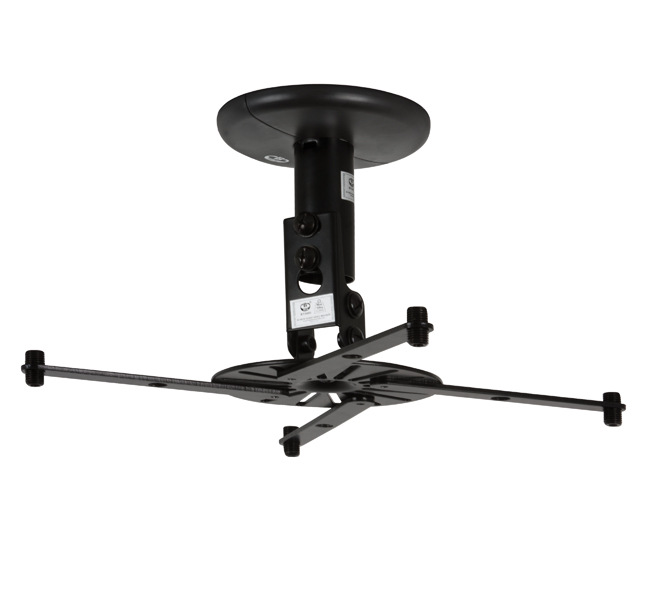

BT5890-010 - Short Drop Universal Projector Mount - Black BT5890-010 - Short Drop Universal Projector Mount - Black BT5890-010 - Short Drop Universal Projector Mount - White BT5820-CP Coverplate Available Separately

Assembly Leaflet (PDF)

Product Specification Sheet (PDF)
