Universal Pop-In, Pop-Out Menu Board Mounting System

BT8331

For pop-out menu boards




The BT8331 is a modular wall mounting system for menu board installations of any size and features pop-in, pop-out interface arms designed to aid installation and allow access to the rear of the screens for servicing and maintenance. As part of the System X range, the BT8331 features a contemporary, lightweight yet incredibly strong design with a high-end aesthetic quality and 8-point micro-adjustment for seamless screen alignment.

Installation Overview Videos






















Configure a BT8331

  • Universal design suitable for all sized screens up to 50kg (per screen)

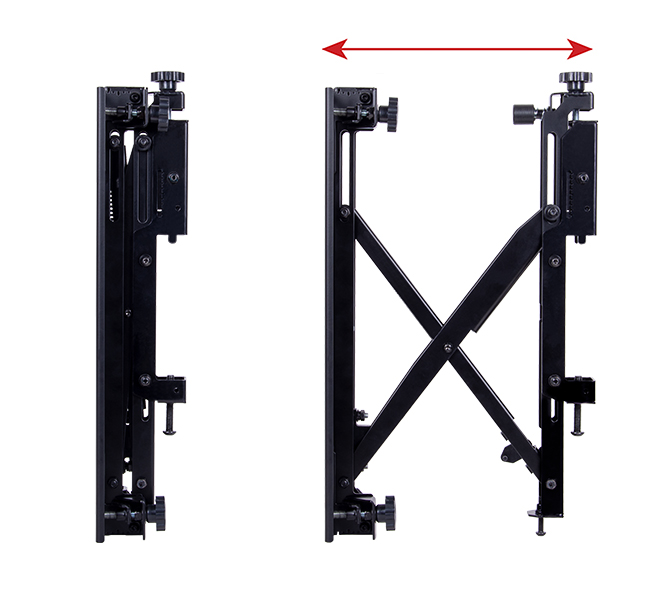

  • Features pop-in, pop-out function to allow access to the rear of screens
    for servicing and maintenance and to aid installation
  • Tool-less micro-adjustments at 8 points for seamless display alignment
  • Suitable for landscape or portrait mounting
  • High-end aesthetic quality
  • Safety screws help prevent unauthorised removal of screens
  • Ideal for recess mounting menu boards
  • Arms include locking screw to prevent accidental pop-out of screens
  • Cable management included for a neat and tidy installation

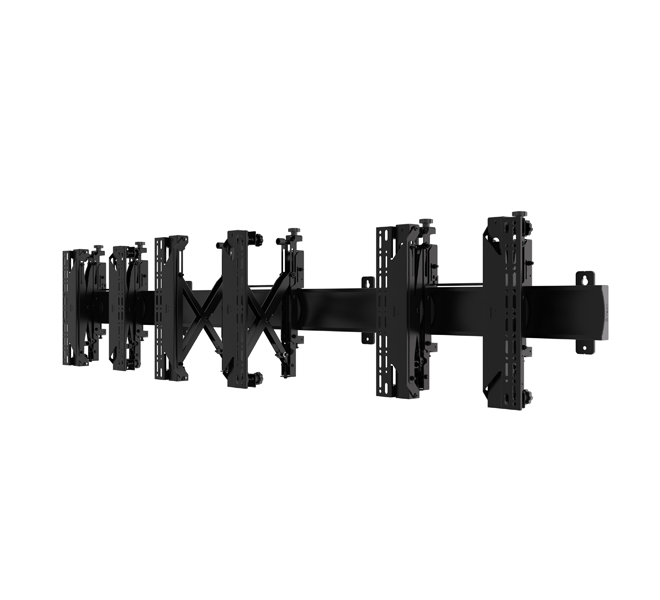

  • Multiple rail lengths available (rails can also be joined to create larger installs)
  • Can be combined with System 2 poles and collars for floor-to-ceiling installations*

    *Pop-in, pop-out solutions that are mounted from the ceiling should also be fixed to the floor to prevent poles flexing when pushing screens in and out. For more information contact your local sales representative
  • Recommended screen size: 32" - 65"
  • Max load: 50kg (per screen)
  • Depth (with micro-adjustment): 119mm to 133mm
  • Depth (popped out with micro-adjustment): 298mm to 313mm
  • VESA® & non-VESA fixings: (max vertical dimension) 400mm*
  • Colour (VESA arms): Black
  • Colour (horizontal rail): Silver

    *The VESA specification of the BT8331 refers to the vertical dimension only. All System X interface arms can be positioned as far along the rail as necessary. It is also possible to increase the maximum vertical fixing to 600mm by using BT7564 interface adaptor arms (available separately). Please note that using these adaptors will increase the total depth on the install by 20mm.

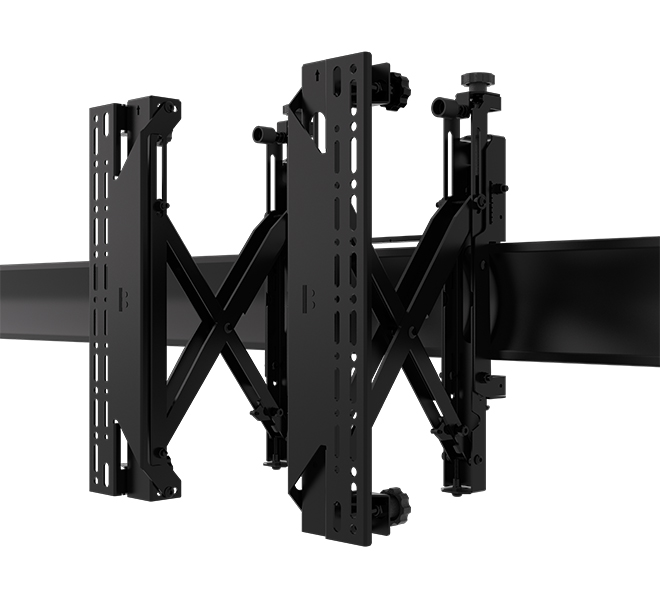

BT8331 - Universal Pop-In, Pop-Out Menu Board Mounting System Tool-less micro-adjustment at 8 points for seamless display alignment Push to open / push to close system provides quick and easy service access Multiple rail lengths available (rails can also be joined to create larger installs)
