Universal Ceiling Mounted Menu Board Mounting System

BT8332

For ceiling mounting menu boards

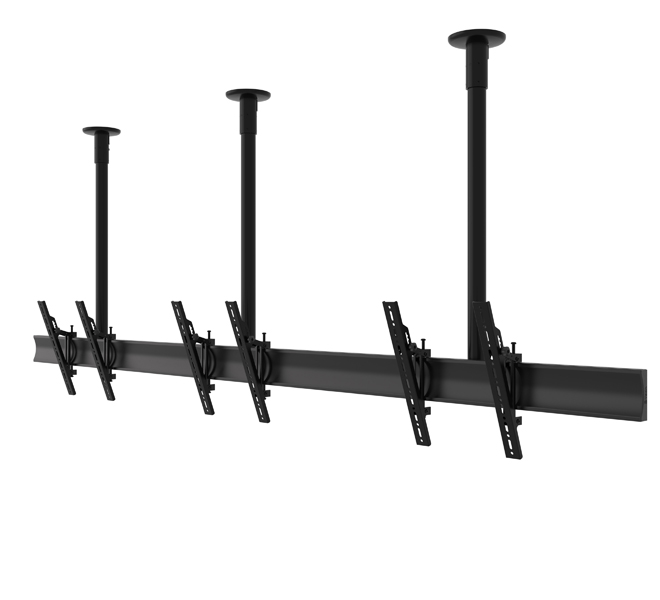

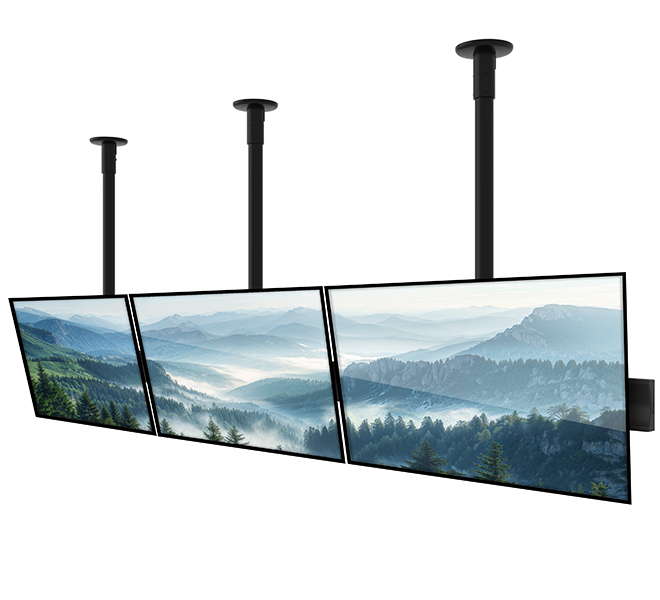

The BT8332 is a modular ceiling mounting system for menu board installations of any size. The BT8332 can mount screens in landscape or portrait orientations with the option for tilt adjustment up to +20° for enhanced overhead visibility, perfect for fast food restaurants. As part of the System X range, the BT8332 can be used in thousands of different configurations and must be ordered according to your requirements using B-Tech's online configuration tool.

Installation Overview Videos






















Configure a BT8332

  • Universal design suitable for all sized screens up to 50kg (per screen)
  • High-end aesthetic quality
  • Suitable for landscape or portrait mounting

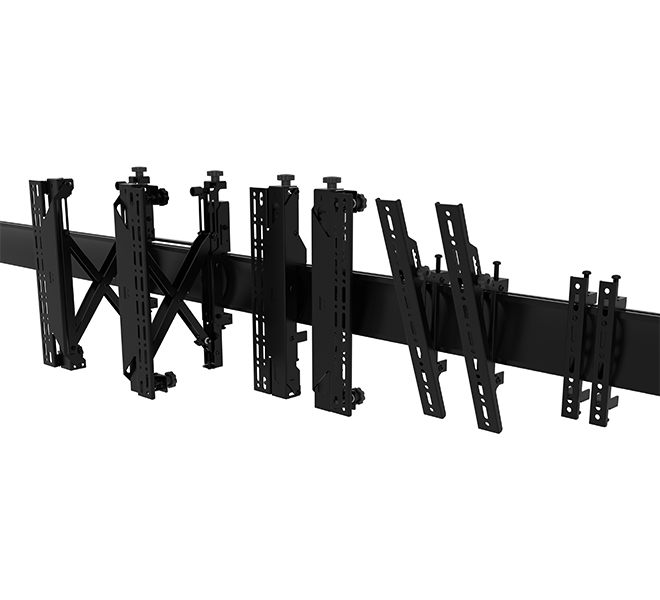

  • Choice of fixed or tilting interface arms available to suit a range of installs
  • Suitable for landscape, portrait and back-to-back mounting
  • Combines with B-Tech's System 2 range to mount from the ceiling or in floor-to-ceiling configurations when wall mounting is not possible
  • All arms feature levelling screws to adjust the screen height
  • Tilting arms feature up to +20° tilt adjustment for enhanced overhead visibility

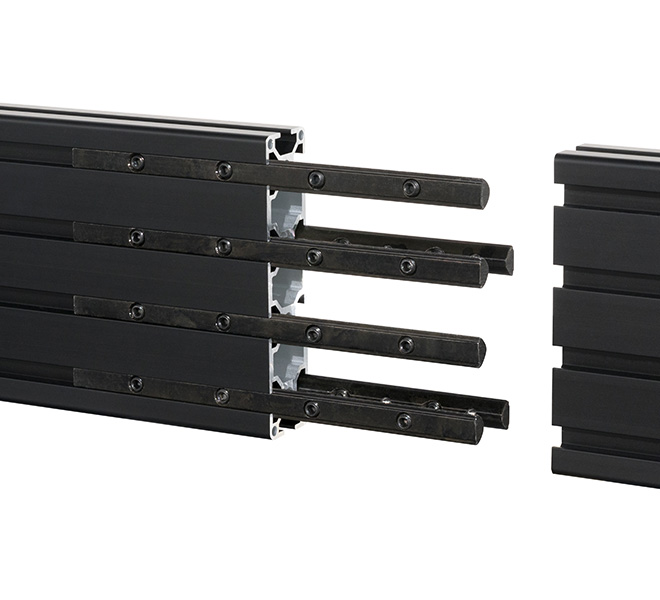

  • Multiple rail lengths available (rails can be also be joined)
  • Recommended screen size: 32" - 65"
  • Max load: 50kg (per screen)
  • Tilt range (where applicable): +20°
  • VESA® & non-VESA fixings: (max vertical dimension) 400mm*
  • Pole Length: 0.5m up to 3m (can be cut to length)
  • Colour (VESA arms): Black
  • Colour (Horizontal Rail): Silver
  • Colour (Poles & Ceiling Mount): Black or Chrome

    *The VESA specification of the BT8332 refers to the vertical dimension only. All System X interface arms can be positioned as far along the rail as necessary. It is also possible to increase the maximum vertical fixing to 600mm by using BT7564 interface adaptor arms (available separately). Please note that using these adaptors will increase the total depth on the install by 20mm.
BT8332 - Universal Ceiling Mounted Menu Board Mounting System Choice of fixed or tilting interface arms available to suit a range of installs Suitable for landscape, portrait or back-to-back mounting Multiple rail lengths available (rails can also be joined to create larger installs)

Assembly Leaflet (PDF)

Product Specification Sheet (PDF)
