Universal Video Wall Stand

BT8370

Fits all screens 46" - 65"




As part of B-Tech's dynamic System X range, the BT8370 is a contemporary freestanding video wall mounting solution which is available to order in a variety of different configurations. The system's universal design supports all models of video wall screen and is lightweight yet incredibly strong with a high-end aesthetic quality. Important time saving features such as tool-less 8 point micro-adjustment and a universal screen position spacer to speed up the installation process are included as standard.

Installation Overview Videos







BT8370-2x2 - System X Universal Video Wall Stand for 2x2 Video Walls


















Variety of Configurations Available

The BT8370 is available to order in a configuration which suits your exact needs, our online configuration tool allows you to specify your requirements with a choice of over 2000 different configurations for video wall setups ranging from 2x2 up to 6x4.

For user convenience three BT8370 kits for the most common video wall setups are available to order off-the-shelf. These are; BT8370-2X2 / BT8370-3X3 / BT8370-3X3-60. For specific details of these kits please see the tabs below. For all other requirements please use the System X configurator by clicking the button below.


Configure a BT8370




  • Universal design suitable for all video wall screens
  • ƒƒHigh-end aesthetic quality
  • ƒƒTool-less micro-adjustments at 8 points for seamless screen alignment
  • ƒƒIntegrated cable management
  • Includes adjustable levelling feet
  • ƒƒCollar compatible accessories such as shelves can be fitted directly to the extrusion
  • Includes re-usable screen position spacer to aid installation of screens
  • ƒƒOnline configuration tool to specify alternative configurations, in both landscape and portrait orientations
  • ƒƒSafety screws help prevent unauthorised removal of screens
  • All mounting hardware included

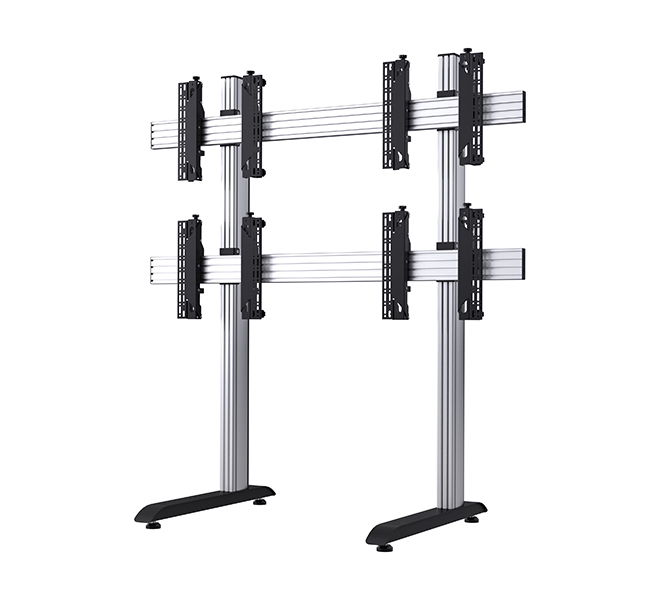

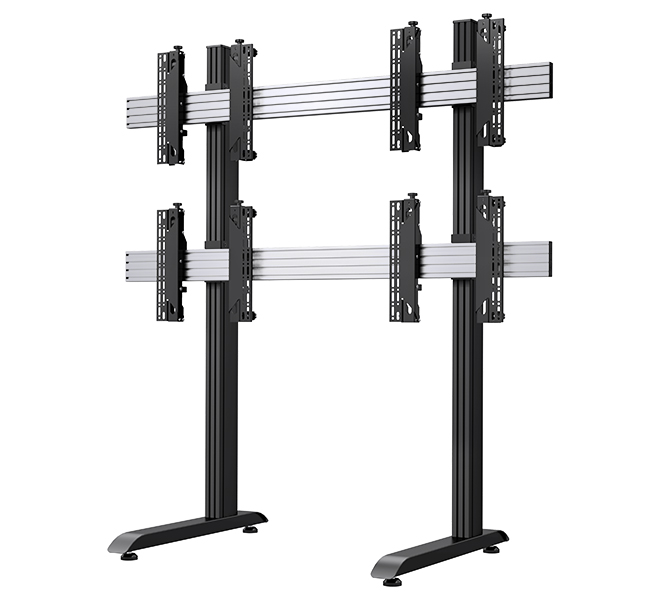

BT8370-2x2

System X
Universal Video Wall Stand for 2x2 Video Walls
(for 46 to 60" screens)

Off-the-shelf kit designed to mount 46-60" screens in a 2x2 configuration

  • Recommended screen size: 46"- 60"
  • Max load: 50kg (per screen)
  • VESA® and non-VESA fixings:
    200 x 200 up to 600 x 400
  • Dimensions:
    W: 2005mm D: 950mm H: 1898 up to 2094mm
  • Colour (base & VESA arms): Black
  • Colour (verticals): Black or Silver
  • Colour (horizontals): Silver

    Full product specification sheet available
    on the Downloads tab

BT8370-2x2 - System X Universal Video Wall Stand for 2x2 Video Walls

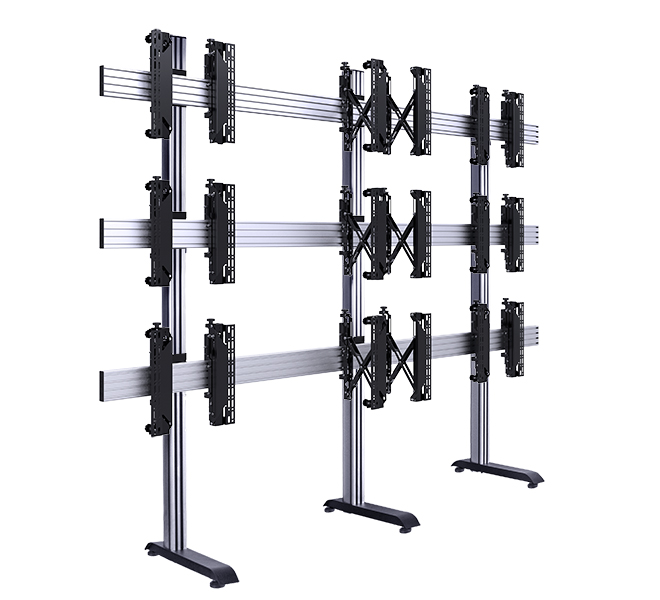

BT8370-3x3

System X
Universal Video Wall Stand for 3x3 Video Walls
(for 46 to 55" screens)

Off-the-shelf kit designed to mount 46-55" screens in a 3x3 configuration

  • Recommended screen size: 46"- 55"
  • Max load: 50kg (per screen)
  • VESA® and non-VESA fixings:
    200 x 200 up to 600 x 400
  • Dimensions:
    W: 3005mm D: 950mm H: 2498 up to 2699mm
  • Colour (base & VESA arms): Black
  • Colour (verticals): Black or Silver
  • Colour (horizontals): Silver

    Full product specification sheet available
    on the Downloads tab

BT8370-3x3 - System X Universal Video Wall Stand for 3x3 Video Walls

BT8370-3x3-60

System X
Universal Video Wall Stand for 3x3 Video Walls
(for 60" screens)

Off-the-shelf kit designed to mount 60" screens in a 3x3 configuration

  • Recommended screen size: 55"- 60"
  • Max load: 50kg (per screen)
  • VESA® and non-VESA fixings:
    200 x 200 up to 600 x 400
  • Dimensions:
    W: 3505mm D: 950mm H: 2498 up to 2699mm
  • Colour (base & VESA arms): Black
  • Colour (verticals): Black or Silver
  • Colour (horizontals): Silver

    Full product specification sheet available
    on the Downloads tab
BT8370-3x3-60 - System X Universal Video Wall Stand for 3x3 Video Walls

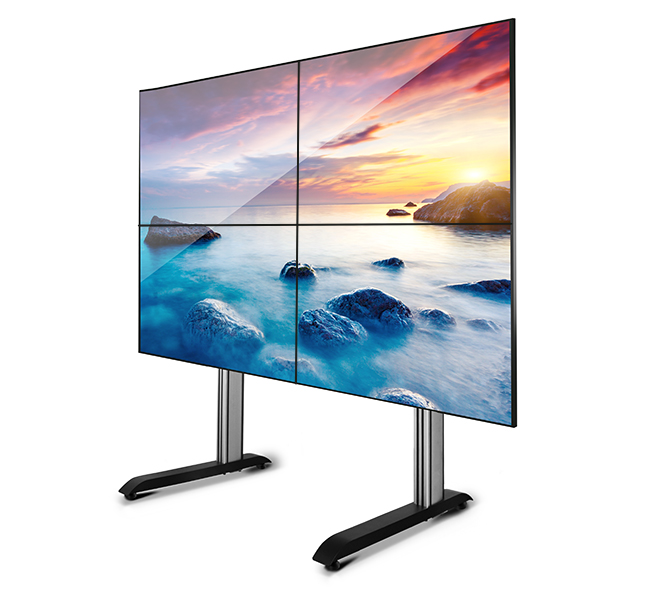

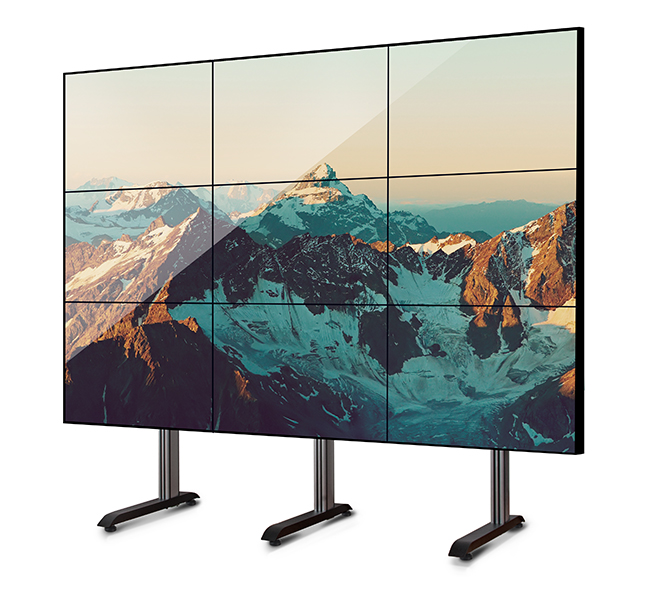

BT8370-2x2 - System X Universal Video Wall Stand for 2x2 Video Walls BT8370-2x2 - System X Universal Video Wall Stand for 2x2 Video Walls BT8370-3x3 - System X Universal Video Wall Stand for 3x3 Video Walls BT8370-3x3 - System X Universal Video Wall Stand for 3x3 Video Walls

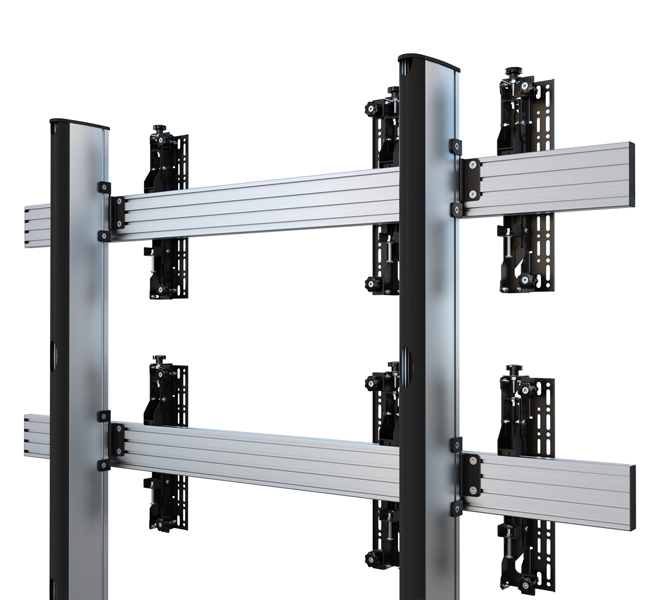

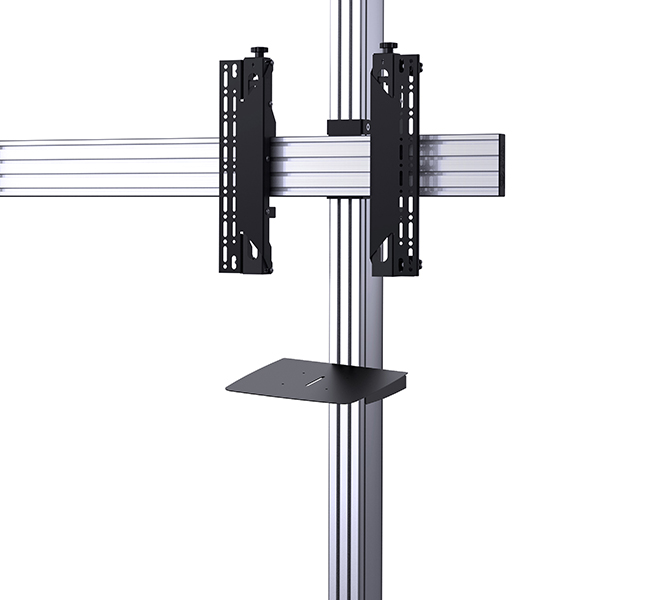

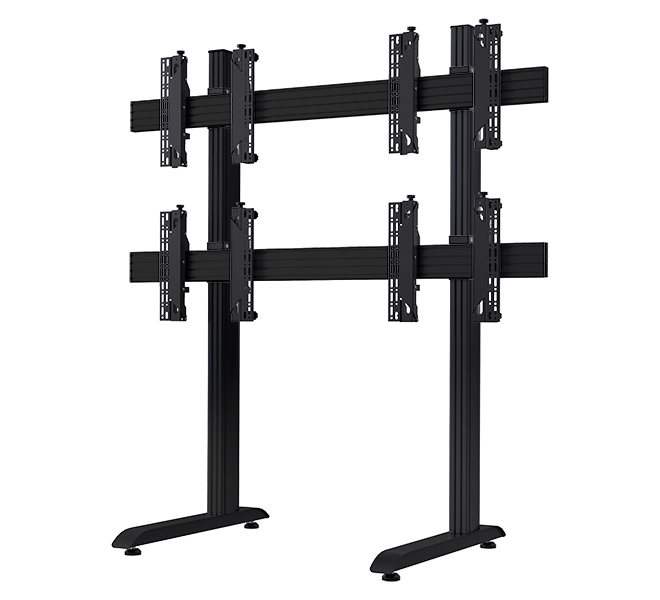

BT8370-2X2 - Black Verticals BT8370-2X2 - Black Verticals Rear View BT8370-2X2 - Black Verticals with Accessory Shelf BT8370-3X3 - Black Verticals

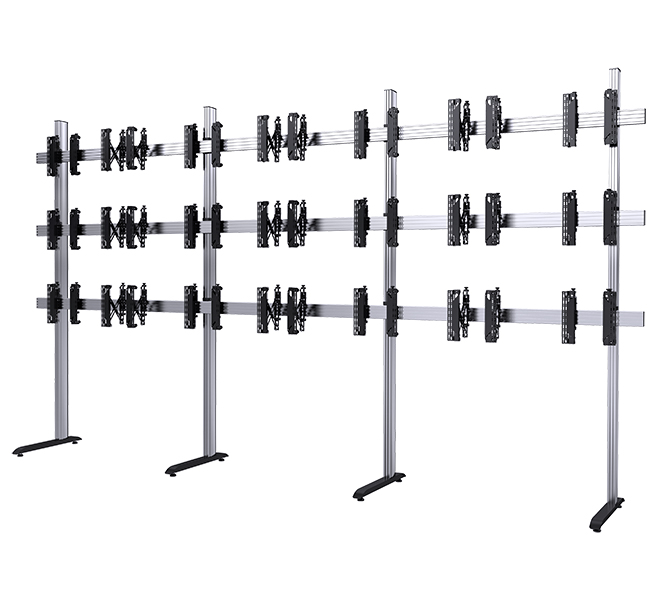

BT8370 - 2x4 Custom configuration BT8370 - 3x4 Custom configuration BT8370 - 5x3 Custom configuration BT8370 - 6x4 Custom configuration

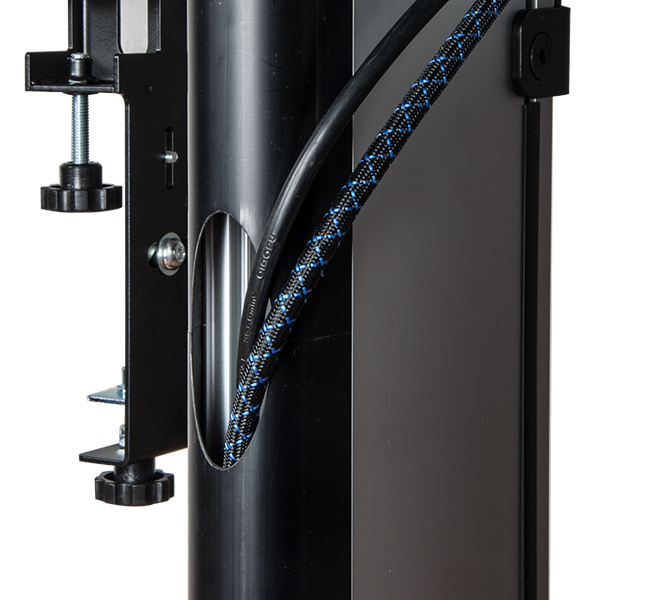

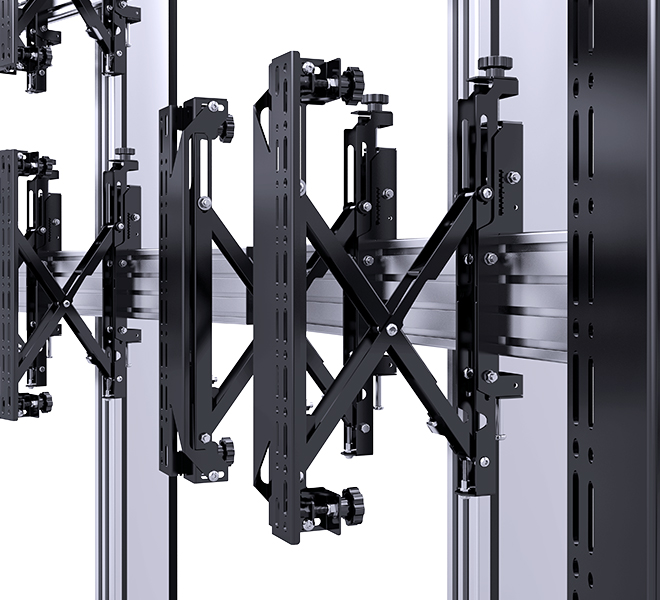

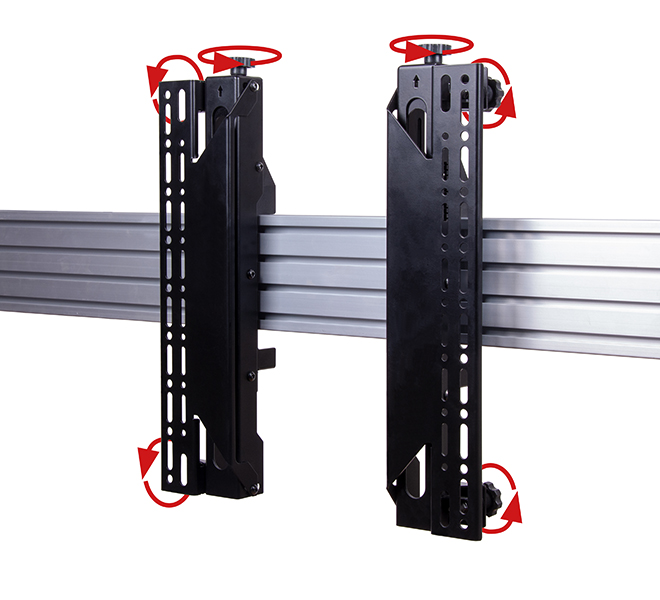

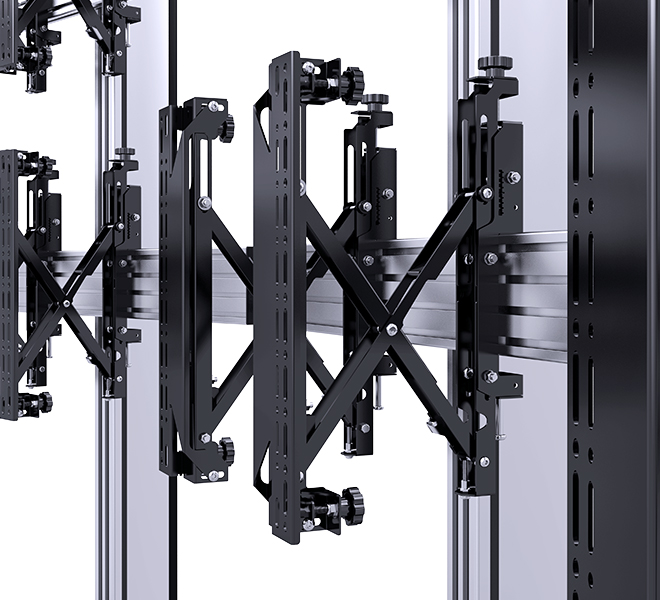

BT8370 - 8 point tool-less micro-adjustment for seamless screen alignment BT8370 - Cable management hides untidy cables and adds to the stylish finish BT8370 - Includes adjustable levelling feet BT8390-SP - Screen spacer designed to eliminate calculations and guess work when installing horizontal rails - Supplied with BT8370

Assembly Leaflets

BT8370 Assembly Leaflet (PDF)

BT8370-2x2 Assembly Leaflet (PDF)

BT8370-3x3 Assembly Leaflet (PDF)

BT8370-3x3-60 Assembly Leaflet (PDF)


Product Specification Sheets

BT8370-2X2 Product Specification Sheet (PDF)

BT8370-3X3 & BT8370-3X3-60 Product Specification Sheet (PDF)


Publications

Introduction to System X (PDF)

Introducción al System X - Español (PDF)


Technical Drawings

BT8370-2X2 Technical Drawing (PDF)

BT8370-2X2 Technical Drawing (DXF)

BT8370-3X3 Technical Drawing (PDF)

BT8370-3X3 Technical Drawing (DXF)

BT8370-3X3-60 Technical Drawing (PDF)

BT8370-3X3-60 Technical Drawing (DXF)
