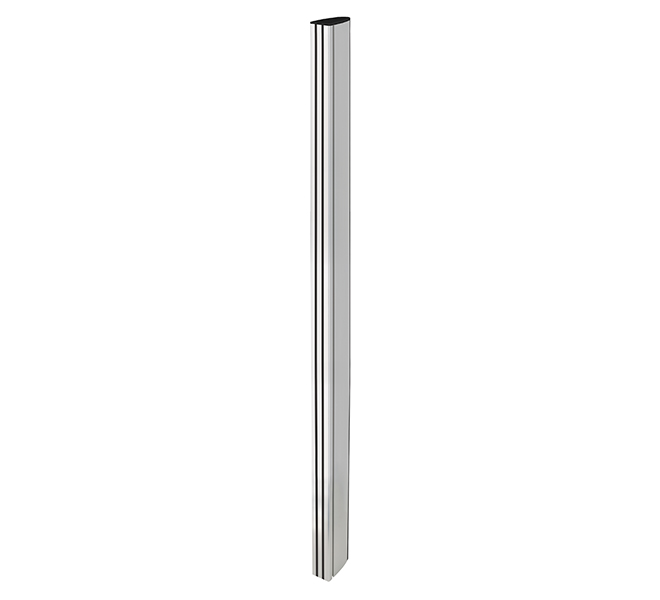

System X Vertical Column

BT8380

Can be joined for installs up to 4.2m tall




BT8380 vertical support columns are the backbone of most System X trolley or floor stand installations. Made from aluminium, the column is sturdy yet lightweight and is designed to support single or multiple horizontal mounting rails. A modern design aesthetic and integrated cable management gives a high-end finish to any install in which they are used. Available in 1.8m and 0.6m lengths, columns can also be joined together using extension kits (available separately) to create video wall and other installations at heights of up to 4.2m.






  • Part of the System X range for use in a variety of applications; freestanding, trolley, bolt down etc.

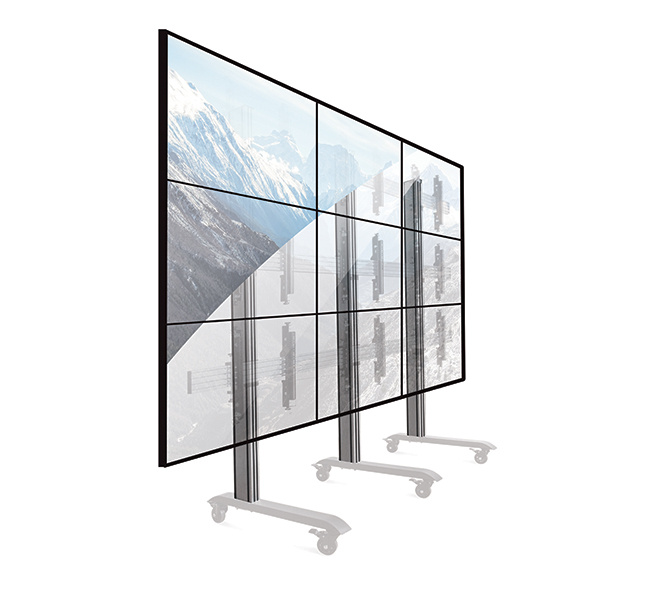

  • Ideal for video walls and other multi-screen installations
  • Can also be used for premium single screen applications
  • Compatible with a variety of floor bases for use in different applications
  • High-end aesthetic quality

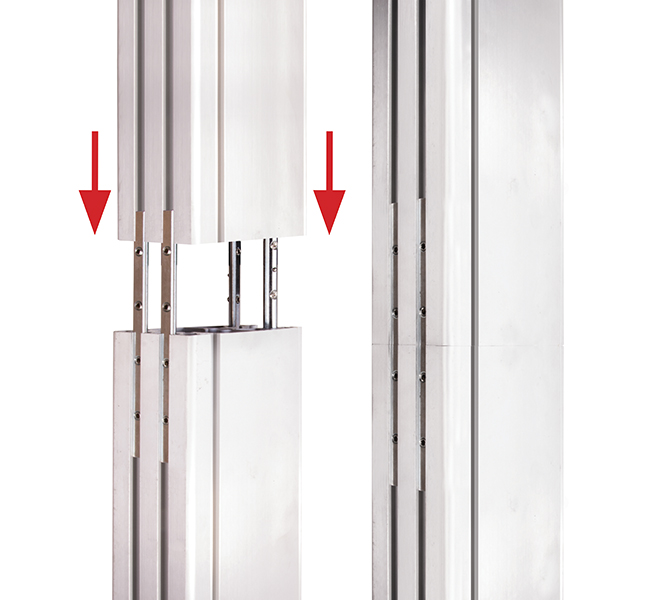

  • Multiple columns can be joined together using BT8380-EXTV to create taller columns

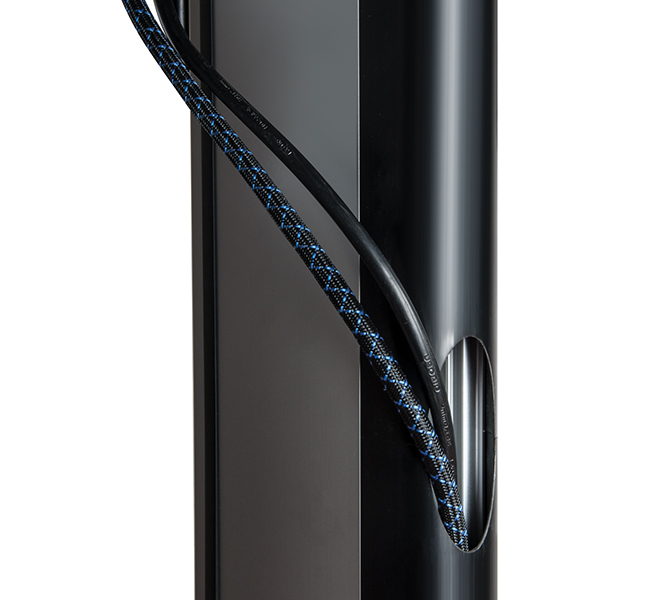

  • Integrated cable management for a neat and tidy finish

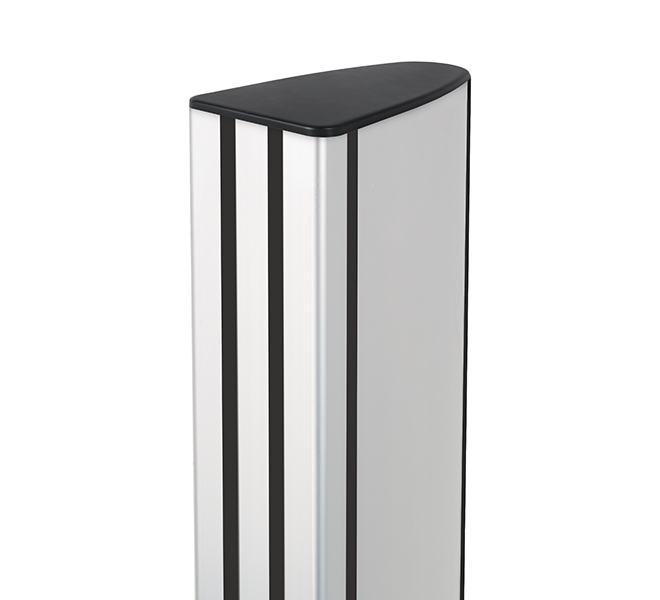

  • Supplied with plastic end caps, cable covers and trim strips to add to the high-end aesthetic quality
  • Includes spare fixings to attach a B-Tech 'collar compatible' accessory (such as shelves) directly
    to the column
  • Max load: Dependent on other components used

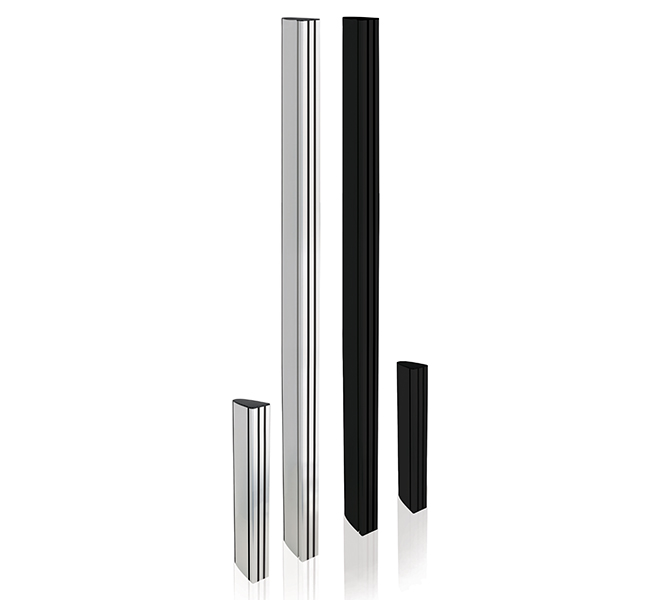

  • Lengths available (as standard): 0.6m and 1.8m
  • Fixing kit to mount a horizontal rail: BT8380-JPK

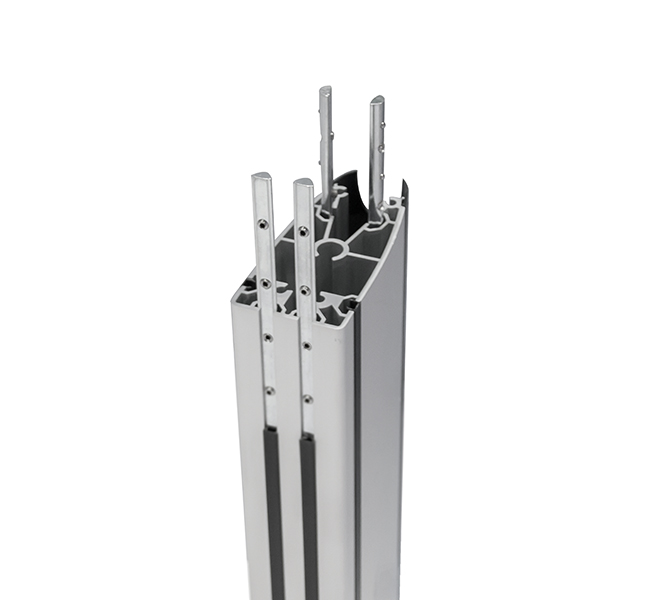

  • Extension kit to join columns: BT8380-EXTV*

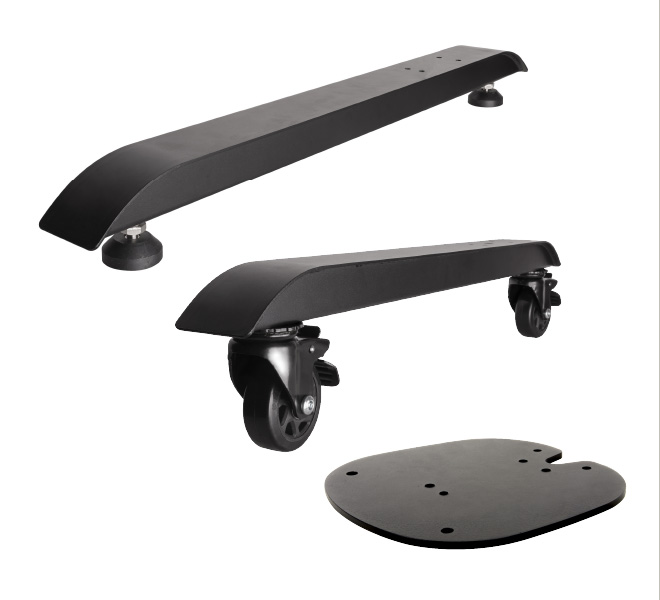

  • Compatible bases: BT8380-BASE / FFB / FSB
  • Colour: Black or Silver

    *(included with 0.6m column as standard)
BT8380 - System X Vertical Support Column Compatible with a variety of floor bases for use in different applications Integrated cable management for a neat and tidy finish Multiple columns can be joined together using BT8380-EXTV (available separately)
Supplied with plastic end caps, cable covers and trim strips to add to the high-end aesthetic quality Ideal for creating large video walls in freestanding, mobile or bolt down configurations Columns are available in various heights, with a choice of black or silver finish Extension kit is supplied as standard with 0.6m Columns

Product Specification Sheet

Product Specification Sheet (PDF)


Assembly Leaflets

BT8380-060 Assembly Leaflet (PDF)

BT8380-180 Assembly Leaflet (PDF)


Technical Drawings

BT8380-060 - Technical Drawing (PDF)

BT8380-060 - Technical Drawing (DXF)

BT8380-180 - Technical Drawing (PDF)

BT8380-180 - Technical Drawing (DXF)
