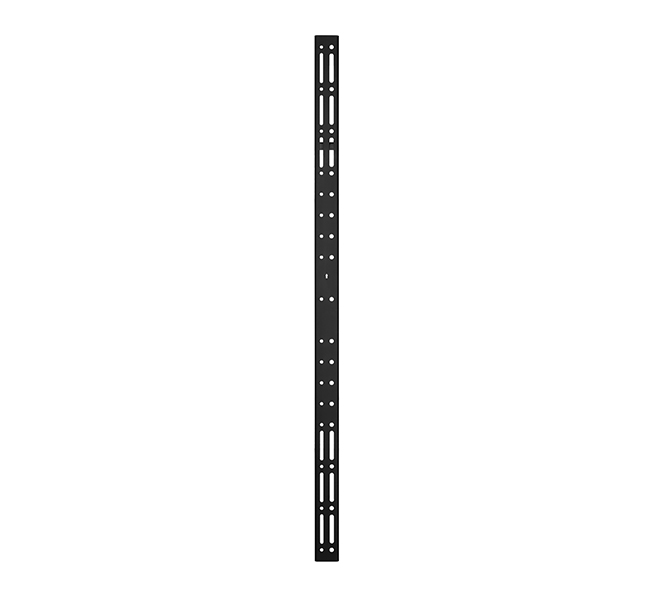

System X Universal Interface Arms - VESA 1200

BT8390-VESA1200F

For XXL Screens




These interface arms are designed to mount XXL screens in a fixed position across two System X horizontal mounting rails. The universal design is compatible with a variety of different screens and allows them to be mounted in either landscape or portrait orientations. Levelling screws on each interface arm provide post installation height adjustment and a mounted depth of 64mm from the wall allows easy access for cables and connectors.








  • Part of the System X range for use in a variety of applications
  • Heavy duty arms capable of supporting substantial loads
  • Universal design compatible with most screens
  • Suitable for landscape or portrait mounting
  • High-end aesthetic quality
  • Lateral adjustment - position arms anywhere along the length of the rail
  • Includes levelling screws to adjust the screen height
  • Safety screws help prevent unauthorised removal of screens
  • Simple 'hook-on' installation
  • All mounting hardware included
  • Recommended screen size (in landscape) 90"+
  • Recommended screen size (in portrait) 55"+
  • Max load 200kg
  • VESA® & non-VESA fixings up to 1200mm* (vertical dimension)
  • Depth 64mm
  • Colour Black
  • Supplied in pairs

    *The VESA specification of the BT8390-VESA1200F refers to the vertical dimension only. All System X interface arms can be positioned as far along the rail as necessary.

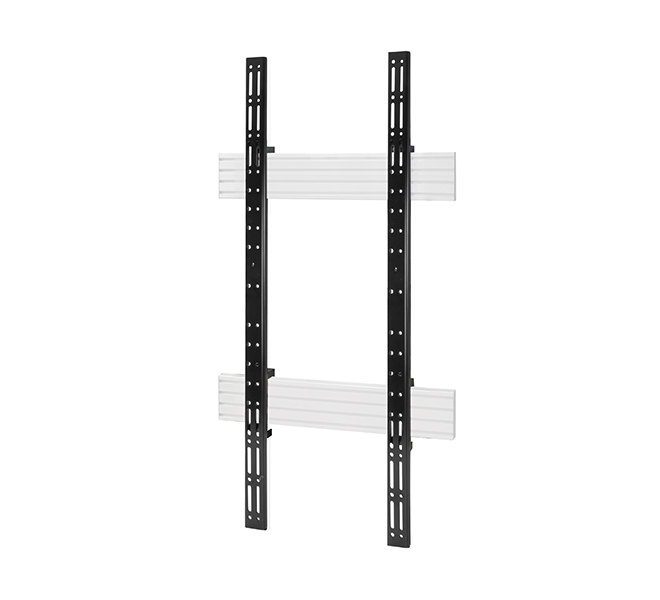

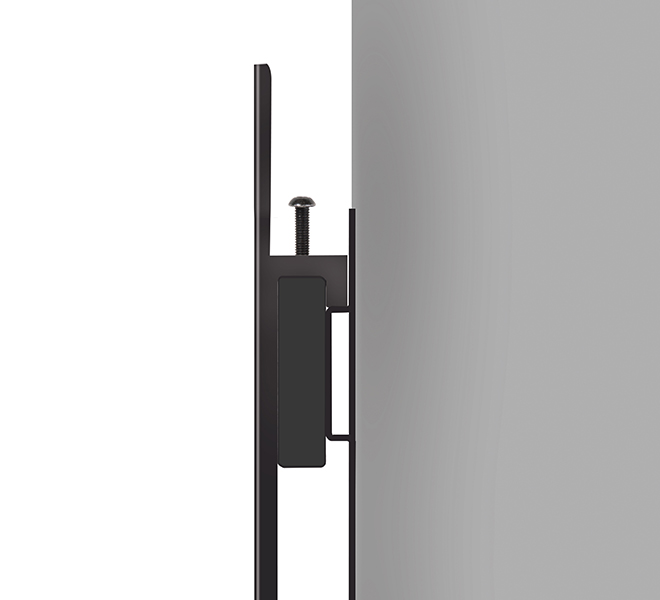

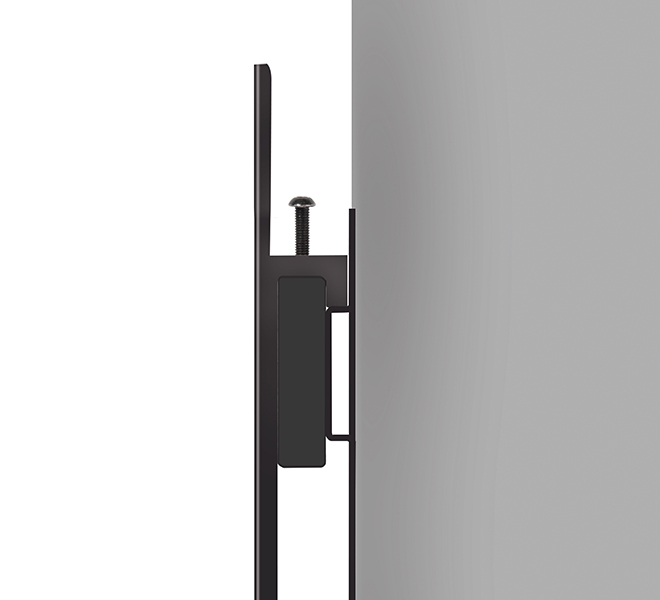

BT8390-VESA1200F - System X™ Universal Interface Arms Position arms anywhere along the length of the rail Arms feature levelling screws to adjust  the screen height Use with BT8390-WFK3 Wall Fixing Kits to create a quick and easy installation

Product Specification Sheet (PDF)

Assembly Leaflet (PDF)

Technical Drawing (PDF)

Technical Drawing (DXF)
