System X Rail Mounting Bracket - 19mm

BT8390-WFK2

 For use with BT8390 rails




The BT8390-WFK2 is a bracket designed to fix BT8390 mounting rails onto walls or poles, for the installation of video walls and other multi-screen configurations. The sturdy 5mm thick plate is designed for installations using micro-adjustment, pop-out or XL interface arms from the System X range.

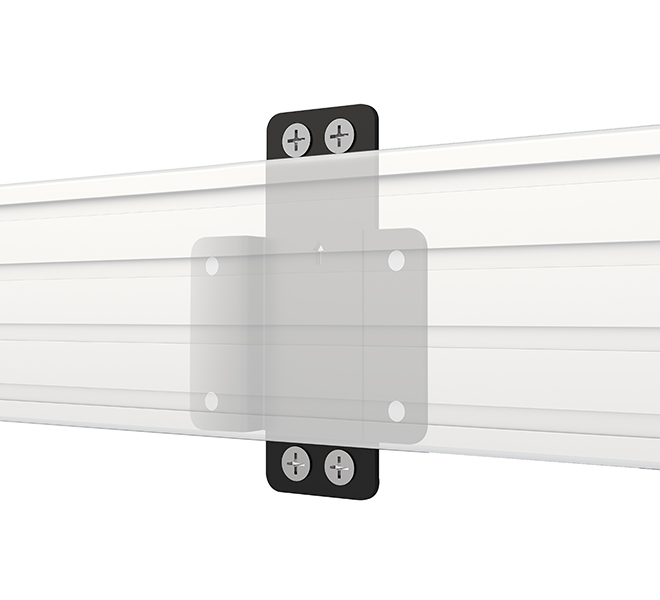

  • Designed to allow BT8390 horizontal rails to be mounted to the wall

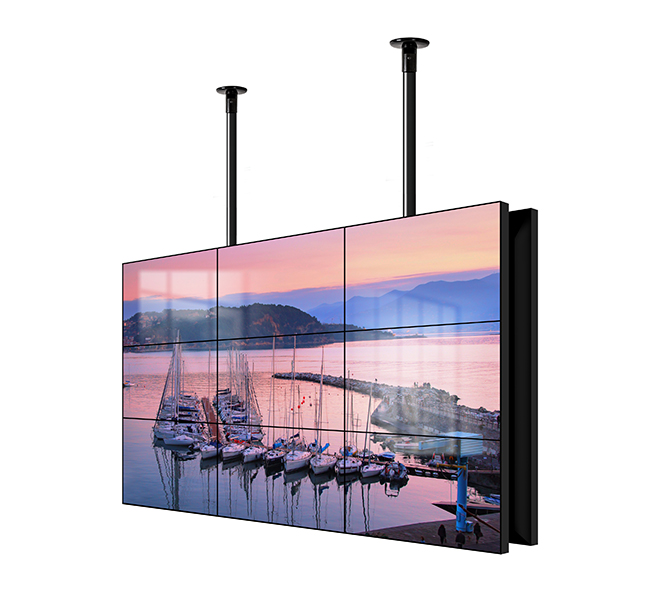

  • Can also be used for pole mounted video wall installations
  • Increased depth allows for an enhanced tilt range when using tilt arms

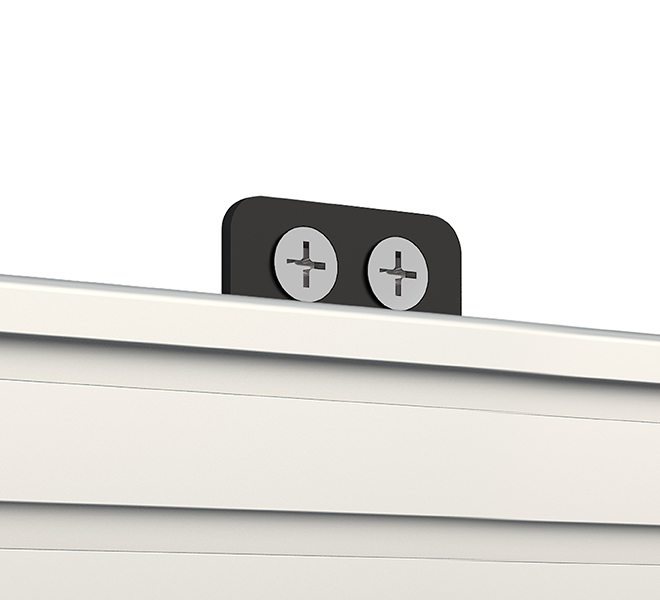

  • Countersunk screws sit flush with the plate for a neat installation

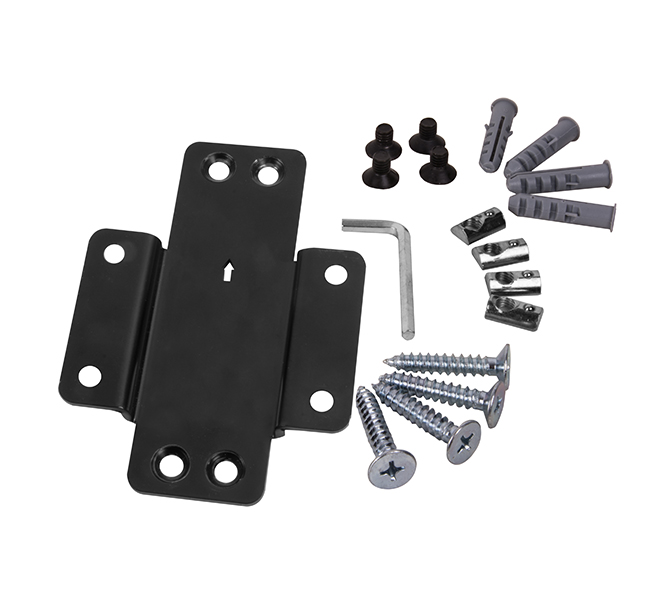

  • All mounting hardware included
  • Compatible interface arms: All System X Arms
  • Distance from wall (to front of rail): 49mm
  • Colour: Black
  • Brackets supplied (per pack): 1
  • Quantity of brackets required per rail length (landscape installs):*
    Rail Length              Qty
    0 - 2000mm             2pcs
    2001 - 3500mm       3pcs
    3501 - 5500mm       4pcs
    5501 - 7750mm       5pcs
    7751 - 8500mm       6pcs


    *Use B-Tech's online configuration tool to automatically calculate the quantity required based on your configuration.

BT8390-WFK2 - System X Rail Mounting Bracket - 19mm Countersunk screws sit flush with the plate for a neat installation All mounting hardware included Can also be used for pole mounted video wall installations
