System X Dual Rail Mounting Bracket - 19mm

BT8390-WFK3

 For use with XL Interface Arms

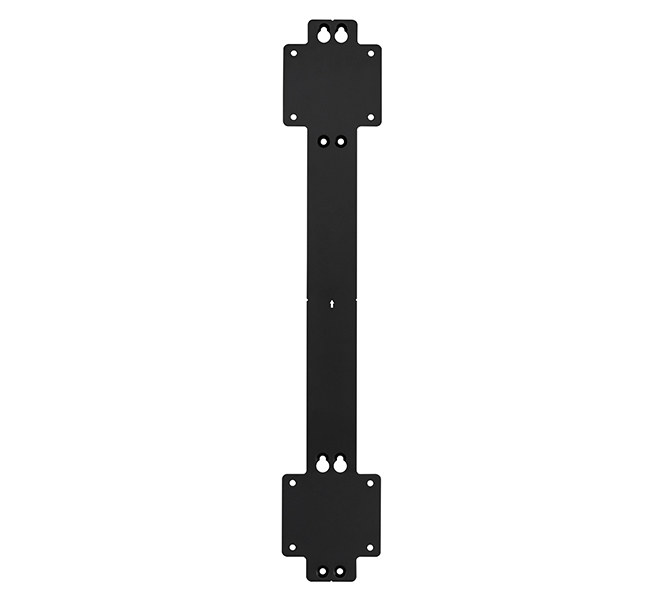

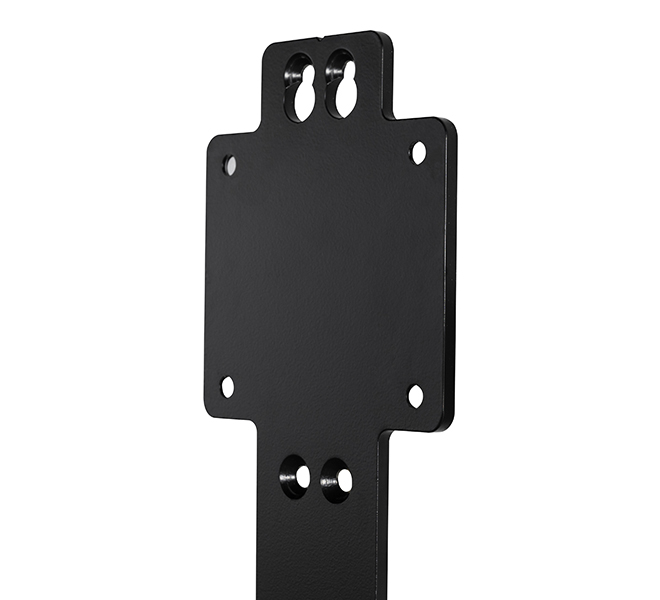

The BT8390-WFK3 is a bracket designed to fix two BT8390 mounting rails onto walls or vertical support columns, for the installation of large format displays. The bracket is ideal for reducing installation times, by eliminating the need to measure the distance between mounted rails.






  • Provides a secure fixing point for wall mounting System X installations across dual mounting rails
  • Dramatically reduces install times by eliminating the need to measure the distance between the rails
  • Suitable for concrete, brick or stud walls
  • High-end aesthetic quality
  • Must be used with two mounting rails
  • All mounting hardware included
  • Rails sold individually, see the chart in the specification tab for your required amount
  • Recommended interface arms: BT8390-VESA800F & BT8390-VESA1200F
  • Distance from wall (to front of rail): 49mm
  • Colour: Black
  • Brackets supplied (per pack): 1
  • Quantity of brackets required per rail length (landscape installs):
    Rail Length              Qty
    0 - 2000mm             2pcs
    2001 - 3500mm       3pcs
    3501 - 5500mm       4pcs
    5501 - 7750mm       5pcs
    7751 - 8500mm       6pcs

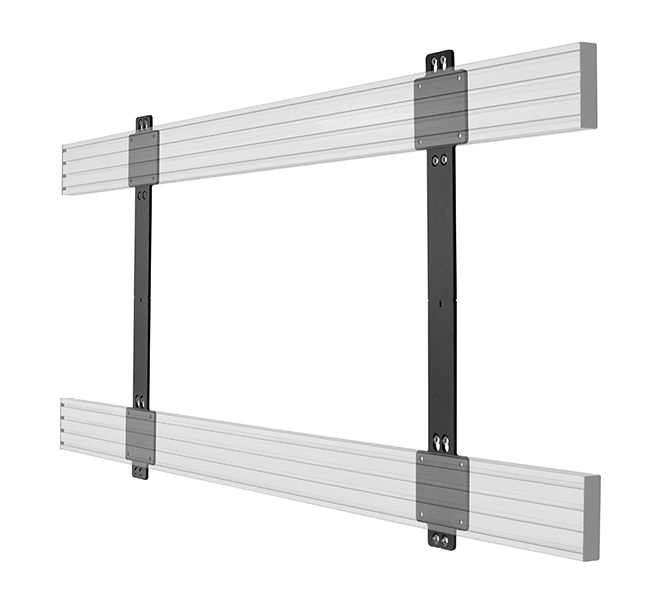

BT8390-WFK3 - System X Dual Rail Mounting Bracket - 19mm Can also be used for video wall installations that use Vertical Support Columns Dramatically reduces install times by eliminating the need to measure the distance between the rails All mounting hardware included

Product Specification Sheet (PDF)

Assembly Leaflet (PDF)

Technical Drawing (PDF)

Technical Drawing (DXF)

You must log in to view this content
