Universal Flat Screen Wall Mount

BT8422-PRO

For Extra-Large Screens



  • Designed for screens up to 80” (203cm) / 70kg (154lbs)
  • Fits screens with VESA and non-VESA mounting patterns
  • Low profile design mounts screen only 30mm (1.2”) from wall
  • Suitable for concrete / brick or up to 32” stud walls
  • Supplied in brown box packaging ideal for professional installers. Also available in colour packaging ideal for a retail enviroment, please see BT8422
  • Simple ‘hook-on’ installation with all mounting hardware included



Maximum WeightMaximum Screen Size
70kg 80"
  BT8422 - Universal Flat Screen Wall Mount for Large Screens
  • Designed for screens up to 80” (203cm) / 70kg (154lbs)
  • Suitable for screens with VESA and non-VESA fixings with universal screen mounting kit
    including M4, M5, M6 and M8 screws
  • Maximum distance between mounting holes: Vertical: 500mm (19.7”) / Horizontal: 825mm (32.5”)
  • Compatible with VESA mounting patterns:
    75mm x 75mm, 100mm x 100mm, 200mm x 100mm, 200mm x 200mm, 300mm x 200mm,
    400mm x 400mm, 600mm x 400mm, 800mm x 400mm, 800mm x 500mm
  • Low profile design mounts screen only 30mm (1.2”) from wall
  • Locking bar included for secure installation
  • Suitable for concrete / brick or up to 32” stud walls
  • Supplied in brown box packaging ideal for professional installers. Also available in colour packaging ideal for a retail enviroment, please see BT8422
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Screen Size: up to 80”
  • Max Weight: 70kg (154lbs)
  • Dist. From Wall: 30mm (1.2”)
  • Max. Dist. Between Fixings: H: 825mm (32.5”) V: 500mm (19.7”)
  • VESA compatibility:
    75 x 75, 200 x 300, 100 x 100, 300 x 300, 200 x 100, 400 x 400,
    200 x 200, 600 x 400, 300 x 200, 800 x 400, 400 x 200, 800 x 500
  • Colours Available: Black
  • Community Design Number: 001713280-0034

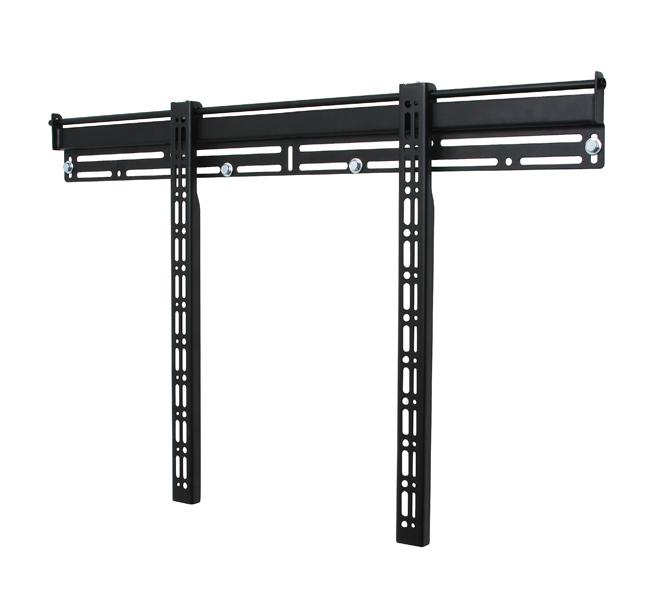

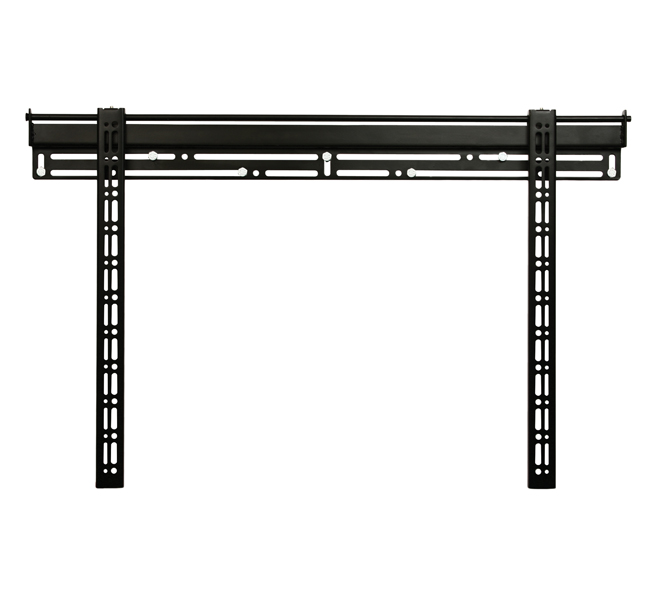

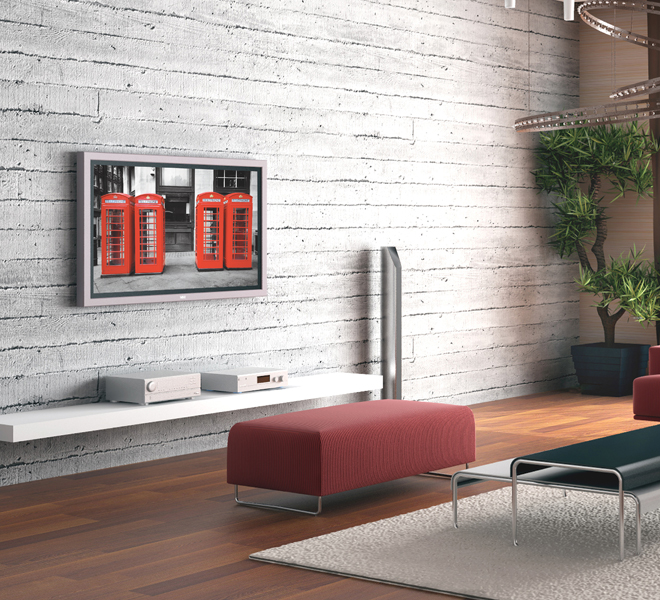

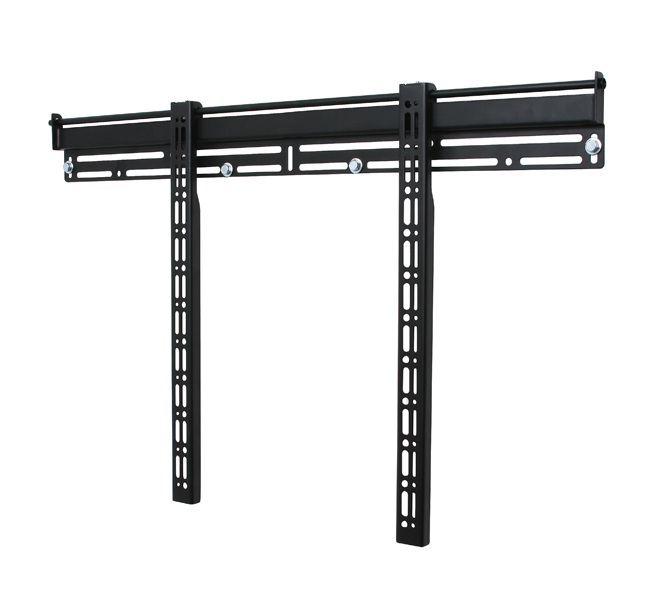

BT8422-PRO - Universal Flat Screen Wall Mount for Large Screens - Front View BT8422-PRO - Universal Flat Screen Wall Mount for Large Screens - Side View BT8422-PRO - Universal Flat Screen Wall Mount for Large Screens - Lifestyle Image
