Adjustable Drop Universal Flat Screen Ceiling Mount with Tilt

BT8427

For Extra-Large Screens



  • Designed For screens up to 65" (165cm) / 70kg
  • Universal interface fits screens with VESA and non-VESA mounting patterns

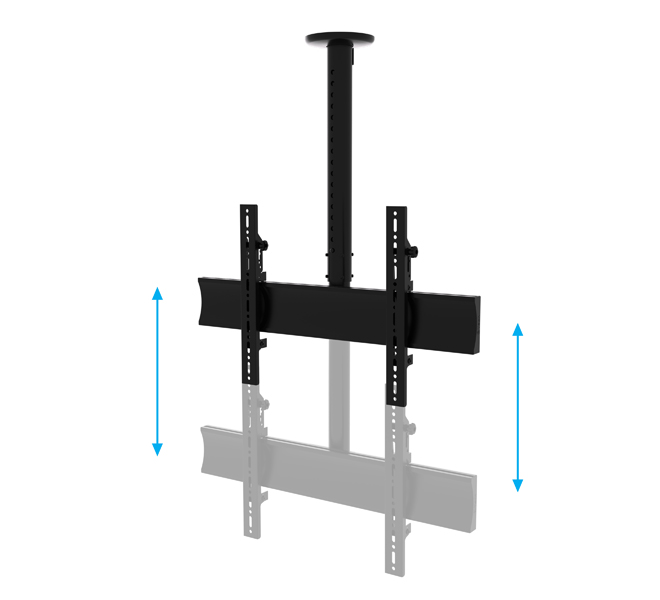

  • Ceiling drop: 658mm - 958mm
    (from ceiling to centre of interface)
  • Easy adjustment of tilt +20°
  • Pre-assembled for simple 3 step installation
  • All mounting hardware and fixings included



Maximum weightMaximum screen size
70kg (154lbs) 65" (165cm)

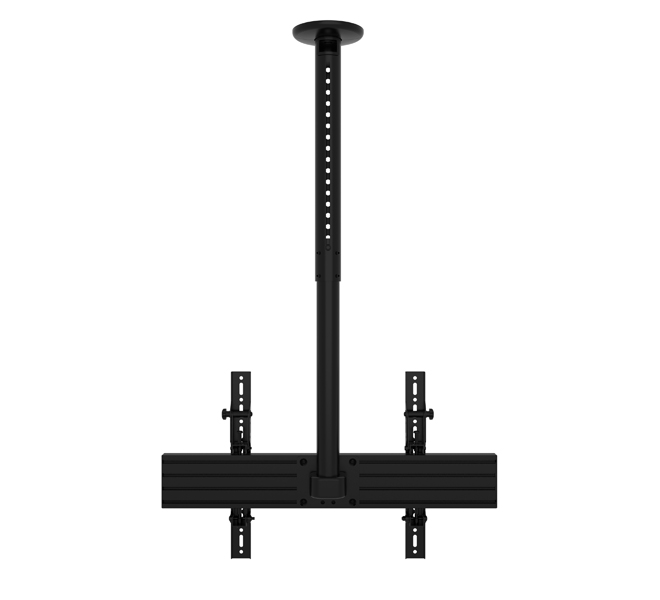

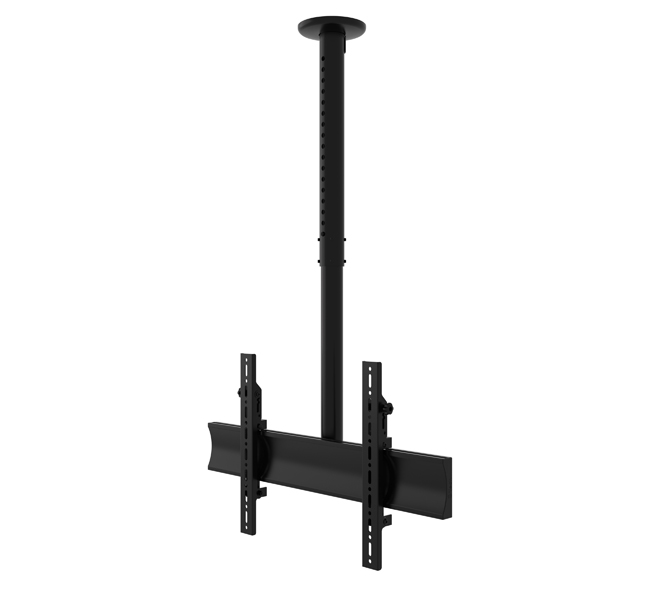

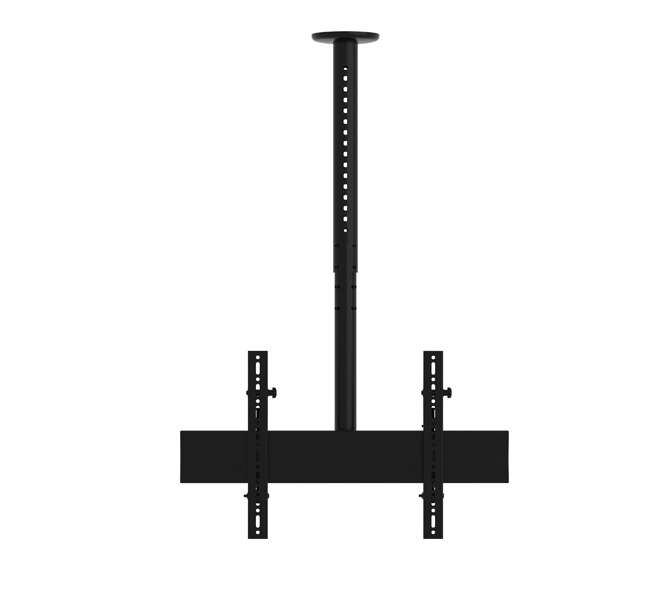

  BT8427 - Adjustable Drop Universal Flat Screen Ceiling Mount - Front View
  • Designed for screens up to 65" (165cm) / 70kg

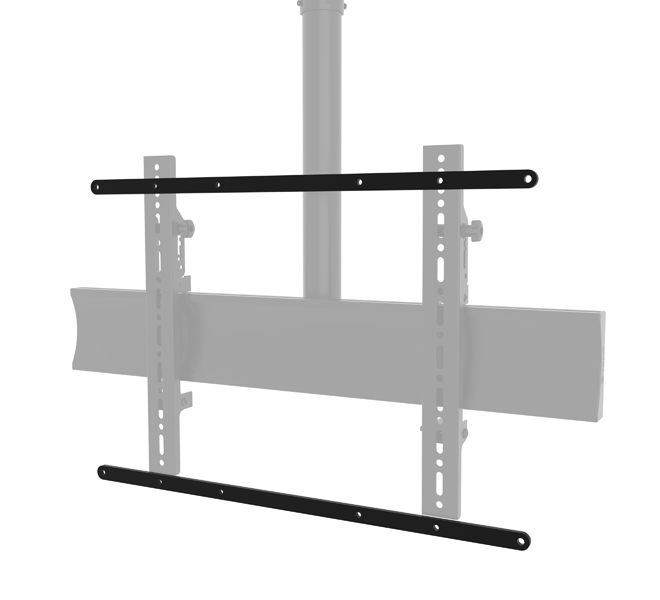

  • Fits screens with mounting patterns up to 755mm x 410mm including VESA:
    75 x 75mm, 100 x 100mm, 200 x 100mm, 200 x 200mm, 300 x 200mm, 300 x 300mm
    400 x 200m, 400 x 300mm, 400 x 400mm and 600 x 400mm
  • Ceiling drop: 658mm - 958mm
    (from ceiling to centre of interface)

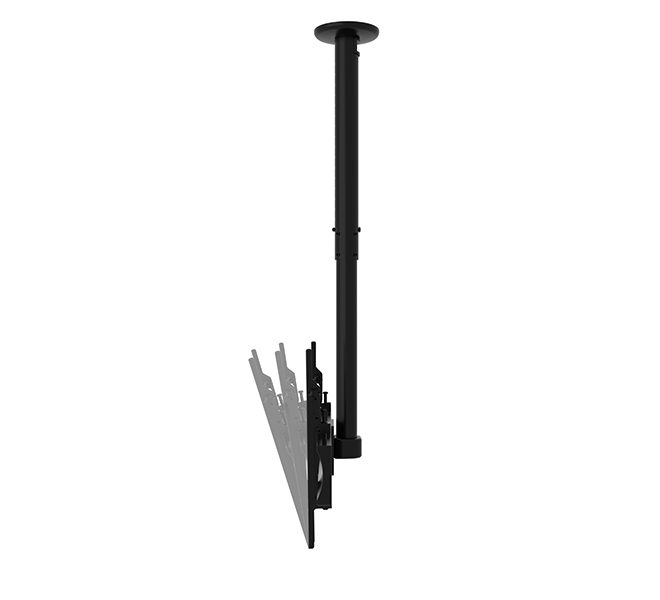

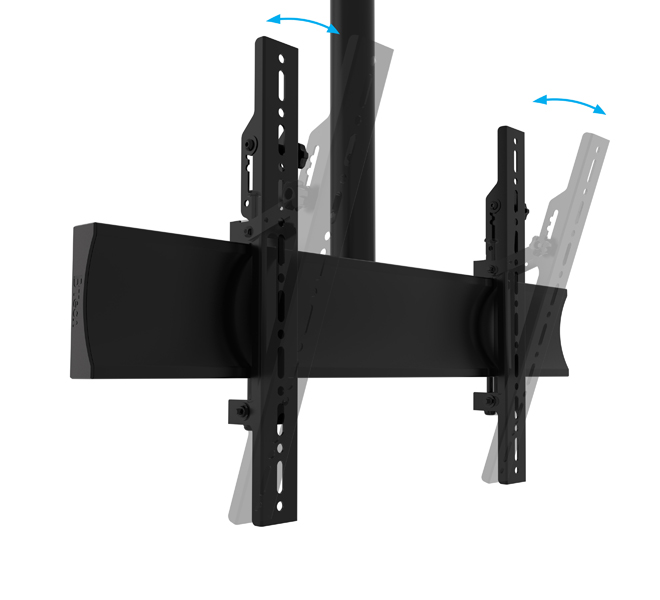

  • Easy tilt adjustment +20°
  • Integrated cable management
  • Mounts screen in landscape or portrait formats
  • Pre-assembled for simple 3 step installation
  • Universal screen fixing kit supplied, including M4, M5, M6 and M8 screws
  • All mounting hardware and fixings included
  • Screen Size: up to 65”
  • Max Weight: 70kg
  • Max Dist between Fixings: H: 282mm - 755mm V: 410mm
  • Tilt: +20°
  • Ceiling drop: 658mm - 958mm
  • (from ceiling to centre of interface)
  • VESA Compatibility:
    75 x 75, 100 x 100, 200 x 100, 200 x 200, 300 x 200,
    300 x 300, 400 x 200, 400 x 400, 600 x 400
  • Colours Available: Black

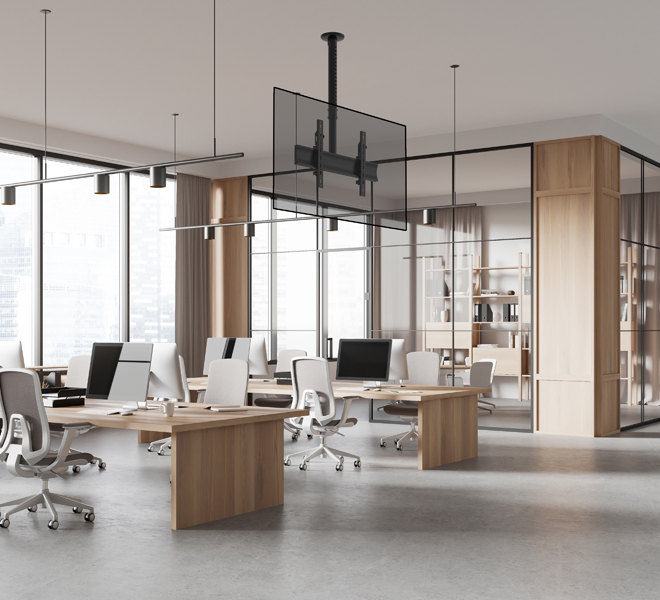

BT8427 - Adjustable Drop Universal Flat Screen Ceiling Mount - Front View BT8427 -  Adjustable Drop Universal Flat Screen Ceiling Mount - with Screen BT8427 - Adjustable Drop Universal Flat Screen Ceiling Mount - Lifestyle Image

Assembly Leaflet (PDF)

Product Specification Sheet (PDF)

BT8427 - Technical Drawing (DXF)

BT8427 - Technical Drawing (PDF)
