Extra-Large Flat Screen Display Trolley/Stand

BT8506

For Extra-Large Screens



  • Designed for extra-large screens up to 130kg (287lbs)

  • Ideal for screens larger than 65” (165cm)
    and heavy duty touch screen displays
  • Universal screen interface fits screens with VESA®
    and non-VESA® mounting patterns up to:
    H: 1100mm (43.3”) x V: 730mm (28.7”)

  • Base disassembles into three pieces for easy
    transportation

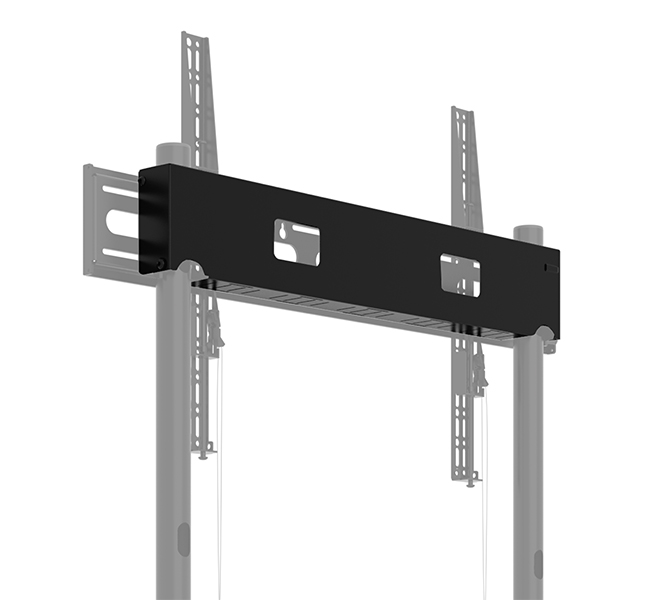

  • Interface features optional storage area for cables
    and accessories. Storage dimensions:
    W: 720mm (28.2") x H: 160mm (6.2") x D: 90mm (3.5")

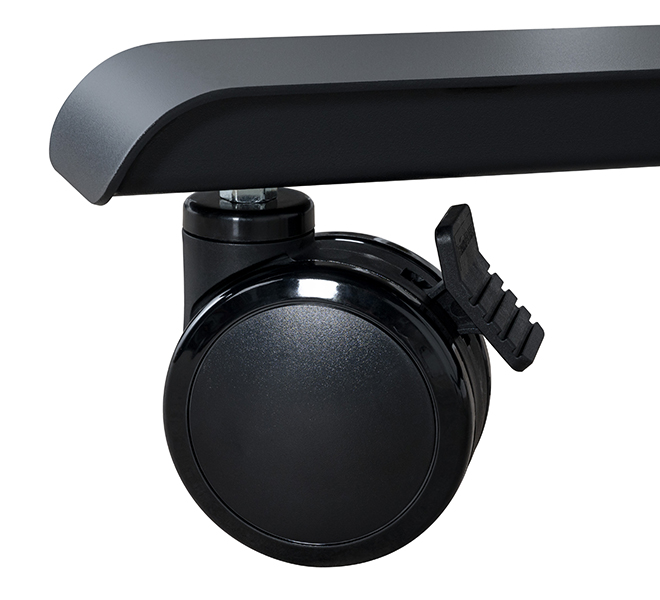

  • Non-marking 4” locking/braked castors included

  • Also supplied with optional screw in levelling feet

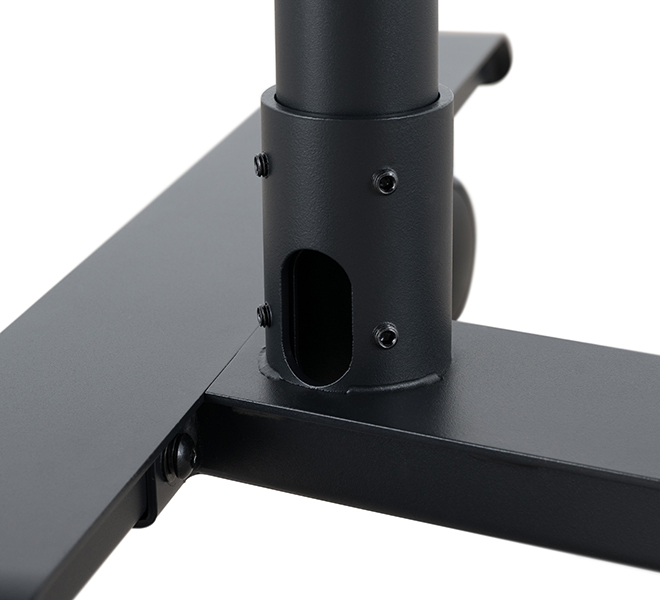

  • 1.5m Ø60mm poles supplied with 5 cable management holes

  • Trolley Dimensions (including wheels):
    H: 1670mm (65.7”) x D: 800mm (31.5”) x
    W: 1650mm (64.9”)



Maximum weight
130kg (287lbs)
  BT8506 - X-Large Flat Screen Display Trolley / Stand
  • Designed for extra-large screens up to 130kg (287lbs)

  • Ideal for screens larger than 65” (165cm)
    and heavy duty touch screen displays
  • Universal screen interface fits screens with VESA®
    and non-VESA® mounting patterns up to:
    H: 1100mm (43.3”) x V: 730mm (28.7”)

  • Base disassembles into three pieces for easy
    transportation

  • Interface features optional storage area for cables
    and accessories. Storage dimensions:
    W: 720mm (28.2") x H: 160mm (6.2") x D: 90mm (3.5")

  • Adjustment screws allow screen to be levelled
    once mounted
  • Simple ‘hook-on’ installation with all mounting
    hardware included
  • Non-marking 4” locking/braked castors included

  • Also supplied with optional screw in levelling feet

  • 1.5m Ø60mm poles supplied with 5 cable management holes

  • Trolley Dimensions (including wheels):
    W: 1650mm (64.9”) x  H: 1670mm (65.7”) x D: 800mm (31.5”)

  • Colours Available: Black Base with Chrome Poles
  • Screen size: larger than 65” (165cm)
  • Max weight: 130kg (287lbs)
  • Max dist between fixings: H: 1100mm (43.3”) x V: 730mm (28.7”)
  • Trolley dimensions (including wheels):
    W: 1650mm (64.9”) x H: 1670mm (65.7”) x D: 800mm (31.5”)
  • Optional storage area dimensions: W: 720mm (28.2") x H: 160mm (6.2") x D: 90mm (3.5")
  • VESA Compatibility: Full VESA compatibility
  • Colours Available:
    Black Base with Chrome Poles

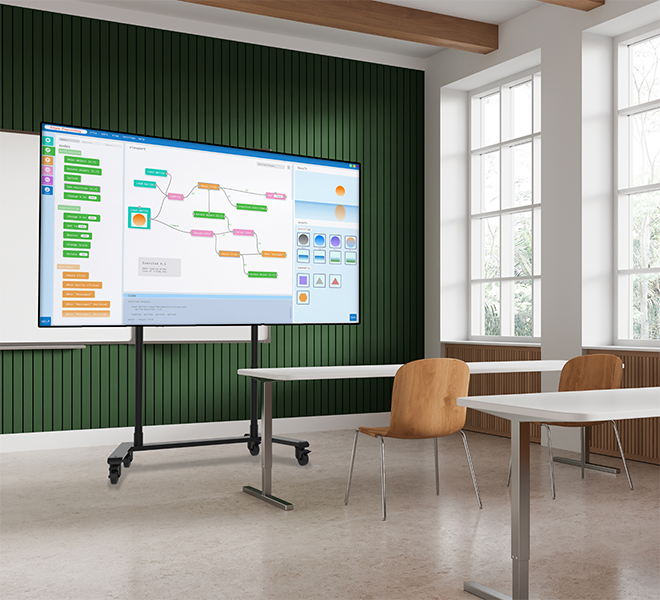

BT8506 - Extra-Large Flat Screen Display Trolley / Stand BT8506 - Extra-Large Flat Screen Display Trolley / Stand - with Screen BT8506 -Extra-Large Flat Screen Display Trolley / Stand - Storage area and integrated cable management BT8506 - Extra-Large Flat Screen Display Trolley / Stand - Base disassembles for easy transportation
