Extra-Large Flat Screen Display Stand

BT8553

For Extra-Large Screens



  • Heavy duty stylish Flat Screen Display Stand
    suitable for screens up to 65” (165cm) / 35kg (77lbs)

  • Fits screens with mounting patterns up to
    H: 825mm (32.5”) x V: 500mm (19.7”) including
    VESA patterns up to 800 x 500mm

  • Simple tilt adjustment +/-15°

  • Locking bars included for secure installation

  • Supplied with optional rubber feet for use
    when free standing

  • Available in 3 separate heights:
    BT8553-100: 1.1 Metre Poles
    BT8553-150: 1.5 Metre Poles
    BT8553-200: 2 Metre Poles
  • Colours Available:
    Black Base with Black Poles and
    Black Base with Chrome Poles



Maximum weightMaximum screen size
35kg (77lbs) 65” (165cm)
  BT8553 Extra Large Flat Screen Display Stand
  • Heavy duty stylish Flat Screen Display Stand suitable for screens
    up to 50” (165cm) / 35kg (77lbs)
  • Fits screens with mounting patterns up to H: 825mm (32.5”) x V: 500mm (19.7”) including
    VESA patterns up to 800 x 500mm
  • Simple tilt adjustment: +/-15°

  • Unique 'Torsion Tilt' mechanism

  • Locking bars included for secure installation

  • Supplied with optional rubber feet for use when free standing

  • Available in 3 separate heights:
    BT8553-100: 1.1 Metre Poles
    BT8553-150: 1.5 Metre Poles
    BT8553-200: 2 Metre Poles

  • Screen Size: up to 65” (165cm)
  • Max Weight: 35kg (77lbs)
  • Tilt: +/-15°
  • Max Dist between Fixings: H: 825mm (32.5”) x V: 500mm (19.7”)
  • VESA Compatibility:
    75 x 75mm, 100 x 100mm, 200 x 100mm, 200 x 200mm, 300 x 200mm,
    300 x 300mm, 400 x 400mm, 600 x 400mm, 800 x 400mm
  • Base steel thickness: 6mm
  • Base height: 12mm or 22mm when rubber feet are used

  • Available in 3 separate heights:
    BT8553-100: 1.1 Metre Poles
    BT8553-150: 1.5 Metre Poles
    BT8553-200: 2 Metre Poles
  • Colours Available:
    Black Base & Black Poles, Black Base & Chrome Poles

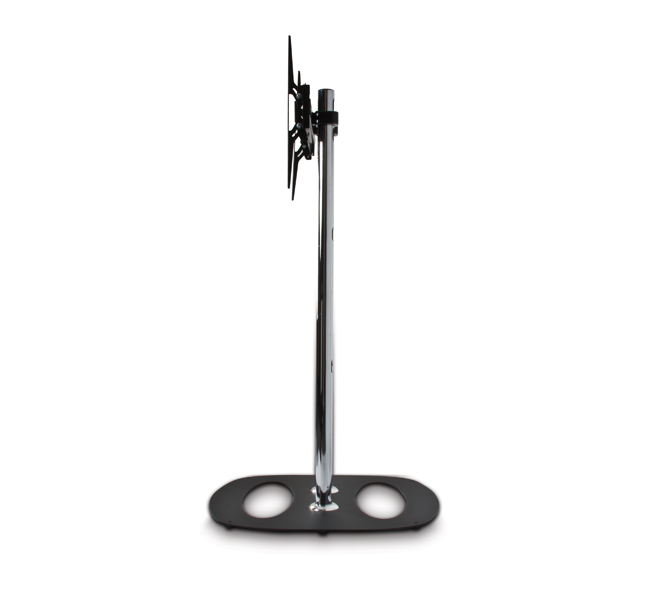

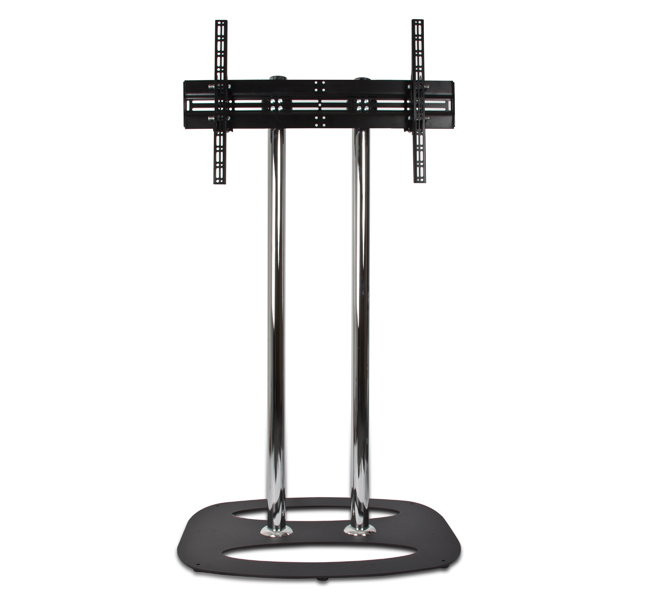

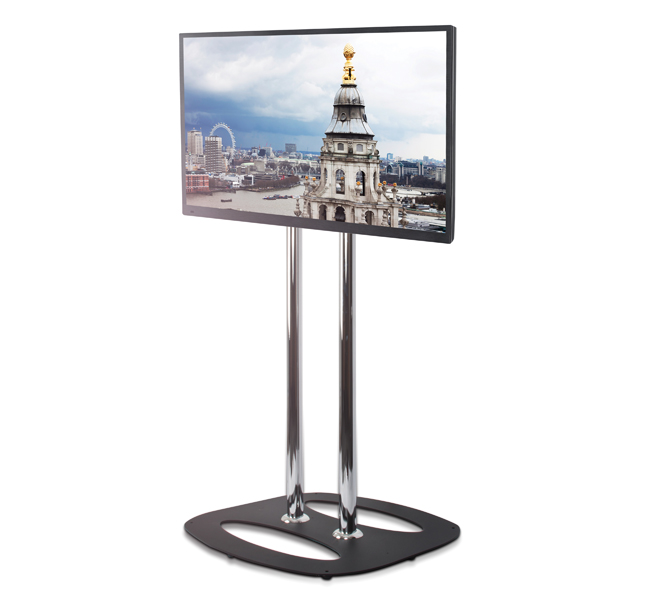

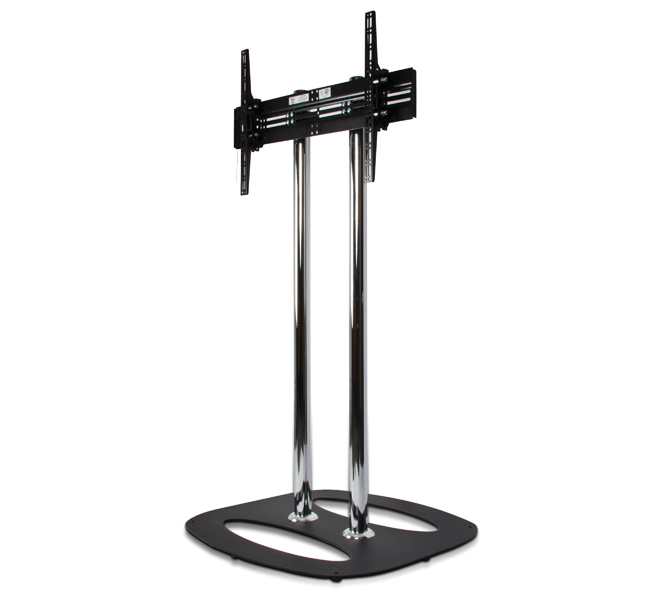

BT8553 Extra Large Flat Screen Display Stand BT8553 Extra Large Flat Screen Display Stand BT8553 Extra Large Flat Screen Display Stand - Side View BT8553 Extra Large Flat Screen Display Stand - with Screen

Product Specification Sheet (PDF)

Assembly Leaflet (PDF)
