Short Throw Projector Wall Mount with Adjustable Arm

BT884





  • Designed for Short Throw Projectors weighing up to 10kg (22lbs)
  • Features +/-20° tilt and +/-20° roll
  • Telescopic design for correct projector positioning
  • Cable management included
  • Coverplate included for smart installation
  • Maximum distance between any two fixing points: 300mm (11.8”)
  • Available in 2 lengths:

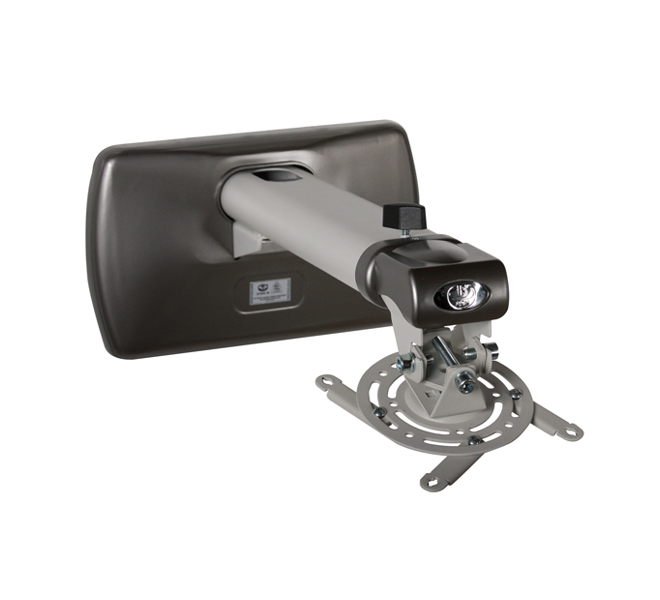

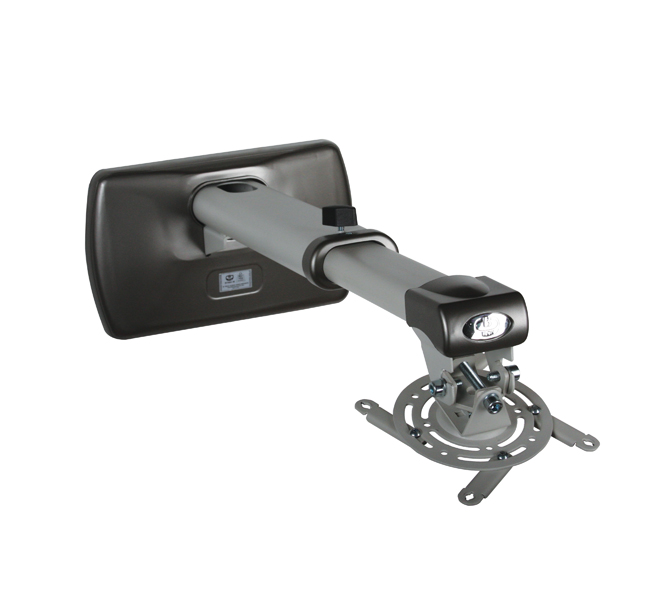

    BT884-M Adjustable arm mounts projector 400mm (15.7") - 575mm (22.6") from wall

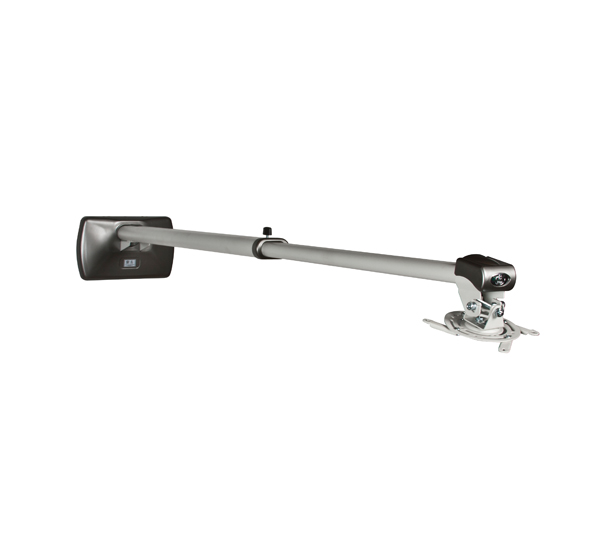

    BT884-L Adjustable arm mounts projector 880mm (34.6”) - 1510mm (59.4”) from wall



Maximum weightTilt         Roll
10kg (22lbs) +/-20° +/-20°
  BT884-M Short Throw Projector Wall Mount with Adjustable Arm
  • Designed for Short Throw Projectors weighing up to 10kg (22lbs)
  • Features +/-20° tilt and +/-20° roll
  • Telescopic design for correct projector positioning
  • Cable management included
  • Coverplate included for smart installation
  • Maximum distance between any two fixing points: 300mm (11.8”)
  • Available in 2 lengths:
    BT884-M Adjustable arm mounts projector 400mm (15.7") - 575mm (22.6") from wall
    BT884-L Adjustable arm mounts projector 880mm (34.6”) - 1510mm (59.4”) from wall
  • Max weight: 10kg (22lbs)
  • Tilt: +/-20°
  • Roll: +/-20°
  • Colours Available: White
BT884-M Short Throw Projector Wall Mount with Adjustable Arm BT884-M Short Throw Projector Wall Mount with Adjustable Arm BT884-M Short Throw Projector Wall Mount with Adjustable Arm BT884-L Short Throw Projector Wall Mount with Long Adjustable Arm

Assembly Leaflet (PDF) - BT884-M

Assembly Leaflet (PDF) - BT884-L

Product Specification Sheet (PDF)
