System X Universal Dual Stack Flat Screen Floor Stand - 1.8m

BTF841

For portrait and landscape mounting




The BTF841 is a premium mounting solution designed to mount two screens, one above the other, in either landscape or portrait orientation. A heavy duty steel base eliminates the need to bolt to the floor and adjustable levelling feet are included to accommodate uneven surfaces. The high-end aesthetic with an anodised aluminium finish and integrated cable management ensures finished installations are neat and tidy, making the BTF841 ideal for use in high-end professional or commercial applications.







  • Universal design suitable for screens in a landscape or portrait orientation
  • High-end aesthetic quality
  • Heavy duty steel base construction provides stability, eliminating the need to bolt to the floor
  • Can also be bolted to the floor to help prevent unauthorised relocation of the display(s)

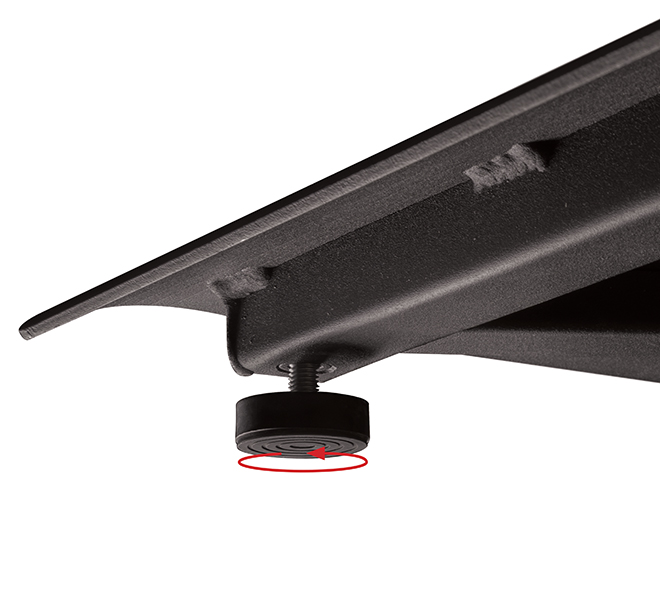

  • Supplied with adjustable levelling feet to accommodate uneven floor surfaces
  • Arms feature levelling screws to adjust the screen height

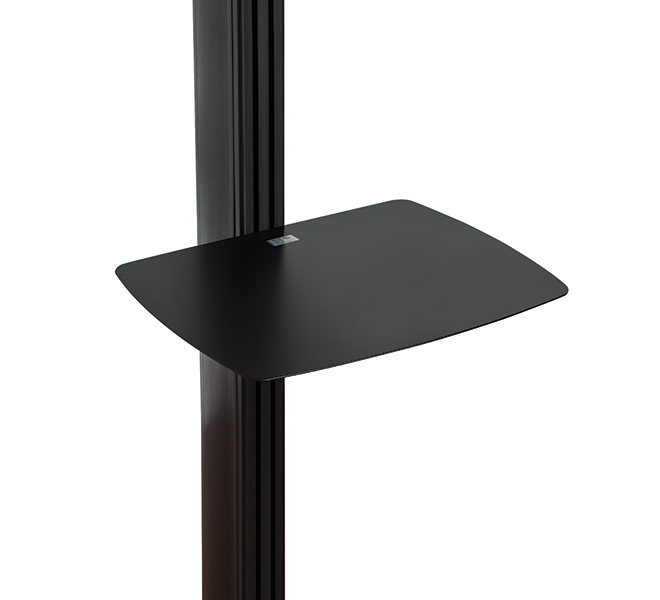

  • Collar compatible accessories such as shelves (available separately) can be fitted directly to the column

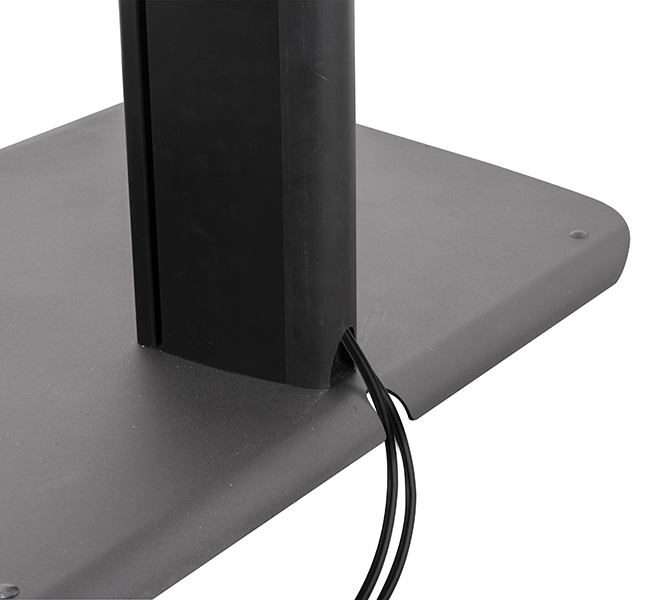

  • Integrated cable management for a neat and tidy installation
  • Safety screws help prevent unauthorised screen removal
  • Simple ‘hook-on’ screen installation
  • All mounting hardware included
  • Recommended screen size (landscape orientation): 32" to 65"
  • Recommended screen size (portrait orientation): 32" to 46"
  • Max load: 35kg (per screen)

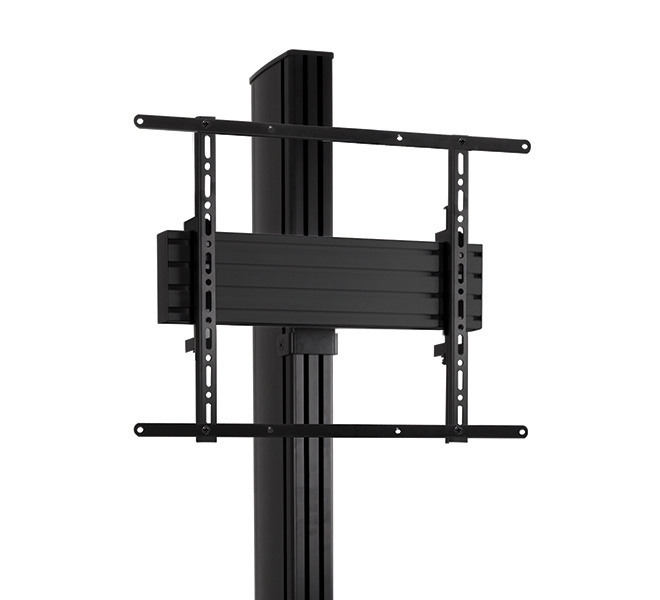

  • VESA® & non-VESA fixings (as standard): up to 430 x 400mm*
  • VESA® & non-VESA fixings (with included adaptors): up to 600 x 400mm*
  • Dimensions: W: 890mm H: 1841mm D: 604mm
  • Colour (Column and Rails): Black or Silver
  • Colour (Base and Arms): Black

    *As standard the maximum fixing dimension is 400mm. Increase the horizontal fixing
     to 600mm using the included interface adaptor arms.
System X™ Universal Dual Stack Flat Screen Floor Stand - 1.8M Maximum VESA fixing can be increased to 600mm using the included  adapter arms Supplied with adjustable levelling feet to accommodate uneven floor surfaces Collar compatible accessories such as shelves (available separately) can be fitted directly to the column

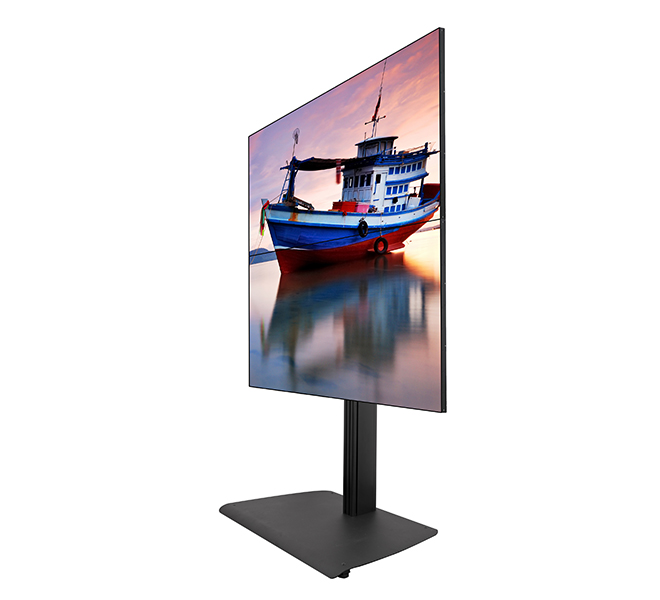

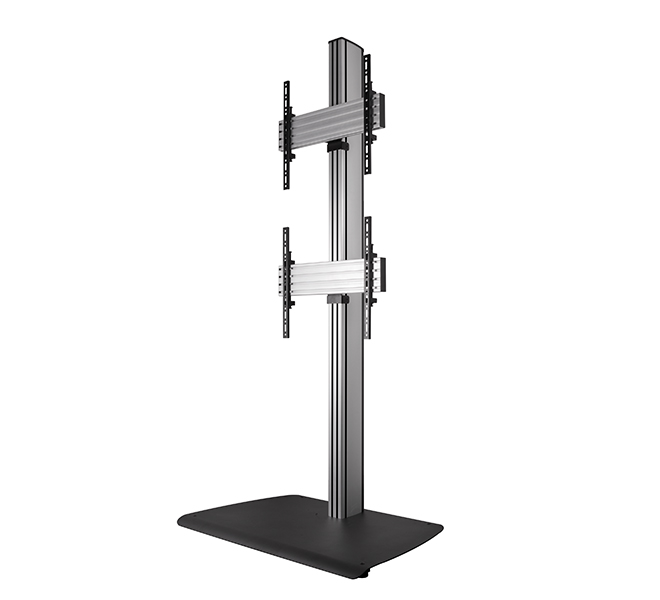

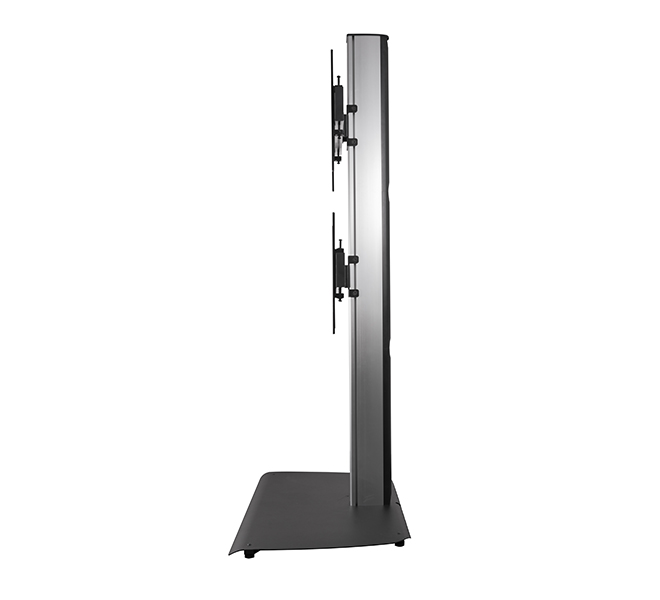

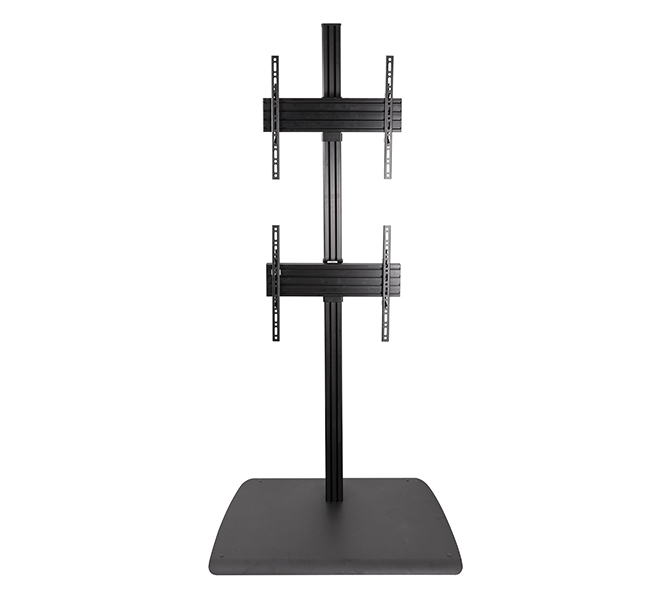

Integrated cable management for a neat and tidy finish BTF841 - Front View (Available in Black) BTF841 - Side View BTF841 - With Screens

Product Specification Sheet (PDF)

Technical Drawing (PDF)

Technical Drawing (DXF)
