System X Universal Twin Screen VC Stand - 1.8m

BTF845

For large screens




The BTF845 is a premium mounting solution designed to mount two screens side by side for video conferencing applications. A heavy duty steel base eliminates the need to bolt to the floor and adjustable levelling feet are included to accommodate uneven surfaces. The high-end aesthetic with an anodised aluminium finish and integrated cable management ensures finished installations are neat and tidy, making the BTF845 ideal for use in corporate environments.






  • Universal design suitable for two screens mounted side by side
  • High-end aesthetic quality
  • Includes VC shelf which can be fixed above or below the screens
  • Heavy duty steel base construction provides stability, eliminating the need to bolt to the floor
  • Can also be bolted to the floor to help prevent unauthorised relocation of the display(s)
  • Supplied with adjustable levelling feet to accommodate uneven floor surfaces
  • Arms feature levelling screws to adjust the screen height
  • Collar compatible accessories such as shelves (available separately) can be fitted directly to the column
  • Integrated cable management for a neat and tidy installation
  • Safety screws help prevent unauthorised screen removal
  • Simple ‘hook-on’ screen installation
  • All mounting hardware included
  • Recommended screen size 47" - 55"*
  • Max load 25kg (per screen)
  • VESA® & non-VESA fixings (as standard) up to 400mm**
  • VESA® & non-VESA fixings (with included adaptors) up to 600 x 400mm**
  • Dimensions W: 1754mm H: 1841mm D: 604mm
  • Colour (column): Black or Silver
  • Colour (rail): Silver
  • Colour (base & arms) Black

    *Please note the maximum compatible screen width is 1318mm.

    **As standard the maximum fixing dimension is 400mm. Increase the horizontal fixing to 600mm using the included interface adaptor arms

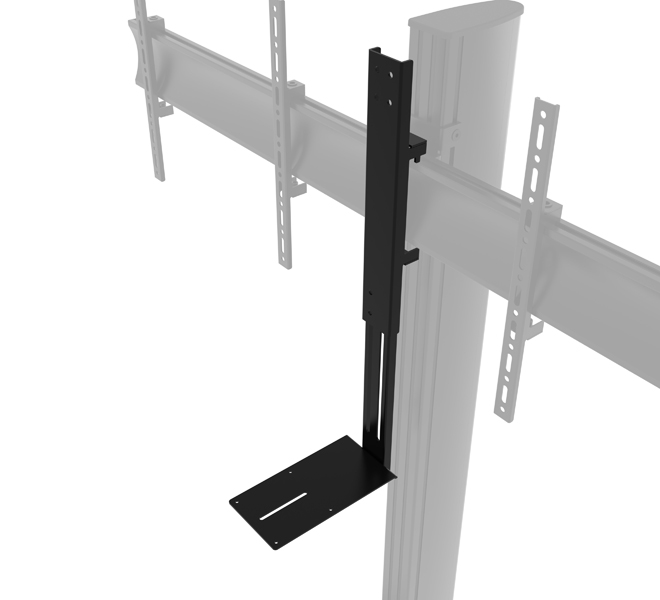

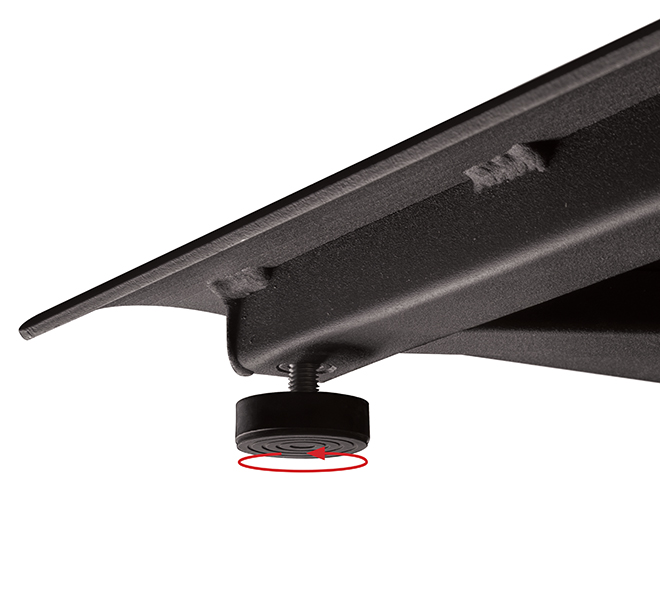

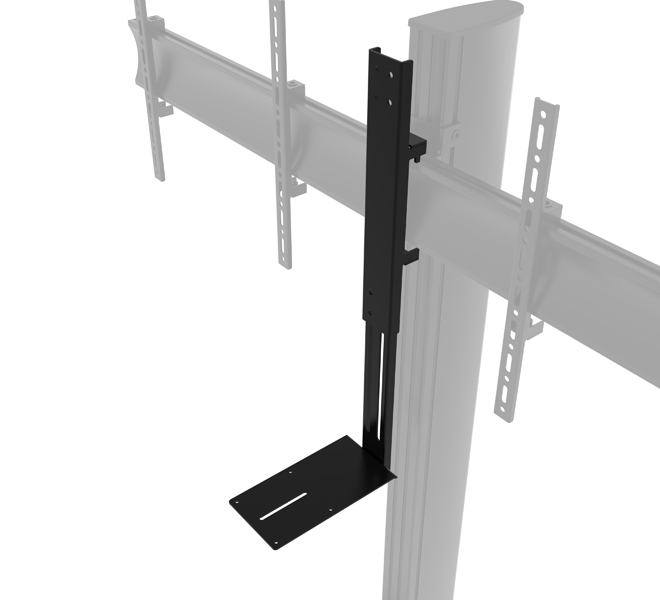

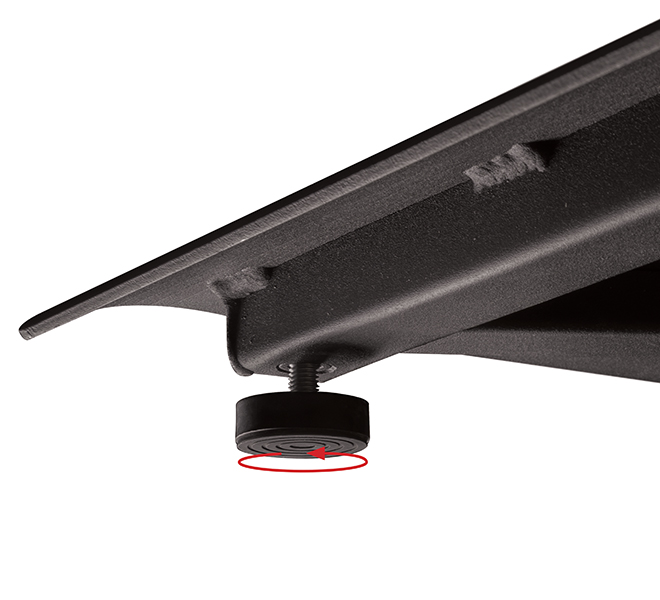

System X™ Universal Twin Screen VC Stand - 1.8m Maximum VESA fixing can be increased to 600mm using the included adapter arms Supplied with adjustable levelling feet to accommodate uneven floor surfaces Includes VC shelf which can be fixed above or below the screens (VC camera sold separately)

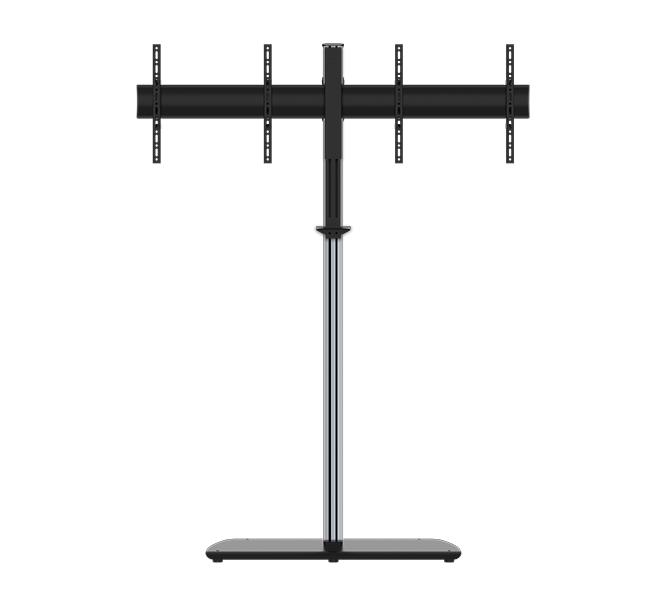

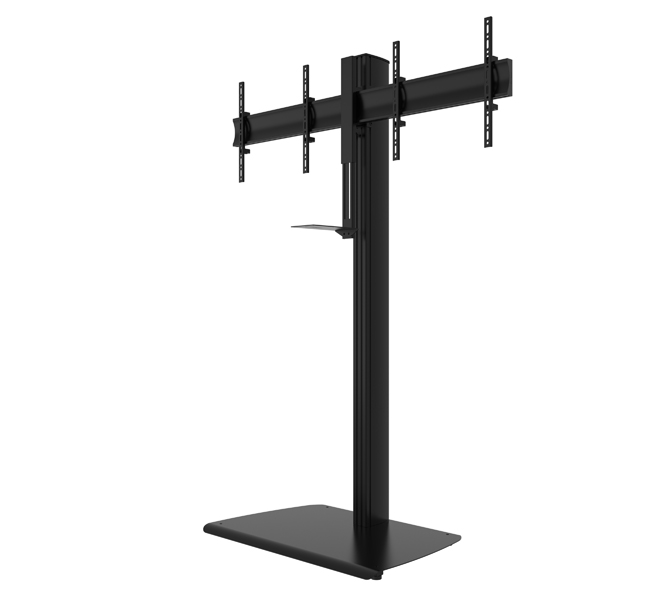

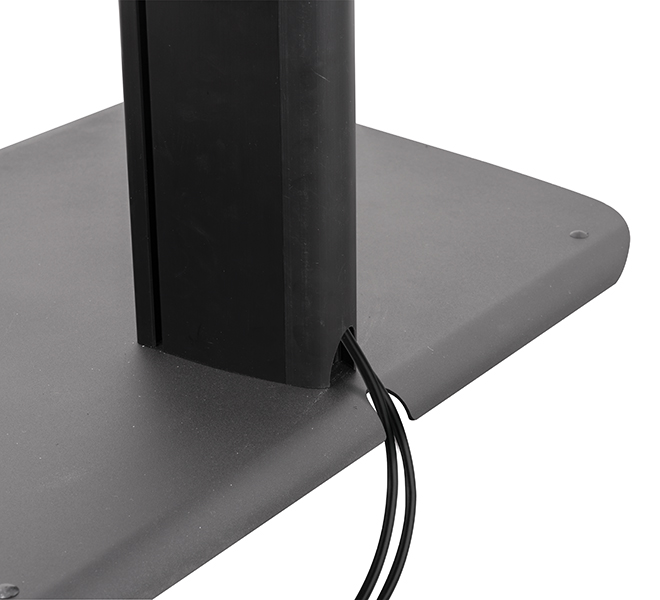

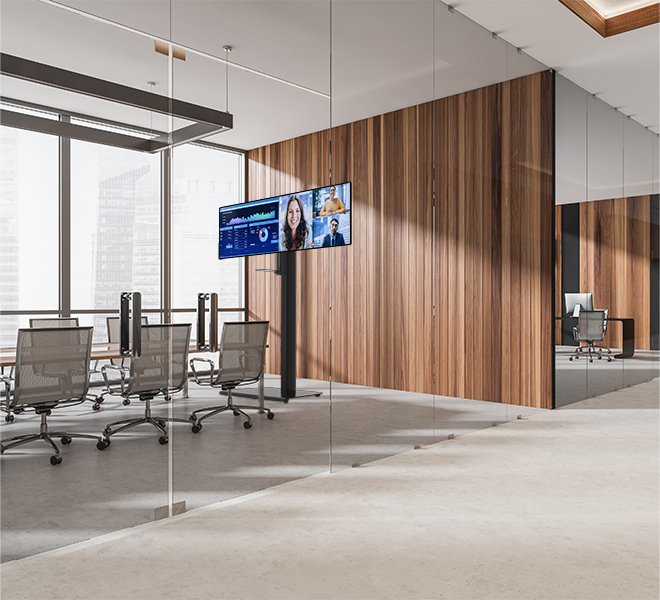

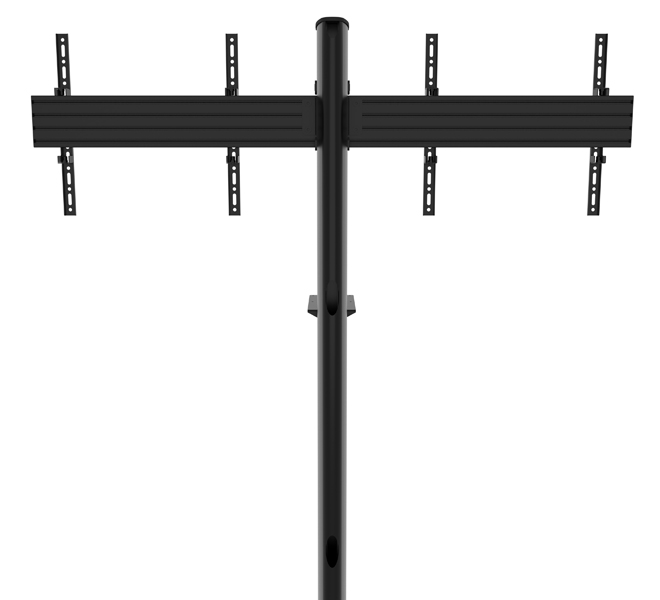

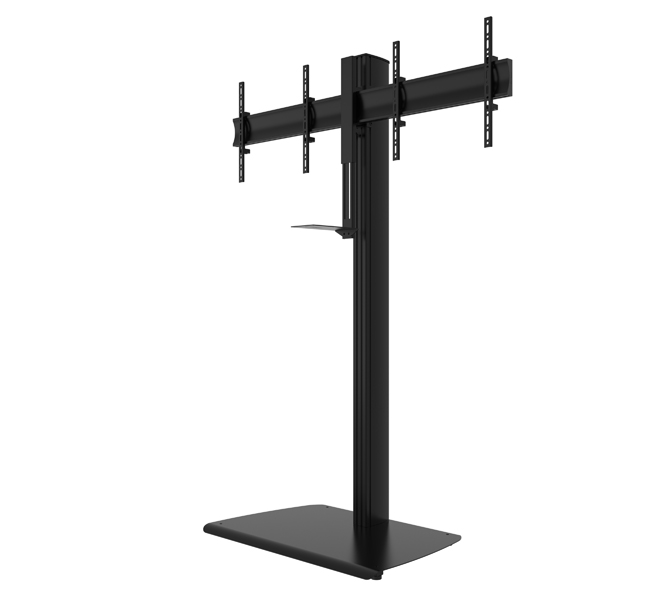

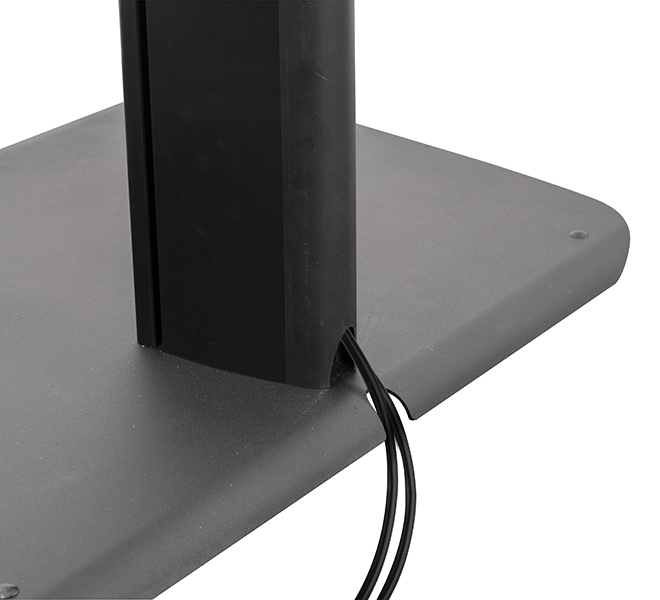

Integrated cable management for a neat and tidy installation BTF845 - Front View (Available in Black) Arms feature levelling screws to adjust the screen height BTF845 - With Screens

Product Specification Sheet (PDF)

Assembly Leaflet (PDF)

Technical Drawing (PDF)

Technical Drawing (DXF)
