System X™ Ultra-Stretch Signage Mount

BT9905

For LG 86BH5C




BT9905 is a System X mounting solution that is ideal for landscape mounting LG's 86BH5C Ultra Stretch Signage to a wall. At a depth of just 47mm, the finished install is close to the wall but still allows enough room for easy access to connectors. Safety screws come as standard to help prevent unauthorised removal of the screen and height adjustment screws allow the screen to be levelled perfectly after installation.







BT9905 - System X Ultra Stretch Signage Mount

  • Designed for use with the LG 86BH5C 86", 58:9 Ultra-Stretch Signage
  • Arms feature levelling screws to adjust the screen height
  • Pole mounted version for ceiling and floor mounting is available on request
  • Safety screws help prevent unauthorised removal of screens
  • High end aesthetic quality with stylish end caps for a neat and tidy install
  • Portrait mounted solution also available, please see BT9906
  • All mounting hardware included
  • Recommended screen size: 86" (218.4cm)
  • Max load: 50kg (110lbs)
  • Max VESA® fixings: 600mm x 200mm
  • Distance from wall: 47mm (1.8")
  • Dimensions: L: 504mm (19.84") x H: 620mm (24.4") x D: 47mm (1.85")
  • Colour (horizontal rail): Black or Silver
  • Colour (interface arms): Black

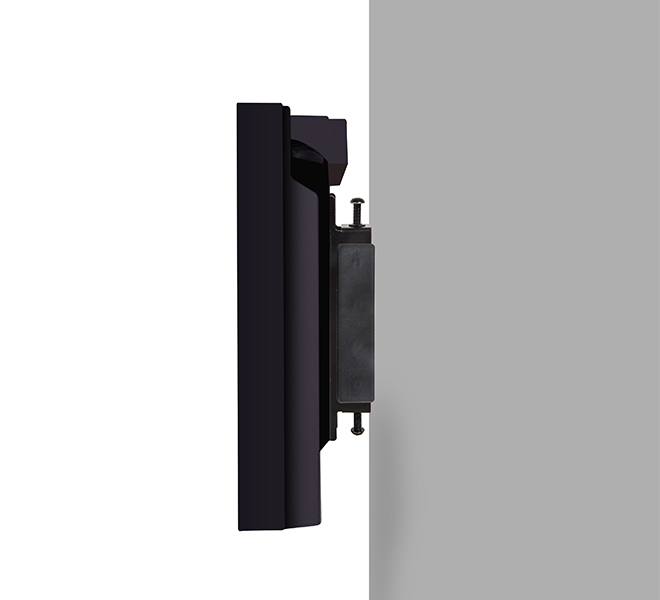

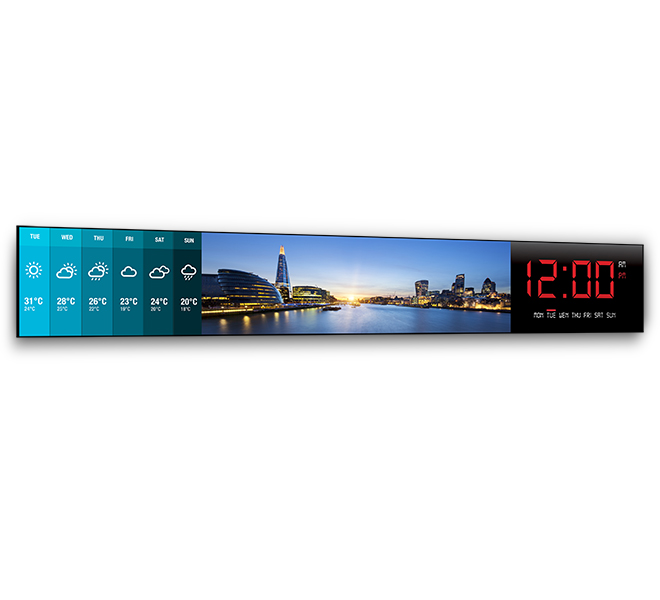

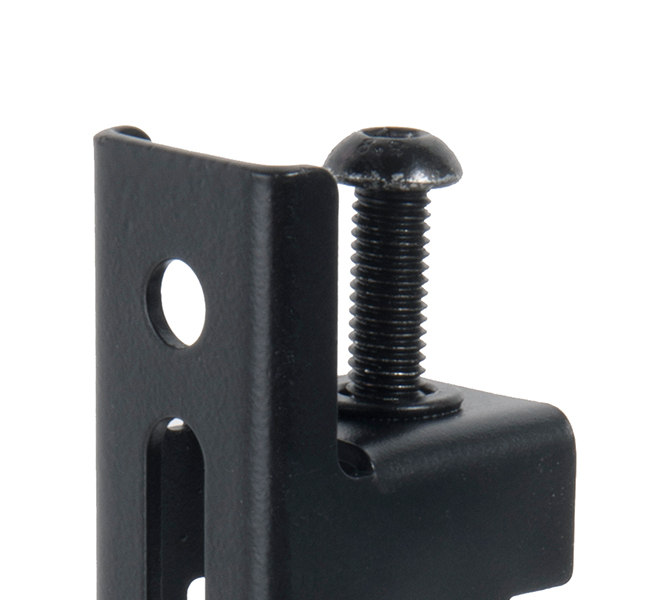

BT9905 - System X Ultra Stretch Signage Mount BT9905 - System X Ultra Stretch Signage Mount - Ideal for LG's 86BH5C Ultra Strech Signage BT9905 - System X Ultra Stretch Signage Mount - Mounts the screen just 45mm from the wall BT9905 - System X Ultra Stretch Signage Mount - Arms feature levelling screws to adjust the height

Specification Sheet

Specification Sheet (PDF)



Installation Guide

Installation Guide (PDF)
