Universal Soundbar Mount

BTV914






Designed to mount a soundbar directly to your flat screen display. The BTV914 can mount the speaker above or below the screen and features universal low profile arms which support most types of soundbars up to 10kg. The mount can be easily positioned for a neat and simple space saving installation. All fixings and mounting hardware is supplied.





  Ventry™ Universal Soundbar Mount
  • Ideal solution for mounting a soundbar speaker to your flat screen TV

  • Universal mount suitable for most soundbars and flat screens

  • Mounts soundbar above or below the screen

  • Suitable for corner installations with an articulated mount

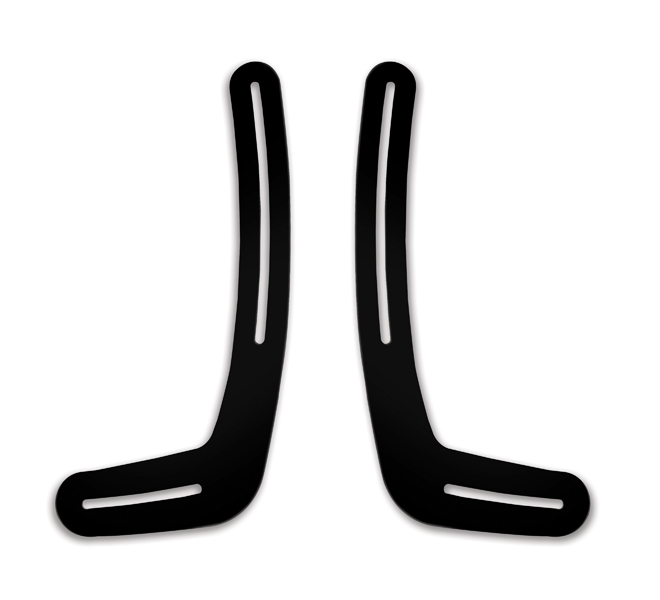

  • Low profile steel brackets keep the depth of the mount to a minimum

  • Height and width can be adjusted to suit the mounted device

  • Compatible with SONOS® Playbar

  • Max load: 10kg (22lbs)
  • Steel thickness: 2mm (0.07")
  • Height adjustment: 250mm (9.4")
  • Lateral adjustment: 112mm (4.4")

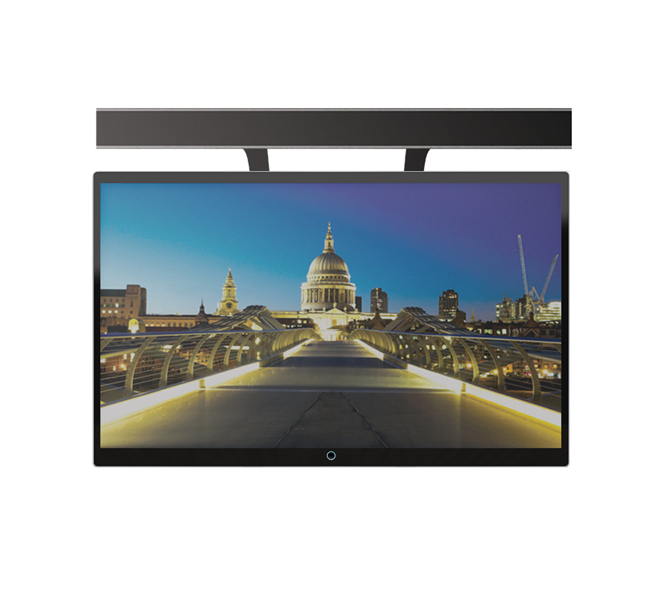

Ventry™ Universal Soundbar Mount Ventry™ Universal Soundbar Mount - Mounted above Screen Ventry™ Universal Soundbar Mount - In use with BT7515 Double Arm Wall Mount BTV914 - Lifestyle Image

Specification Sheet

Specification Sheet (PDF) - English

Fiche de Spécifications (PDF) - Français

Especificationes Technicas (PDF) - Español



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (DXF)
