Ceiling Mount With Tilt


For Ø38mm Poles

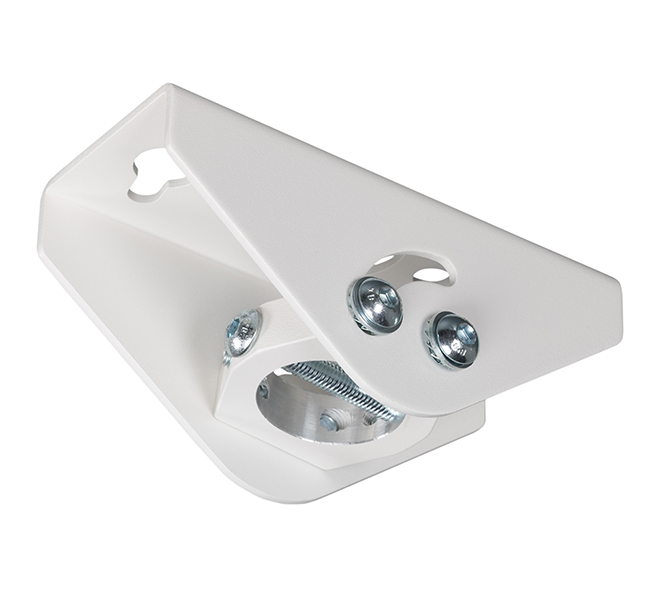

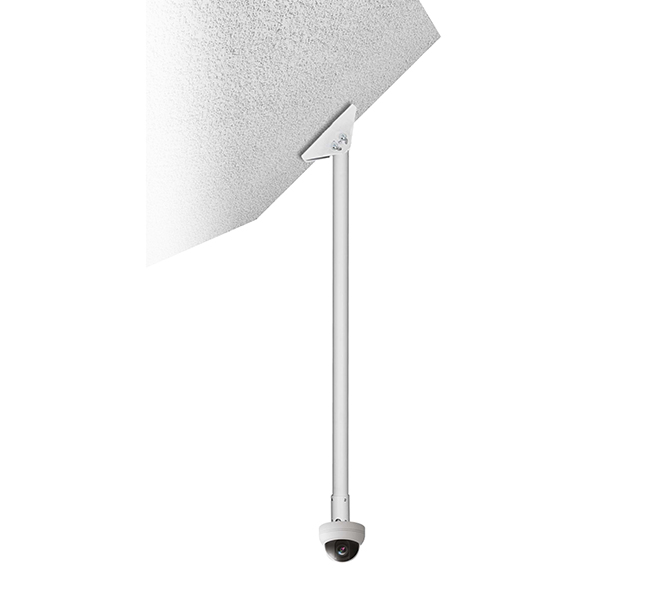

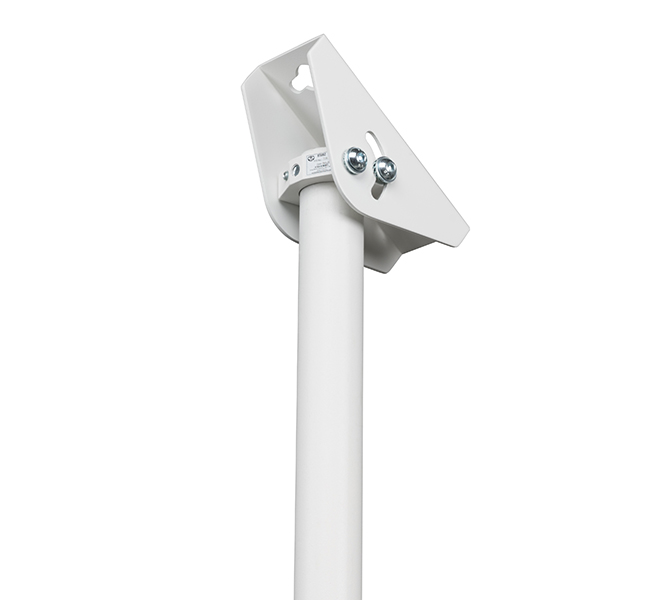

The BT5921 is a ceiling mount from B-Tech’s System V Range; a collection of components designed for the installation of security and other ceiling AV mounted equipment. Designed to mount Ø38mm poles, the BT5921 features an adjustable tilt mechanism making it ideal for mounting to flat or angled ceilings and with a tilt range of up to 90° it also allows wall mounted installations if required.



  • Designed to mount a BT5935 Ø38mm pole to the ceiling or wall
  • Tilt function suitable for angled ceilings
  • Allows poles to be mounted on to walls in horizontal or vertical configurations

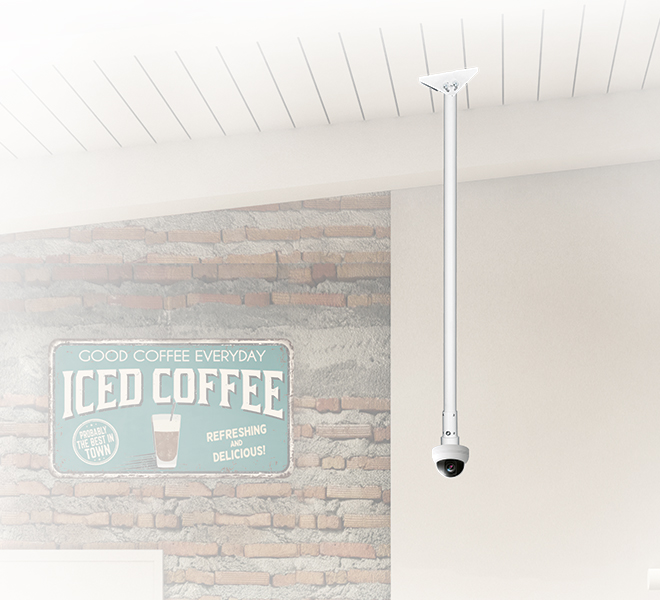

  • Ideal for mounting CCTV dome characters and/or small flat screens
  • Keyhole fixing for easy ‘hook-on’ installation
  • Integrated cable management
  • Max load when mounting on one side of the pole: 25kg (55lbs)
  • Max load when mounting on both sides of the pole: 50kg (110")
  • Total max load: 75kg (165")
  • Tilt: +90°
  • Colour: White

Product Specification Sheets

Specification Sheet - English (PDF)


Installation Guide

Installation Guide (PDF)


Technical Drawings

Technical Drawing (PDF)
