Heavy Duty Ceiling / Floor Mount


For Ø50mm Poles


Made from heavy duty 6mm thick steel, the BT7822 is a robust mounting solution designed to mount Ø50mm poles to the floor or ceiling. Capable of supporting heavy loads, it is the ideal solution for ceiling mounted flat screen or projector installs, ranging from basic setups to complex installations that feature multiple screens or AV components.


TUV Logo




BT7822 Heavy Duty Floor / Ceiling for 50mm poles


  • Can be used to mount a Ø50mm pole to the ceiling or to the floor
  • Heavy duty steel capable of supporting substantial loads
  • Multiple grub screws allow micro-adjustment of the pole to ensure a perfectly angled drop,
    even with heavy loads attached
  • Integrated cable management through the top or side of the mount
  • Includes cover plate for a neat and tidy installation
  • Max Load: 150kg (330.7lbs)*
  • Elevation / drop: 141mm (5.5")
  • Plate diameter: 150mm (5.9") (without cover)

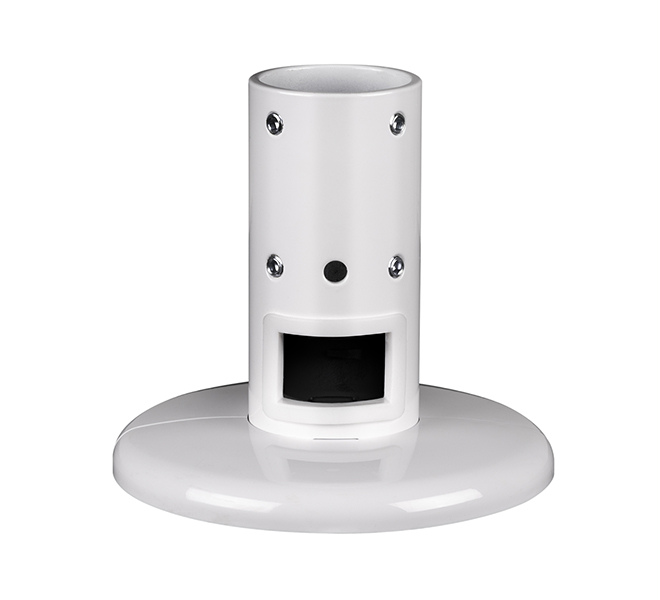

  • Colour: Black, White or Chrome

    *Max load can be increased when used as part of a floor to ceiling installation

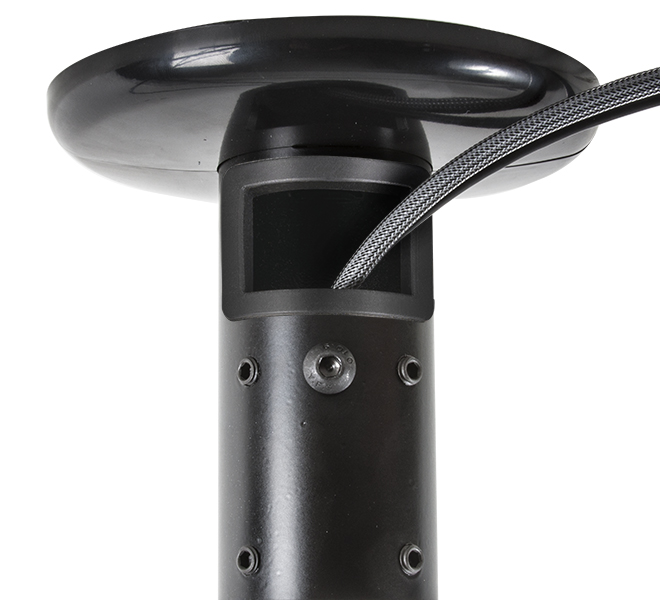

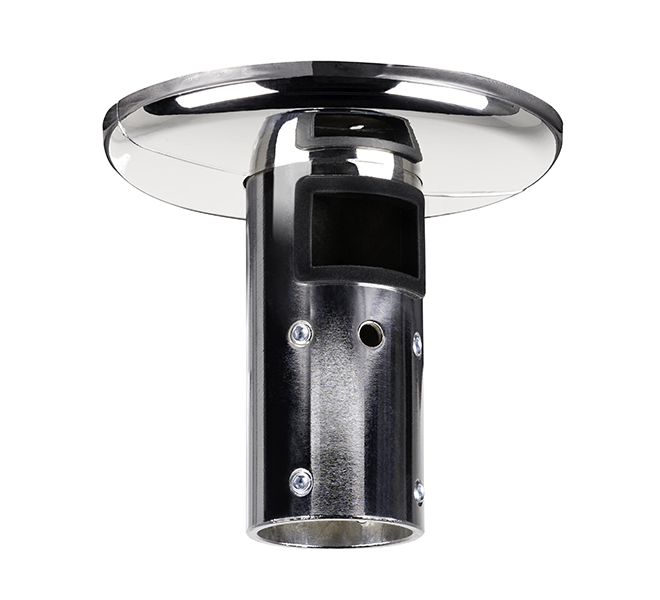

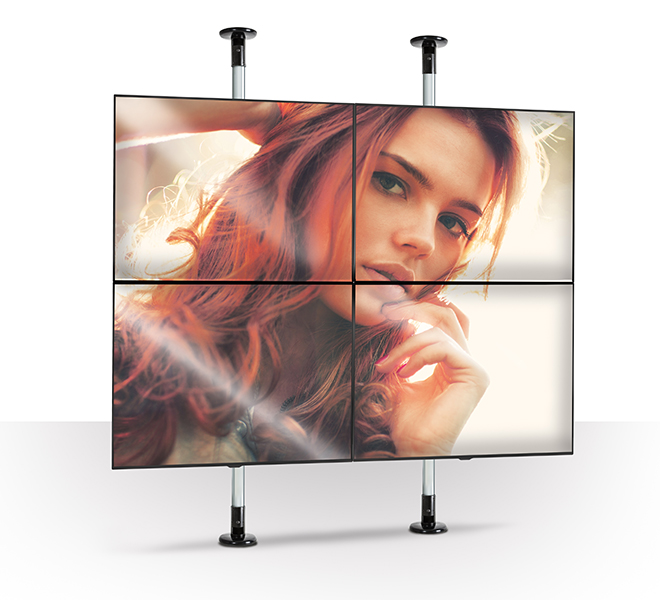

BT7822 Heavy Duty Floor / Ceiling for For use with Ø50mm Poles BT7822 - Also available in Chrome BT7822 - Integrated cable management to hide unsightly cables BT7822 - Ideal for creating multi-screen pole mounted installations

Specification Sheet

Specification Sheet (PDF)

Specification Sheet - US Letter (PDF)


Installation Guide

Installation Guide (PDF)


Technical Drawing

Technical Drawing (PDF)
