Pop-Out Flat Screen Wall Mount

BT8308

 Ideal for mounting into recessed walls




The BT8308 is designed for the installation of small to medium flat screens into recessed walls. The pop-out mechanism allows for a neat and tidy, flush to the wall installation, while still allowing access to the rear of the screen for easy installation and service access. BT8308 also allows screens to be mounted in landscape or portrait orientation and is also compatible with B-Tech's professional pole and collar system for pole mounted installs if required.





   BT8308 - Pop-Out Flat Screen Wall Mount
  • Perfect solution for mounting screens into a recessed wall
  • Push to open / push to close system provides quick and easy service access
  • Suitable for landscape or portrait screen mounting
  • Suitable for both wall or pole mounting
  • Keyhole mounting for quick and easy installation
  • Levelling screws allow adjustment of screen height
  • Integrated locking mechanism prevents accidental pop-out of mount
  • Integrated cable management
  • 'Hook-on' installation with all mounting hardware included
  • Recommended screen size: up to 42" (107")
  • Max load: 25kg (55lbs)
  • VESA® & non-VESA fixings: 75 x75 up to 200 x 200
  • Flat to wall depth: 58mm (2.3") (+/-5mm (0.2"))
  • Popped out depth: 175mm (6.9") (+/-5mm (0.2"))
  • Screen height adjustment: +12mm (0.5")
  • Colour: Black

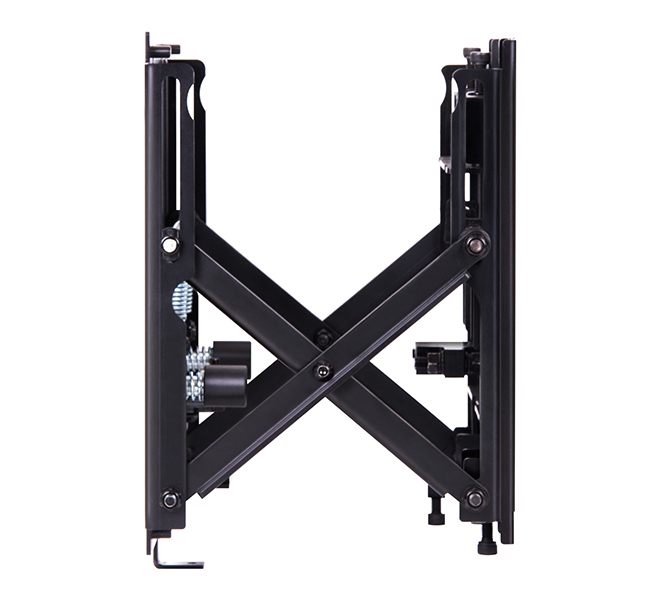

BT8308 - Pop-Out Flat Screen Wall Mount BT8308 - Push to open / push to close system provides quick and easy service access

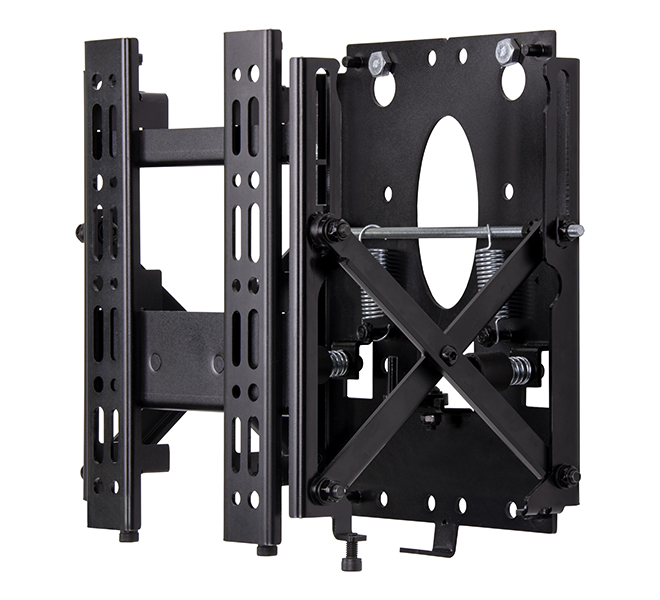

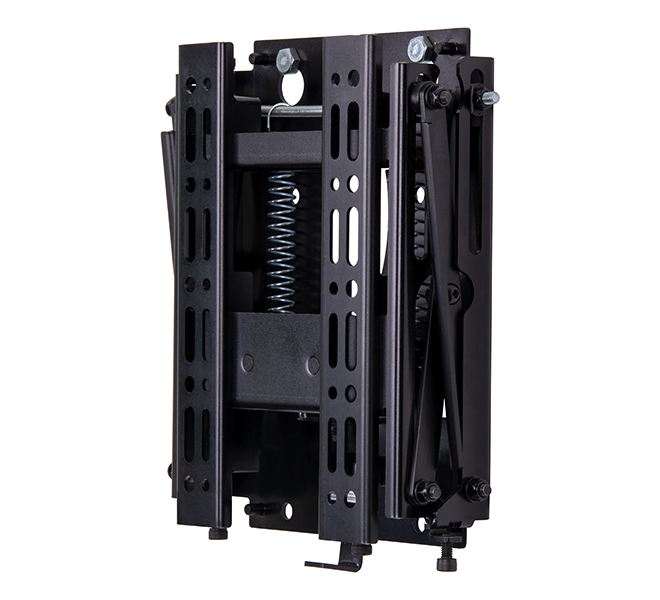

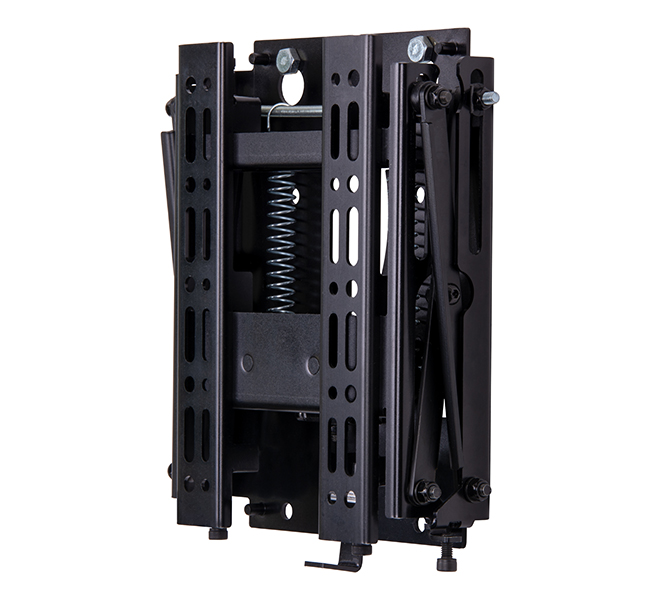

BT8308 - Pop-Out Flat Screen Wall Mount

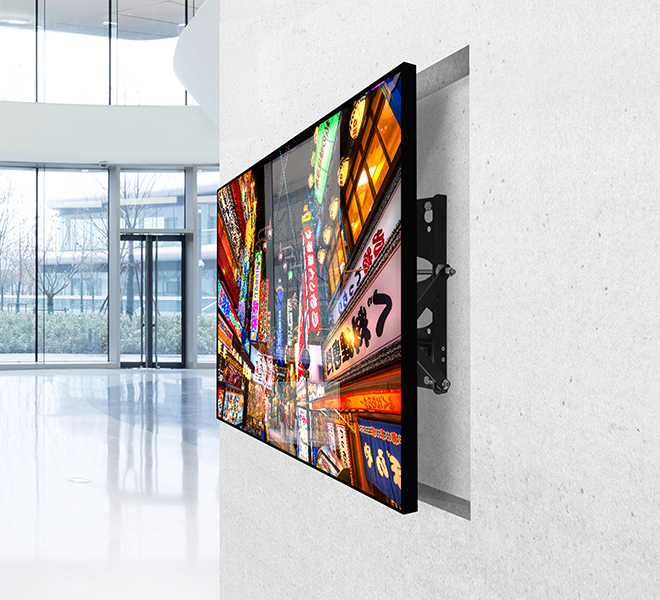

 BT8308 - Perfect solution for mounting screens into a recessed wall
