System X™ Angle Adjustment Connector

BT8390-AAC

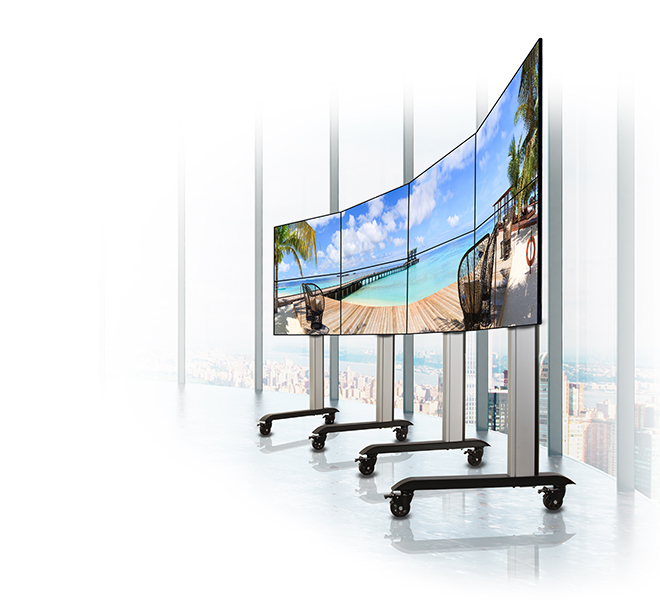

 Ideal for Curved Installations

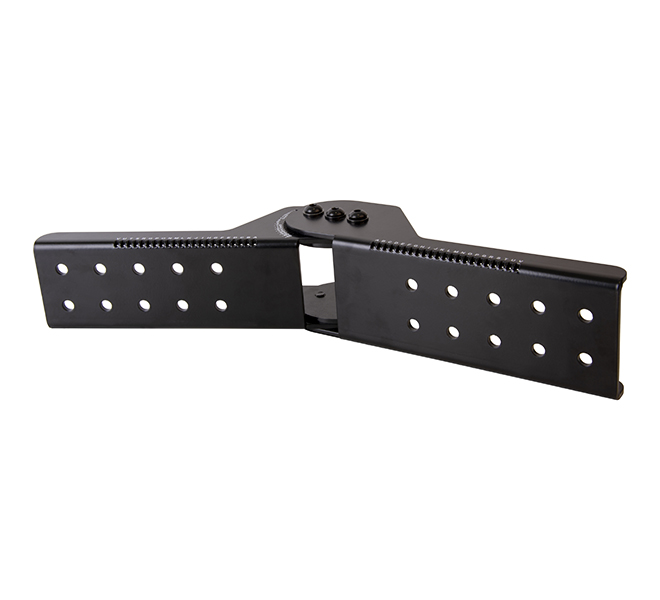

The BT8390-AAC is a connector that allows System X mounting rails to be joined together with an adjustable angle from -45° to +45°. This enables a solid, stable installation of curved multi-screen displays such as videowalls and menu boards and facilitates an installation process which is both quick and simple, aided by integrated angle guides.

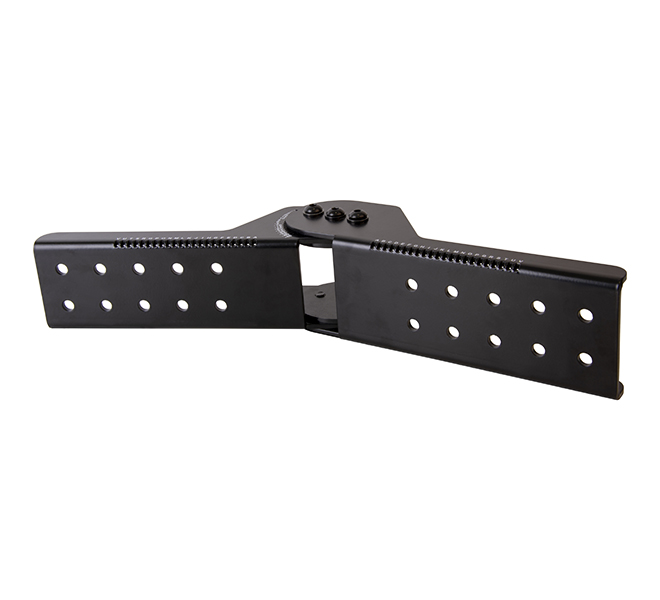

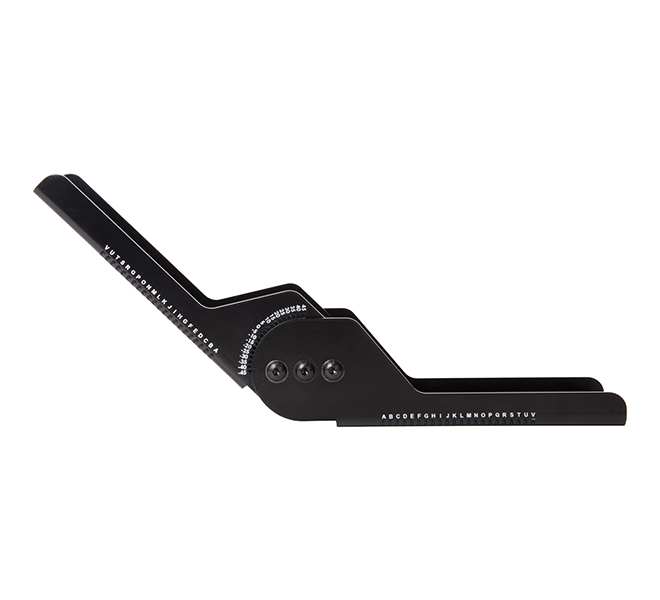

  BT8390-AAC - Angle Adjustment Connector

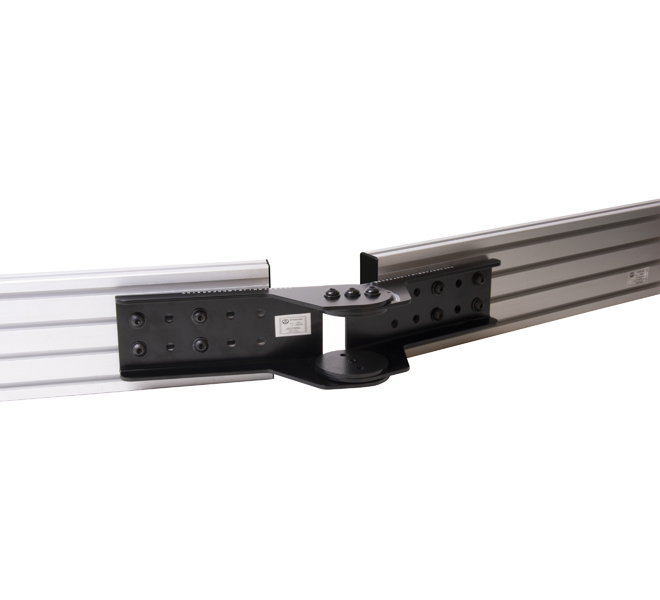

  • Fixes between two BT8390 rails to provide an angled joint - ideal for installations that require a curve

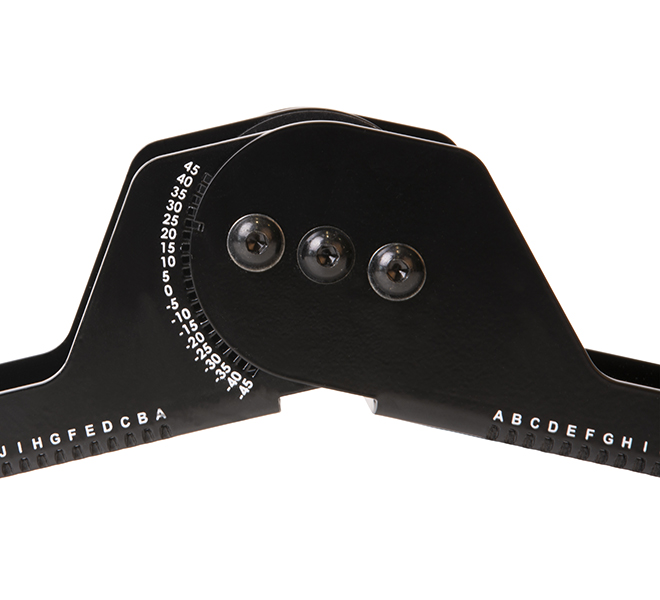

  • Integrated angle guides: +/-45 degrees
  • Integrated rail mounting guides (to show where to fix the BT8390 rails to reduce installatio
    time and eliminate having to measure each time)
  • All fixings included
  • Angle adjustment range: +/- 45°
  • Colour: Black

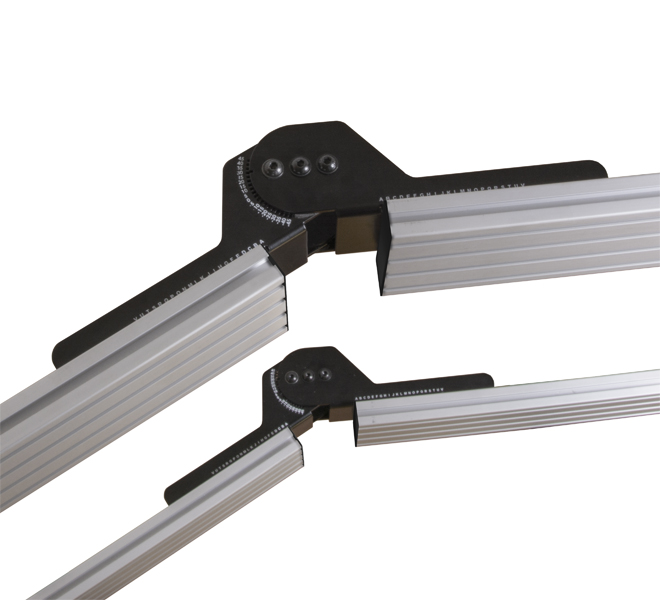

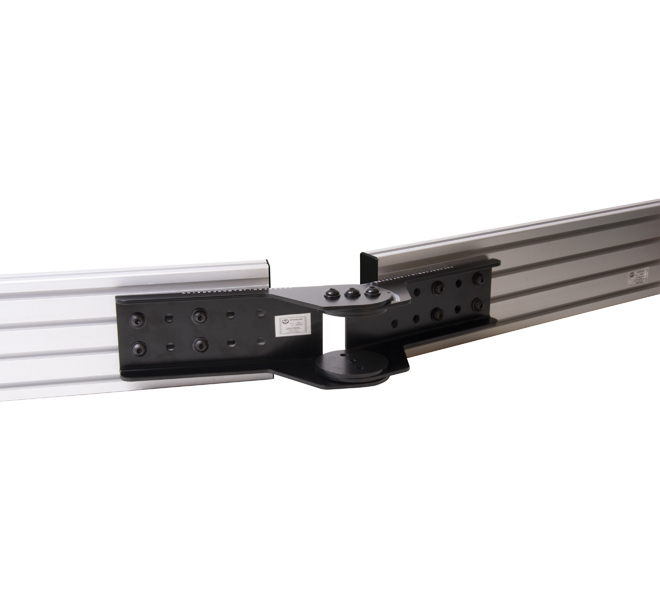

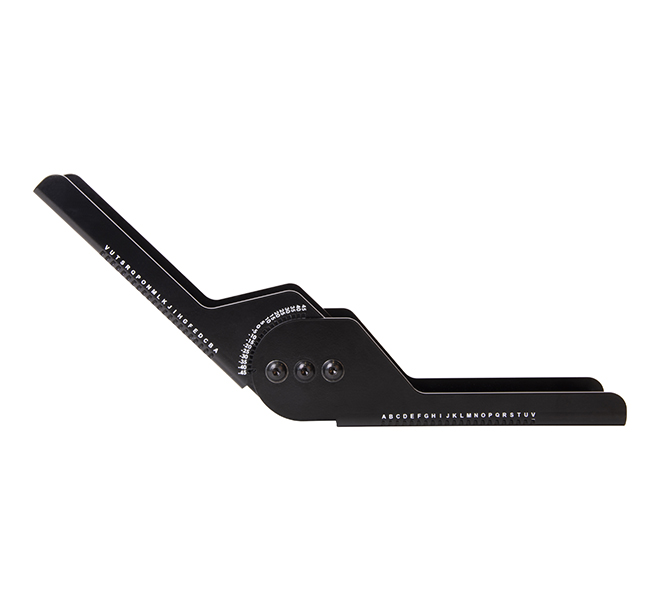

BT8390-AAC - Angle Adjustment Connector Integrated rail mounting guides to help reduce installation time. Angle adjustment can be implemented on ceiling mounted, freestanding or bolt down floor stands

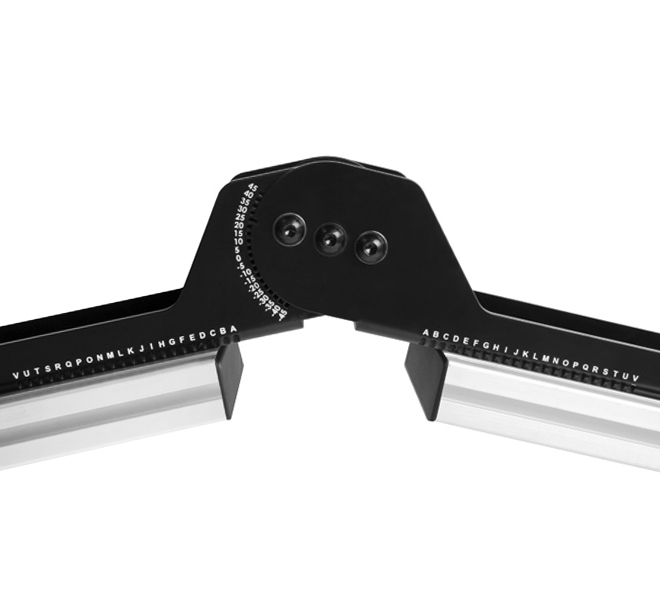

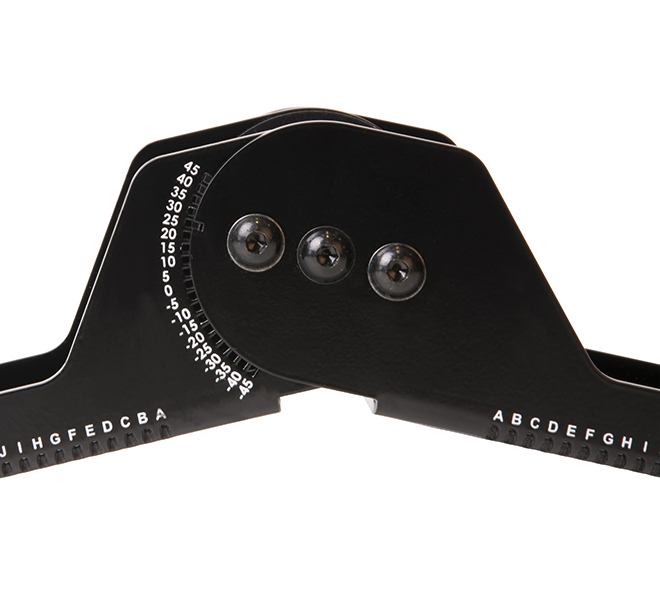

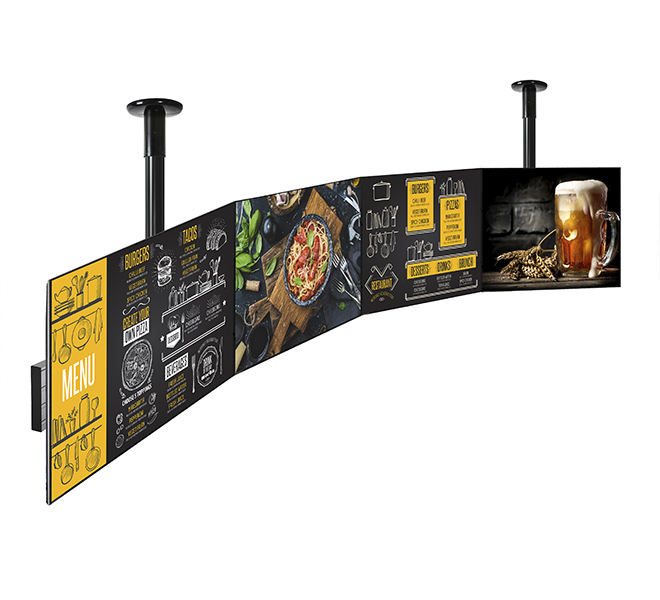

Integrated angle guides to help obtain the desired curve to your video wall. Integrated angle guides to help obtain the desired curve to your video wall. Angle adjustment can be implemented on ceiling mounted, freestanding or bolt down floor stands Angle adjustment can be implemented on ceiling mounted, freestanding or bolt down floor stands

Specification Sheet (PDF)

Installation Guide (PDF)

Technical Drawing (PDF)

Technical Drawing (DXF)

You must log in to view this content
