Universal Pop-Out Menu Board Mounting System

BT8331

For pop-out menu boards




The BT8331 is a modular wall mounting system for menu board installations of any size and features pop-in, pop-out interface arms designed to aid installation and allow access to the rear of the screens for servicing and maintenance. As part of the System X range, the BT8331 features a contemporary, lightweight yet incredibly strong design with a high-end aesthetic quality and micro-adjustment for seamless screen alignment.





















Configure a BT8331

  • Universal design suitable for all sized screens up to 50kg (per screen)

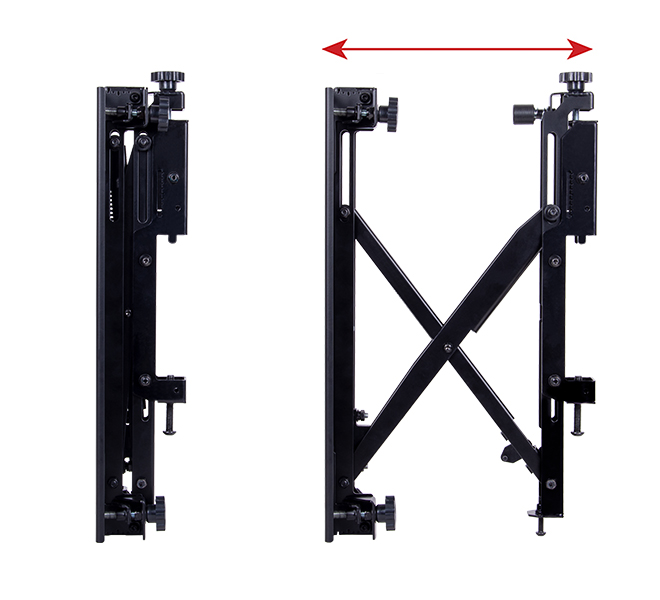

  • Features pop-in, pop-out function to allow access to the rear of screens for servicing and maintenance and to aid installation
  • Tool-less micro-adjustments for seamless display alignment
  • Suitable for landscape or portrait mounting
  • High-end aesthetic quality
  • Safety screws help prevent unauthorised removal of screens
  • Ideal for recess mounting menu boards
  • Arms include locking screw to prevent accidental pop-out of screens
  • Cable management included for a neat and tidy installation
  • Multiple rail lengths available (rails can also be joined to create larger installs)



  • Recommended screen size: 32" - 70"
  • Max load: 50kg (per screen)
  • VESA® & non-VESA fixings: up to 900mm*
  • Tilt: +20°
  • Distance from wall (fixed arms): 57.4mm
  • Distance from wall (tilt arms): 71.4mm
  • Distance from wall (micro-adjustment arms): 85mm (+/-10mm)
  • Colour (interface arms): Black
  • Colour (horizontal rail): Silver

*Refers to maximum vertical fixing dimension for a typical configuration. Correctly sized interface arms and adaptors will be supplied as necessary to suit the mounting pattern you require.

BT8331 - Universal Pop-In, Pop-Out Menu Board Mounting System Tool-less micro-adjustment at 8 points for seamless display alignment Push to open / push to close system provides quick and easy service access Multiple rail lengths available (rails can also be joined to create larger installs)

System X Overview Video

Assembly Leaflet (PDF)

Specification Sheet (PDF)
