Universal Bolt Down Videowall Stand

BT8372

Recommended Screen Size: 46" - 60"




As part of B-Tech's dynamic System X range, the BT8372 is a contemporary bolt down videowall mounting solution which is available to order in a variety of different configurations. The system's universal design supports all models of videowall screen and is lightweight yet incredibly strong. Ideal for retail displays and other applications with minimal floor space, the BT8372 has been designed with a small footprint to allow close-to-the-window installations, has a high-end aesthetic quality and comes with important time saving features such as tool-less 8 point micro-adjustment and a universal screen position spacer to speed up the installation process are included as standard.

Installation Overview Videos





BT8372-2x2 - System X Universal Bolt Down Videowall
















Configure a BT8372



Variety of Configurations Available

The BT8372 is available to order in a configuration which suits your exact needs, our online configuration tool will soon allow you to specify your requirements with a choice of over 2000 different configurations for videowall setups ranging from 2x2 up to 6x4.

For user convenience three BT8372 kits for the most common videwall setups are available to order off-the-shelf. These are; BT8372-2X2 / BT8372-3X3 / BT8372-3X3-60. For specific details of these kits please see the tabs below. To create bespoke configurations for existing System X products, please use the System X configurator by clicking the button below.

  • Universal design suitable for all videowall screens
  • Small footprint for an un-obtrusive installation into confined areas
  • High-end aesthetic quality
  • Tool-less micro-adjustments at 8 points for seamless screen alignment
  • Integrated cable management
  • Collar compatible accessories such as shelves can be fitted directly to the extrusion
  • Includes re-usable screen position spacer to aid installation of screens
  • Safety screws help prevent unauthorised removal of screens

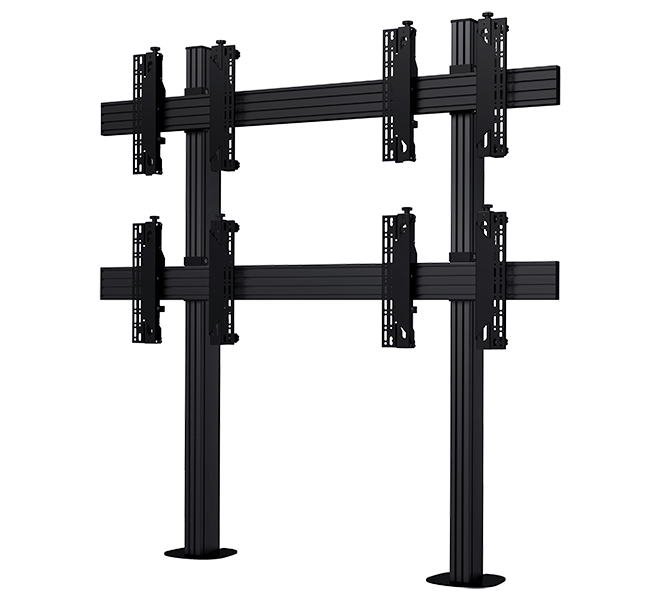

BT8372-2x2

System X
Universal Bolt Down Videowall Stand for 2x2 Video Walls (for 46 to 60" screens)

Off-the-shelf kit designed to mount 46-60" screens in a 2x2 configuration

  • Recommended screen size: 46"- 60"
  • Max load: 50kg (per screen)
  • VESA® and non-VESA fixings:
    200 x 200 up to 600 x 400
  • Dimensions:
    W: 2005mm H: 1806 up to 2007mm
  • Base Thickness: 6mm
  • Colour (base & VESA arms): Black
  • Colour (verticals): Black or Silver
  • Colour (horizontals): Silver

    Full product specification sheet available
    on the Downloads tab

BT8372-2x2 - System X Universal Bolt Down Videowall Stand for 2x2 Videowalls

BT8372-3x3

System X
Universal Bolt Down Videowall Stand for 3x3 Video Walls (for 46 to 55" screens)

Off-the-shelf kit designed to mount 46-55" screens in a 3x3 configuration

  • Recommended screen size: 46"- 55"
  • Max load: 50kg (per screen)
  • VESA® and non-VESA fixings:
    200 x 200 up to 600 x 400
  • Dimensions:
    W: 3005mm H: 2406 up to 2608mm
  • Base Thickness: 6mm
  • Colour (base & VESA arms): Black
  • Colour (verticals): Black or Silver
  • Colour (horizontals): Silver

    Full product specification sheet available
    on the Downloads tab

BT8372-3x3 - System X Universal Bolt Down Videowall Stand for 2x2 Videowalls

BT8372-3x3-60

System X
Universal Bolt Down Videowall Stand for 3x3 Videowalls (for 60" screens)

Off-the-shelf kit designed to mount 60" screens in a 3x3 configuration

  • Recommended screen size: 55"- 60"
  • Max load: 50kg (per screen)
  • VESA® and non-VESA fixings:
    200 x 200 up to 600 x 400
  • Dimensions:
    W: 3505mm H: 2406 up to 2608mm
  • Base Thickness: 6mm
  • Colour (base & VESA arms): Black
  • Colour (verticals): Black or Silver
  • Colour (horizontals): Silver

    Full product specification sheet available
    on the Downloads tab
BT8372-3x3-60 - System X Universal Bolt Down Videowall Stand for 3x3 Videowalls
BT8372-2x2 - System X Universal Bolt Down Videowall Stand for 2x2 Videowalls BT8372-2x2 - System X Universal Bolt Down Video Wall Stand for 2x2 Video Walls BT8372-3x3 - System X Universal Bolt Down Videowall Stand for 3x3 Videowalls BT8372-3x3 - System X Universal Bolt Down Video Wall Stand for 3x3 Video Walls
BT8372-2X2 BT8372-2X2 - Rear View BT8372-2X2 - Accessory Shelf BT8372 - Cable management hides untidy cables and adds to the stylish finish
