System X™ Rail Mounting Bracket

BT8390-WFK1

 For use with BT8390 rails




The BT8390-WFK1 is a bracket designed to fix BT8390 mounting rails onto walls, for the installation of menu boards and other multi-screen configurations. The slim yet sturdy 5mm thick plate is designed for installations using fixed or tilting interface arms from the System X range and keeps the profile of finished installations to a minimum.






  • Designed to allow BT8390 horizontal rails to be mounted to the wall

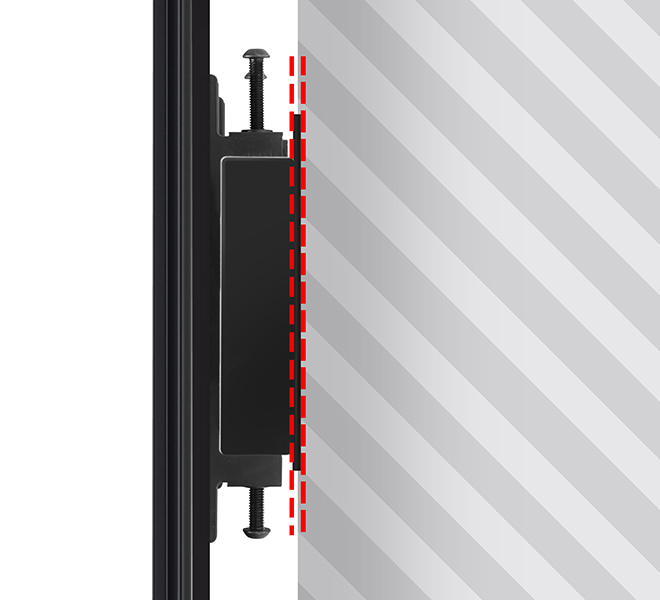

  • Ideal for close-to-the-wall installations, mounting rails only 5mm from the wall
  • Countersunk screws sit flush with the plate for a neat installation

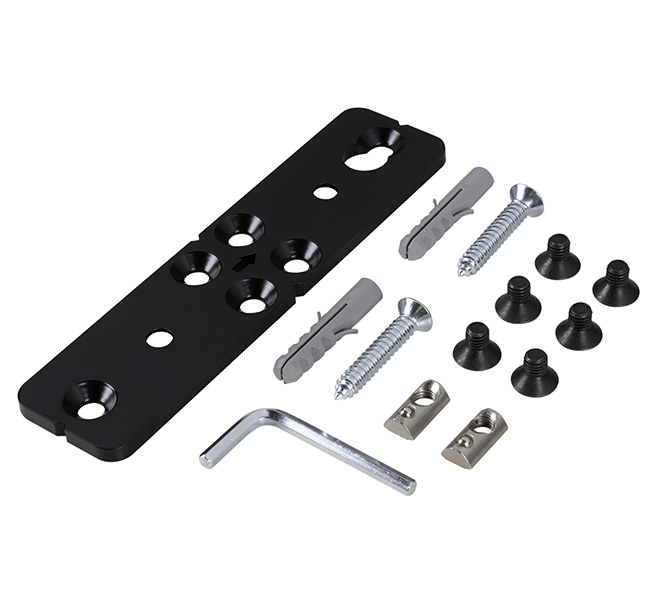

  • All mounting hardware included
  • Not suitable for BT8390-800 and 1200 arms
  • Distance from wall (to front of rail): 35mm
  • Colour: Black
  • Brackets supplied (per pack): 1
  • Quantity of brackets required per rail length (landscape installs):*
    Rail Length              Qty
    0 - 2000mm             2pcs
    2001 - 3500mm       3pcs
    3501 - 5500mm       4pcs
    5501 - 7750mm       5pcs
    7751 - 8500mm       6pcs

    *Use B-Tech's online configuration tool to automatically calculate the quantity required based on your configuration.
