System X™ Dual Rail Mounting Bracket

BT8390-WFK3

 For use with XL Interface Arms

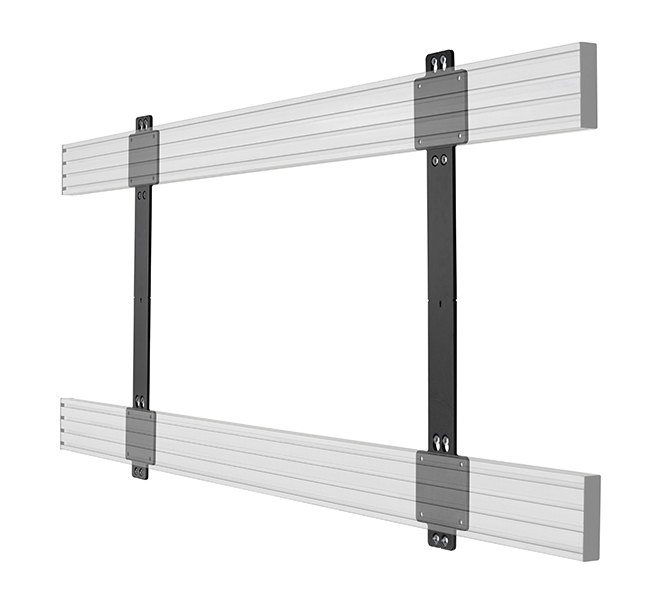

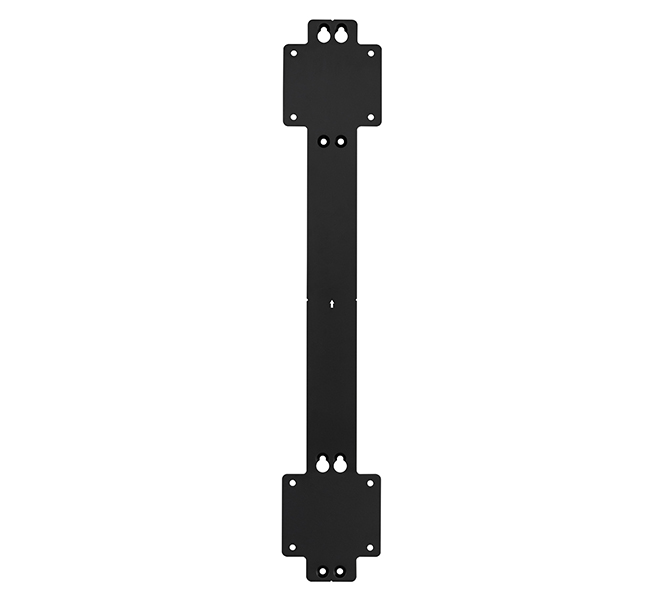

The BT8390-WFK3 is a bracket designed to fix two BT8390 mounting rails onto walls or vertical support columns, for the installation of large format displays. The bracket is ideal for reducing installation times, by eliminating the need to measure the distance between mounted rails.






  • Designed to dual mount BT8390 horizontal mounting rails to the wall
  • Reduces install times by eliminating the need to measure the distance between mounted rails
  • Can also be used with BT8380 vertical columns to create freestanding videowalls

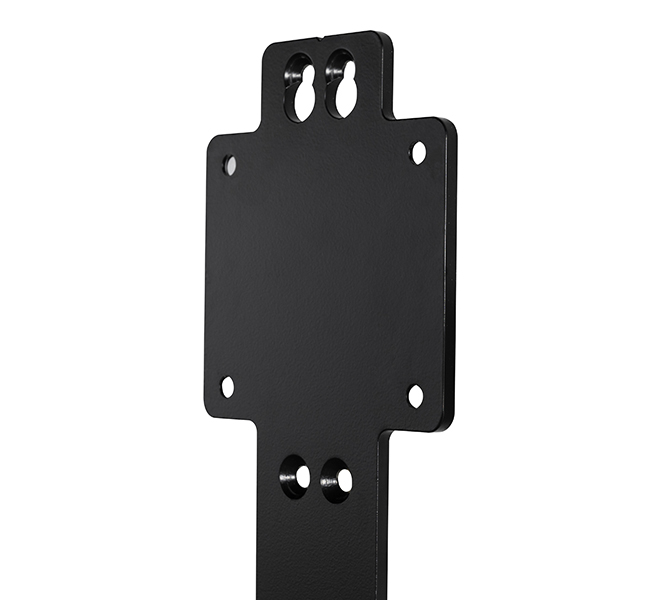

  • Keyhole fixings for quick and easy installation
  • All mounting hardware included
  • Recommended interface arms: BT8390-VESA800F & BT8390-VESA1200F
  • Distance from wall (to front of rail): 49mm
  • Distance between rails: 480mm
  • Brackets supplied (per pack): 1
  • Quantity of brackets required per rail length (landscape installs):
    Rail Length              Qty
    0 - 2000mm             2pcs
    2001 - 3500mm       3pcs
    3501 - 5500mm       4pcs
    5501 - 7750mm       5pcs
    7751 - 8500mm       6pcs
BT8390-WFK3 - System X Dual Rail Mounting Bracket - 19mm Can also be used for video wall installations that use Vertical Support Columns Dramatically reduces install times by eliminating the need to measure the distance between the rails All mounting hardware included
