Mounting Plate for Dual Logitech Rally Plus Speakers

BT7874

For Logitech Rally Plus Speakers





The BT7874 is designed specifically to mount the Logitech Rally Plus speakers to a range of B-Tech products. The versatile mounting plate can position the speakers above or below screen by fixing either to a B-Tech column, onto a System X rail or a flat screen mount (using adaptors) or can be pole mounted using B-Tech accessory collars.





  BT7874
  • Designed to mount dual Logitech Rally Plus Speakers to a range
    of B-Tech products
  • Mounts directly to a BT8380, BT8381 or a BT8385* column or columns
  • Use with a BT7031 to mount onto a range of B-Tech flat screen wall mounts such as the BT8431, BT8432, BT8442, BT9901 and BT9903
  • Compatible with BT7052 / BT7841 collars for use with ø50mm poles or on a BT8504 trolley
  • Can also be used with BT8390-SA to mount above or below a screen mounted on a System X BT8390 rail
  • Simple 'hook-on' installation
  • All mounting hardware included



     *Mounting to the BT8385 will require the BT7874 to be used in conjunction with the
       BT8385-RTC

  • Max Load: 5kg (11lbs)
  • Dimensions: 740mm x 30mm (29" x 1.2")
  • Steel thickness: 5mm (0.2")
  • Colour: Black

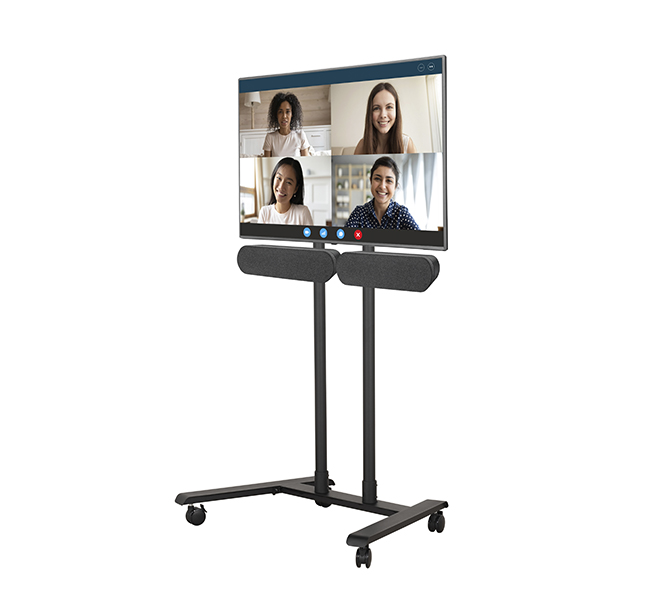

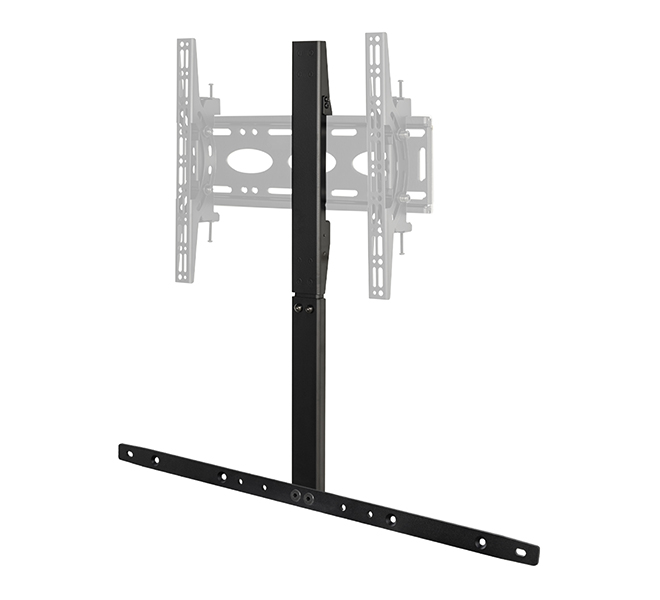

BT7874 - Use with a BT7031 adaptor to mount onto a range of B-Tech flat screen mounts BT7874 - Use with a BT8390-SA to mount speakers onto a BT8390 rail BT7874 - Suitable for mounting speakers above or below the screen BT7874 - Also suitable for mobile mounted solutions

Specification Sheets

Specification Sheet - English (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)
