Single Arm Flat Screen Wall Mount with Tilt and Swivel

BT7512

For Small Screens



  • Designed for screens up to 23” (58cm) / 15kg (33lbs)
  • Fits screens with VESA mounting patterns:
    75mm x 75mm and 100mm x 100mm
  • Features +17° /-10° tilt and 180° swivel
  • CLIPLOGIC® cable management included
  • Simple ‘hook-on’ installation with all mounting hardware included



Maximum weightMaximum screen size
15kg (33lbs) 23" (58cm)
  BT7512 - Single Arm Flat Screen Wall Mount with Tilt and Swivel
  • Designed for small flat screens up to 23” (58cm) / 15kg (33lbs)
  • Fits screens with VESA mounting patterns:
    75mm x 75mm and 100mm x 100mm
  • Easy tilt adjustment +17°/-10°
  • Features two swivel points: 180° at wall and 240° at interface
  • CLIPLOGIC® cable management included
  • 360° rotation for easy screen levelling and to allow screen to be mounted in landscape or portrait style
  •  Security locking screws and Allen key provided for secure installation
  •  Features ‘OWLS’™ On Wall Levelling System
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Screen Size: up to 23”
  • Max. Weight: 15kg (33lbs)
  • Distance from Wall: Min: 75mm (3") -  Max: 280mm (13.2")
  • VESA Compatibility: 75 x 75, 100 x 100
  • Tilt: +17°, -10°
  • Swivel: 180° at wall, 240° at interface
  • Colours Available: Piano Black, Silver
  • Community Design Number: 001713280-0005

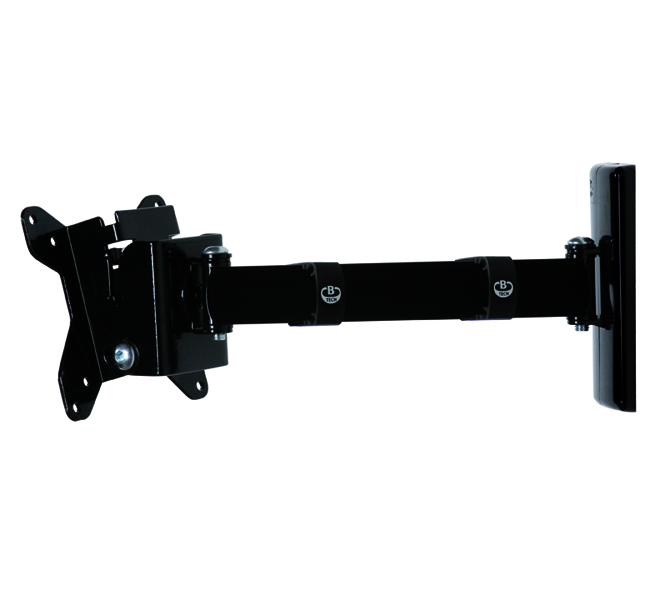

BT7512 - Single Arm Flat Screen Wall Mount with Tilt and Swivel- Side View BT7512 - Single Arm Flat Screen Wall Mount with Tilt and Swivel - with Screen BT7512 - Single Arm Flat Screen Wall Mount with Tilt and Swivel - Lifestyle Image

Assembly Leaflet (PDF)

Product Specification Sheet (PDF)
