Single Arm Flat Screen Wall Mount with Tilt and Swivel

BT7514

For Medium Screens



  • Designed for screens up to 42” (107cm) / 25kg (55lbs)
  • Fits screens with VESA mounting patterns:
    75mm x 75mm, 100mm x 100mm, 200mm x 100mm and 200mm x 200mm
  • Easy tilt adjustment +/-40°

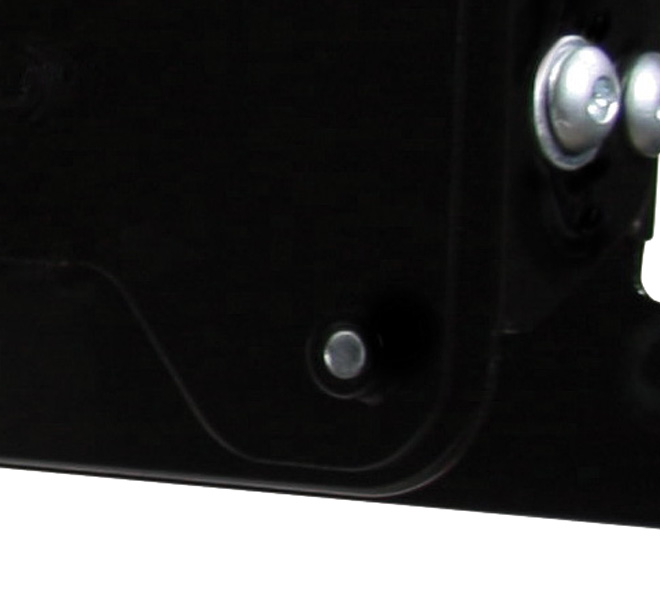

  • Security locking screws and Allen key provided for secure installation
  • CLIPLOGIC™  cable management included



Maximum weightMaximum screen size
25kg (55lbs) 42" (107cm)
  BT7514 Single Arm with Tilt and Swivel Flat Screen Wall Mount
  • Designed for screens up to 42” (107cm) / 25kg (55lbs)
  • Fits screens with VESA mounting patterns:
    75mm x 75mm, 100mm x 100mm, 200mm x 100mm and 200mm x 200mm
  • Easy tilt adjustment +/-40°
  • Features two swivel points: 180° at wall and 240° at interface
  • Security locking screws and Allen key provided for secure installation
  • CLIPLOGIC™ cable management included
  • Features ‘OWLS’™ On Wall Levelling System
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Includes single arm and optional mini arm
  • Screen Size: up to 42”
  • Max. Weight: 25kg (55lbs)
  • Dist from Wall: 95mm (3.7”) - 336mm (13.2”)
  • VESA Compatibility: 75 x 75, 100 x 100, 200 x 100, 200 x 200
  • Colours Available: Piano Black, Silver
  • Community Design Number: 001713280-0007

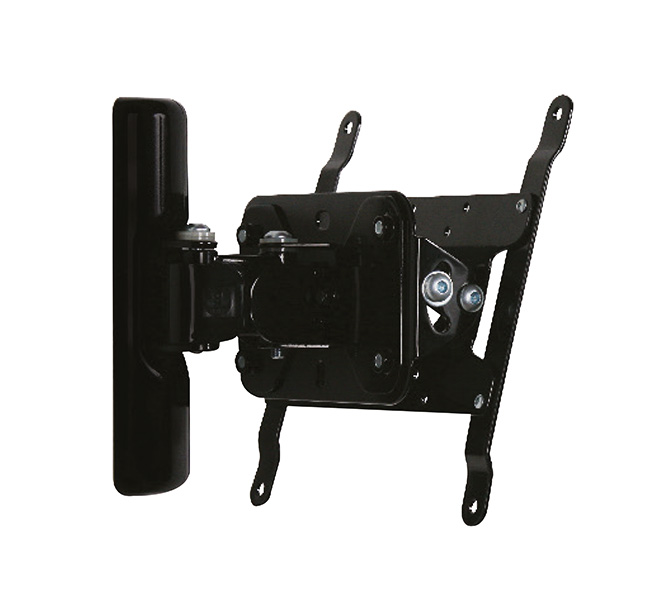

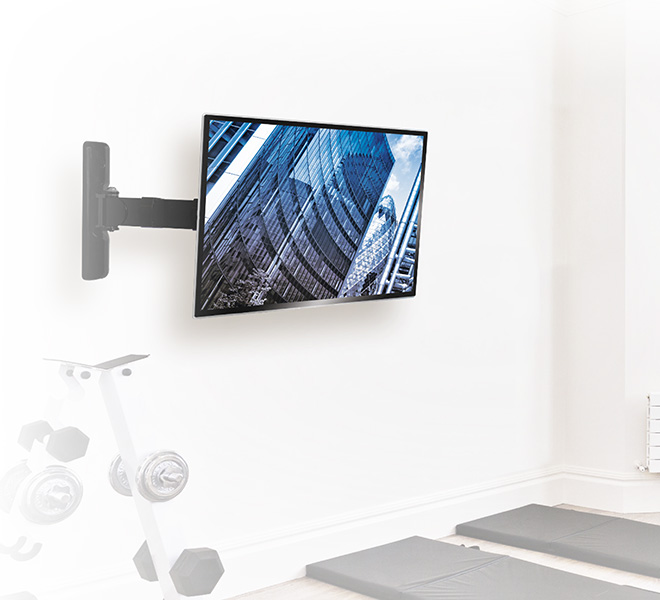

BT7514 Single Arm with Tilt and Swivel Flat Screen Wall Mount - Side View BT7514 Single Arm with Tilt and Swivel Flat Screen Wall Mount - Short Arm BT7514 Single Arm with Tilt and Swivel Flat Screen Wall Mount - With Screen BT7514 Single Arm with Tilt and Swivel Flat Screen Wall Mount - Lifestyle Image

Assembly Leaflet (PDF)

Product specification Sheet (PDF)

BT7514 - Technical Drawing (PDF)

BT7514 - Technical Drawing (DXF)
