4-Way Speaker Control

BT13

With Screw Terminals



  • Listen to up to four pairs of loudspeakers separately or together
  • Accepts loudspeaker cable up to 2.5mm diameter
  • Suitable for loudspeakers of 8 ohms and above
  • 200 watts RMS per channel power rating
  • Strong, stylish silver metal consoles
  • Screw terminals for strong connection and minimum loss



   BT13 - 4-Way Speaker Control
  • Listen to up to four pairs of loudspeakers separately or together
  • Accepts loudspeaker cable up to 2.5mm diameter
  • Suitable for loudspeakers of 8 ohms and above
  • 200 watts RMS per channel power rating
  • Strong, stylish silver metal consoles
  • Screw terminals for strong connection and minimum loss
  • Colours Available: Silver
  • Cable Diameter : 2.5mm (0.1”)

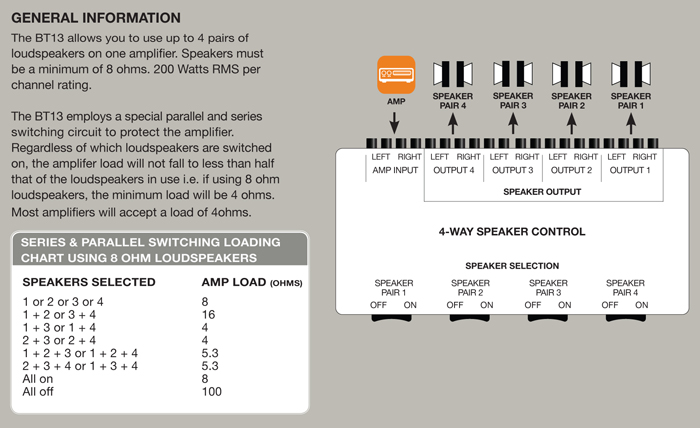

BT12 - 2-Way Speaker Selector Switch - Front View BT13 - 2-Way Speaker Selector Switch - Rear View BT13 - 2-Way Speaker Selector Switch - Rear View BT13 - 2-Way Speaker Selector Switch - Instruction Diagram
