Large Floor Base

BT4002

Includes Cover Plate

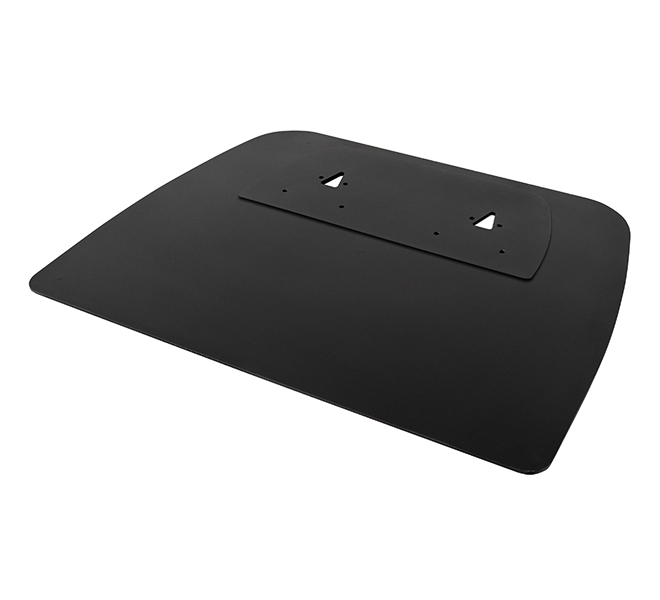

BT4002 is a stylish large floor base designed for use with B-Tech's range of Ø50mm floor stand poles or BT8381 vertical support columns to create custom flat screen floor stands specific to the user's requirements. The base allows the user to mount a single or double pole or column, depending on their requirements. Additional features include non-marking rubber feet and grab handles for easy handling. Cover plates (sold separately) hide grab handles and unused pole fixing points.





  BT4002 - Large Floor Base
  • Floor base designed for use with a single or double B-Tech Ø50mm floor stand
    poles and BT8381 vertical support columns
  • Heavy duty 6mm thick steel construction
  • Non-marking rubber feet for increased stability
  • Grab handles allow for easy handling
  • Cover plates hide grab handles and unused fixing points for a smart finish (sold separately)
  • Pole, screen interface kit and accessories sold separately
  • Max load when used with single column or pole: 40kg (88.2lbs)*
  • Max load when used with twin columns or poles: 70kg (154.3lbs)*
  • Dimensions W: 800mm (31.5") D: 600mm (23.6") H: 19mm (0.7")
  • No. of Ø50mm Poles / Columns required: up to 2

    *Max weight also dependent on the height of the installed mount

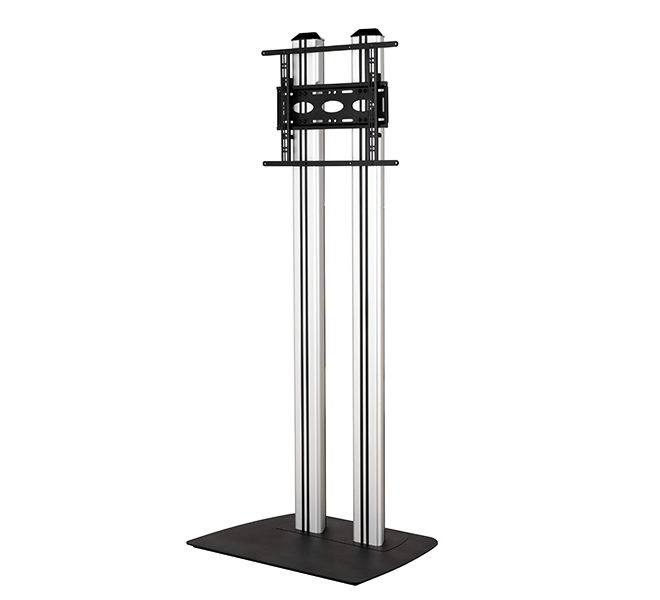

BT4002 - Grab handles allow for easy handling BT4002 - Supplied with either a BT4002-SPC or BT4002-SCC cover plate for a smart finish BT4002 - Non-marking rubber feet for increased Grab handles allow for easy handling stability BT4002 - Designed for use with a single or double B-Tech Ø50mm floor stand poles or BT8381 vertical support columns

Specification Sheet

Specification Sheet (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)
