Large Floor Base

BT4003

For Ø60mm Poles

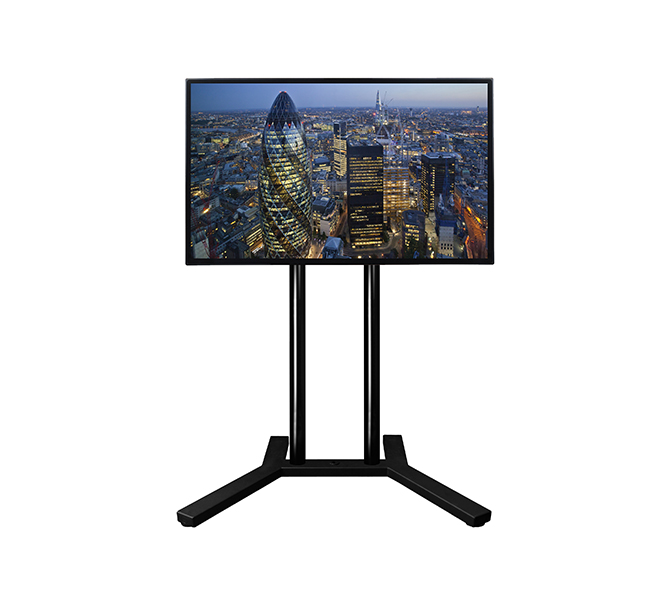

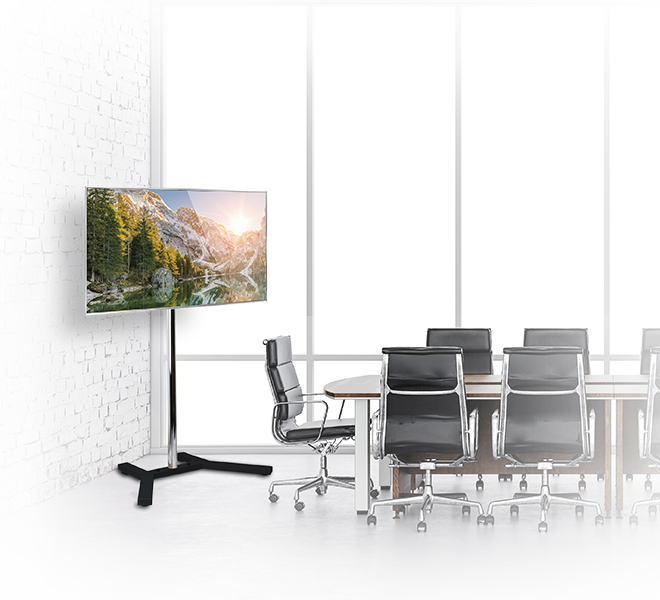

A modular based system which allows for a custom built flat screen display floor stand, this large base is designed to be used with B-Tech's 060mm poles. After picking a base, choose a suitable length pole(s) and a screen interface kit depending on the type of installation. For a mobile application, alternative braked castor are available separately.

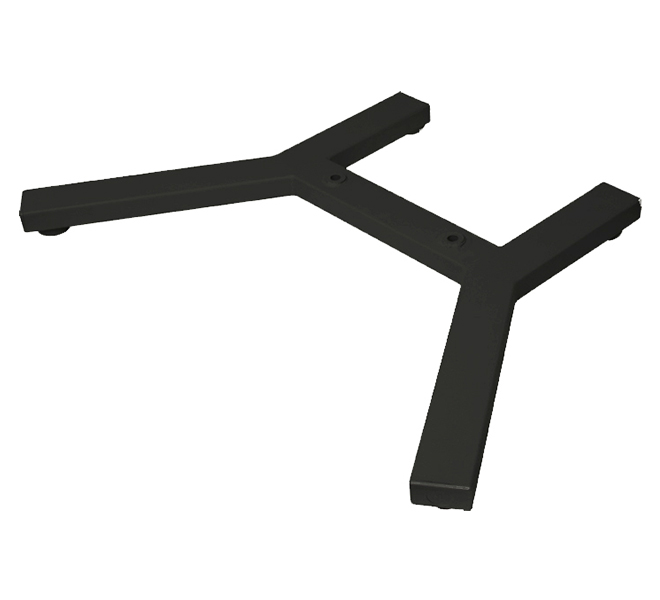

  BT4003 Large Floor / Trolley Base
  • Floor base designed for use with B-Tech's Ø60mm poles (BT4005/BT4011/BT4015)

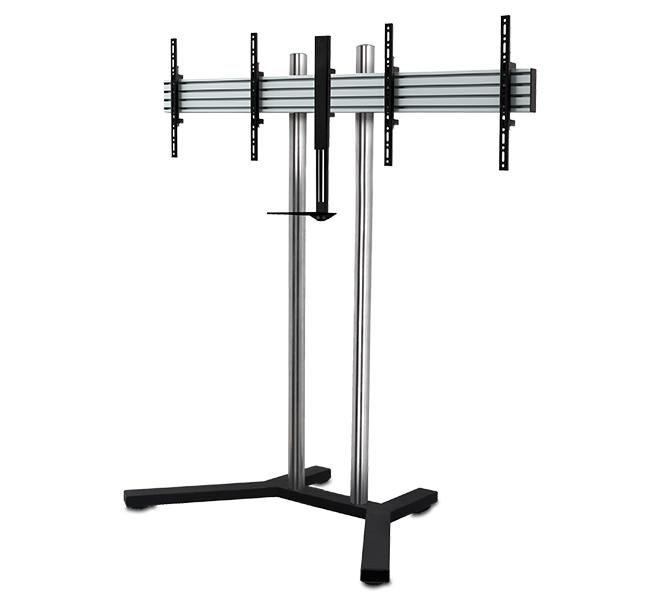

  • Can be used with either 1 or 2 poles
  • Screen size and weight limit dependent on pole confguration*
  • Suitable for use with collar compatible screen interface mounts
  • Supplied with height adjustable screw-in levelling feet
  • Optional BTW100-4 braked castors (available separately) to convert stand into a mobile display
  • Poles, screen interface kit and accessories all sold separately

*Max weight is also dependent on which screen interface is used

  • Max load (One Pole: 35kg
  • Max lod (Two Poles): 70kg
  • Base dimensions: W:1130mm D:774mm H:60mm
  • No. of poles required: 2
BT4003 Large Floor / Trolley Base
