Large Back-To-Back Floor Base for Display Stands

BT4102

For Ø60mm Poles

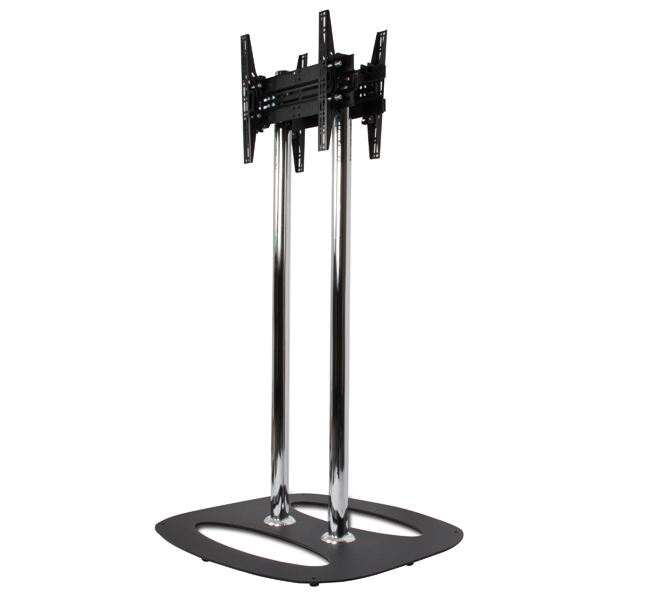

A modular based system which allows for a custom built flat screen display floor stand, the BT4102 floor base is designed to mount 2 screens back-to-back, use with B-Tech's Ø60mm poles and collar compatible mounts. After picking a base, choose the height of the Ø60mm poles and screen interface kits with accessory collars depending on the type of installation. The base can be used freestanding or bolted to the floor. Single screen installations are also possible.





  BT4102 Large Back-To-Back Floor Stand Base
  • Floor base designed for use with B-Tech's Ø60mm poles (BT4005/BT4011/BT4015/BT4020)
  • Can be used freestanding or bolted to the floor
  • Screen size and weight may be increased if floor base is bolted to the floor*
  • Supplied with optional rubber feet for use when freestanding
  • Heavy duty 6mm thick steel construction
  • Includes pole trim rings and pole end caps for a neat installation
  • Design features for easy handling
  • Poles, screen interface kit and accessories all sold separately

*Max weight is also dependent on which screen interface is used

  • Base dimensions: W: 890mm D: 850mm H: 12mm*
  • Max load freestanding (bolted): 70kg (35kg per screen)
  • No. of poles required: 2
  • Available in Black

*Base Height including rubber feet: 22mm

BT4102 Large Back-To-Back Floor Stand Base BT4102 Large Back-To-Back Floor Stand Base BT4102 Large Back-To-Back Floor Stand Base BT4102 Large Back-To-Back Floor Stand Base Product Combination

Product Specification Sheet (PDF)

Installation Guide (PDF)
