Universal Carousel Projector Mount

BT5880

System V Component



  • Designed for LCD/LED/DLP projectors up to 10kg (22lbs)
  • +/- 15° tilt adjustment, +/- 15° roll adjustment & 360° swivel
  • Maximum distance between any 2 fixing points: 493mm (19.4")
  • Suitable for projectors using M2.5, M3, M4, M5 and M6 fixings



Maximum weight
10kg (22lbs)

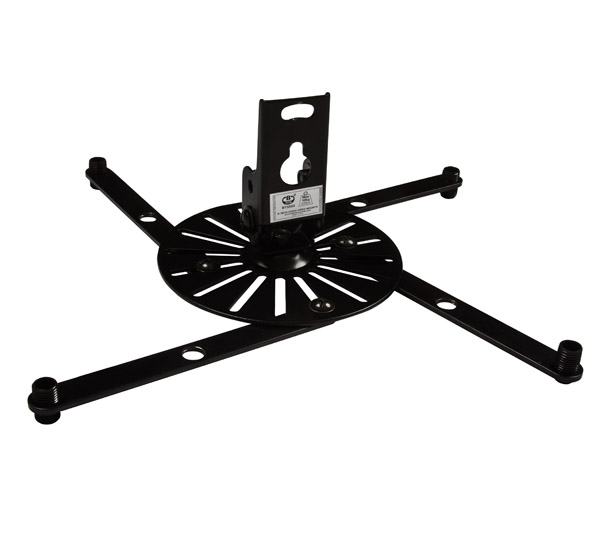

  BT5880 - Universal Carousel Projector Mount - Black
  • Designed for LCD/LED/DLP projectors up to 10kg (22lbs)
  • +/- 15° tilt adjustment, +/- 15° roll adjustment & 360° swivel
  • Maximum distance between any 2 fixing points: 493mm (19.4")
  • Projector can also be mounted directly to the carousel
  • Suitable for projectors using M2.5, M3, M4, M5 and M6 fixings
  • Keyhole 'hook-on' feature for easy installation
  • Also available (separately) BT5820-CP Cover Plate, see below
  • Max. Weight: 10kg (22lbs)
  • Colours Available: Black
  • Tilt adjustment: +/- 15°
  • Roll adjustment: +/- 15°
  • Swivel: 360°
  • Maximum distance between any 2 fixing points: 493mm (19.4”)
BT5880 - Universal Carousel Projector Mount - Black
 Parts list for this Product is currently unavailable.
