Back-to-Back Portrait Digital Signage Kiosk

BT7001

High-end, premium quality

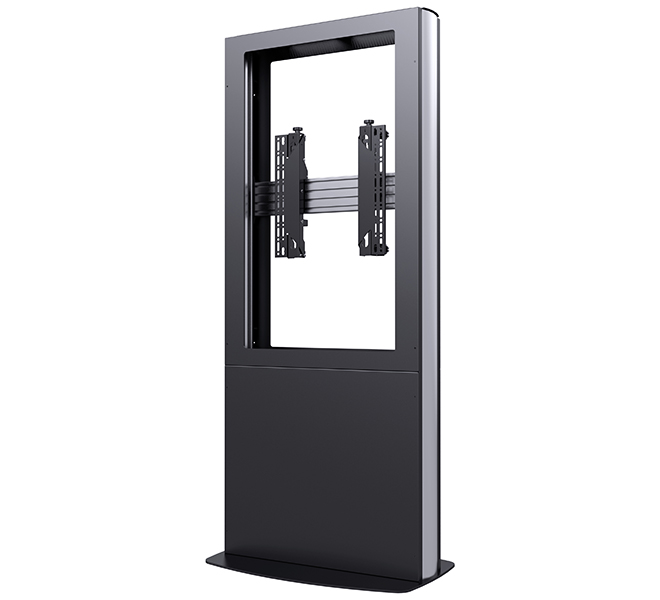

The BT7001 is a display kiosk designed to portrait mount two digital signage screens in a back-to-back configuration. A rigid chassis is fixed to a heavy duty steel base which can be used freestanding or bolted to the floor and is finished stylishly with satin black or white outer covers. The internal mounting system is made up of parts from our System X range, allowing 8-point micro-adjustment to ensure the mounted screens sit perfectly level and flush with the front and rear opening of the kiosk, which is laser cut to match your screen size.





  BT7001 - Back-to-back Portrait Signage Kiosk
  • High-end aesthetic quality with a premium high satin finish

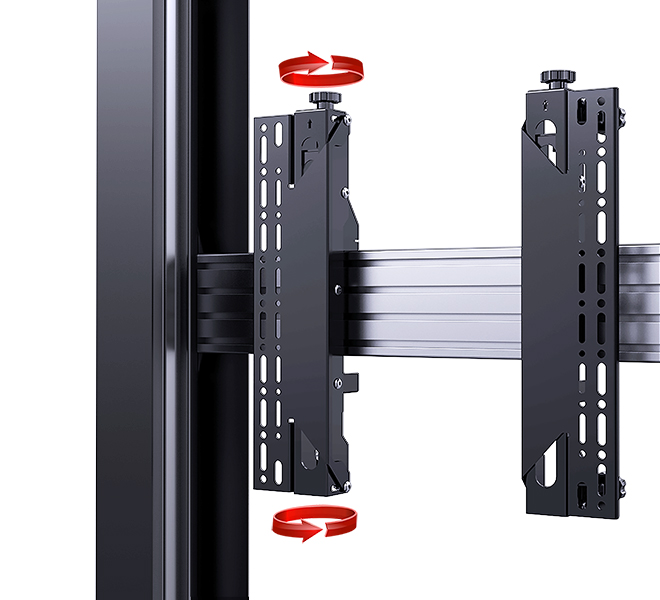

  • Tool-less micro-adjustments at 8 points for seamless screen alignment
  • Suitable for portrait mounting
  • Integrated cable management
  • 8mm thick heavy duty steel base
  • Can be used freestanding or bolted to the floor
  • Simple ‘hook-on’ screen installation
  • Lockable top panel helps prevent unauthorised removal of the screen
  • Removable front and rear panels for easy installation and maintenance
  • Includes internal storage area in lower section for media players and devices
  • Vented top panel allows airflow to and from the device

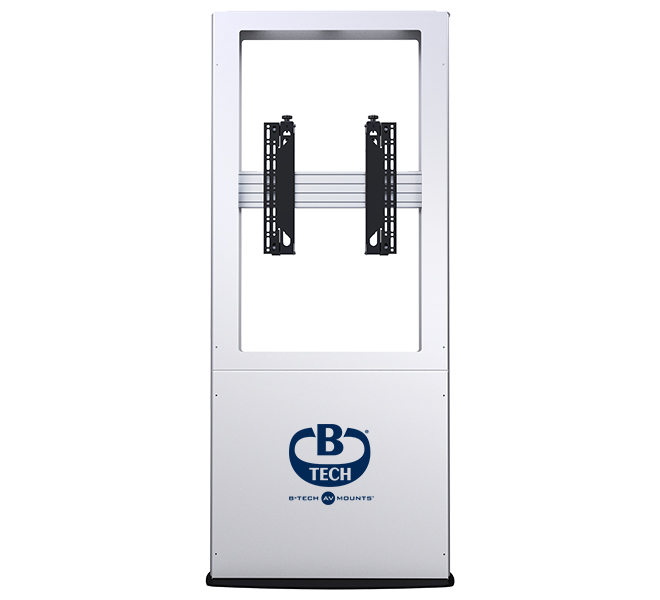

  • Kiosks can be branded with your company logo if required
  • All mounting hardware included
  • For indoor use only
  • Suitable for screens: from 40" up to 65"
  • Max load: 50kg (per screen)
  • VESA and Non-VESA fixings: 200 x 200 up to 600 x 400
  • Kiosk dimensions: W: 770mm D: 172mm H: 1850mm*
  • Base dimensions: W: 520mm D: 790mm H: 8mm*
  • Colour: Black or White

*Please note dimension applies to screens 42"-55". Kiosk dimensions for other screen sizes may differ
 please ask for details

Removable front and rear panels Available with your company logo if required Tool-less 8-point Micro-adjustment BT7001 Lifestyle Image

Specification Sheet (PDF)

Assembly Leaflet (PDF) - Coming Soon
