Double Screen Back-To-Back
Digital Signage Kiosk
for LG® 88BH7D

BT7009

FOR LG® 88BH7D




The BT7009 is a display kiosk designed to portrait mount two LG 88BH7D 88" 32:9 Ultra-Stretch Signage Screens back-to-back. A rigid chassis is fixed to a heavy duty steel base which can be used freestanding or bolted to the floor and is finished stylishly with satin black or white outer covers. The internal mounting system is made up of parts from our System X range.







BT7009 - Back-To-Back Digital Signage Kiosk



  • Portrait mount designed for use with two LG 88BH7D 88” 32:9 Ultra-Stretch Signage screens
  • Double sided display ideal for shop windows, shopping centres, showrooms etc
  • High-end aesthetic quality with a premium satin finish
  • Integrated cable management
  • 8mm thick heavy duty steel base
  • Can be used freestanding or bolted to the floor
  • Lockable top panel helps prevent unauthorised removal of the screen
  • Removable front and rear panels for easy installation and maintenance
  • Vented panels allow airflow to and from the device
  • Simple ‘hook-on’ screen installation
  • Kiosks can be branded with your company logo
  • For indoor use only
  • Suitable for: 88" (224cm) Ultra-Stretch screens
  • Max load: 50kg (110lbs) (per screen)
  • VESA and non-VESA fixings: 600mm x 400mm
  • Kiosk dimensions: W: 700mm (27.5") D: 273mm (10.7") H: 2492mm (98")
  • Base dimensions: W:700mm (27.5") D: 600mm (23.6") H: 8mm (0.3")
  • Colour options: Black or White

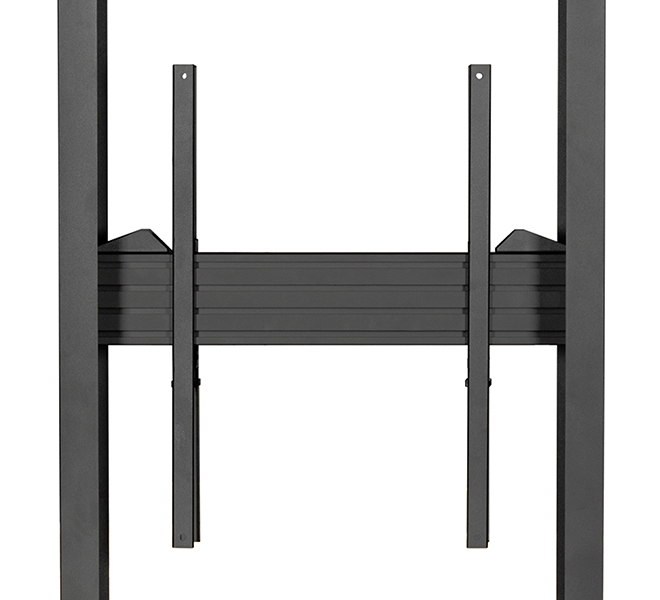

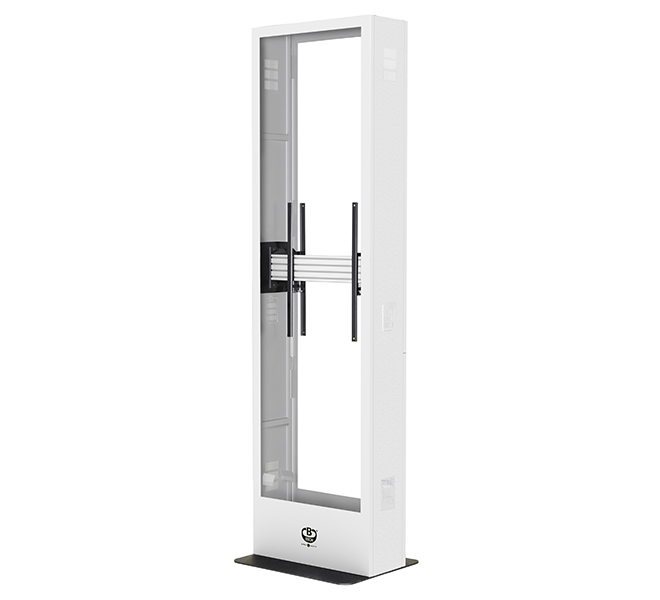

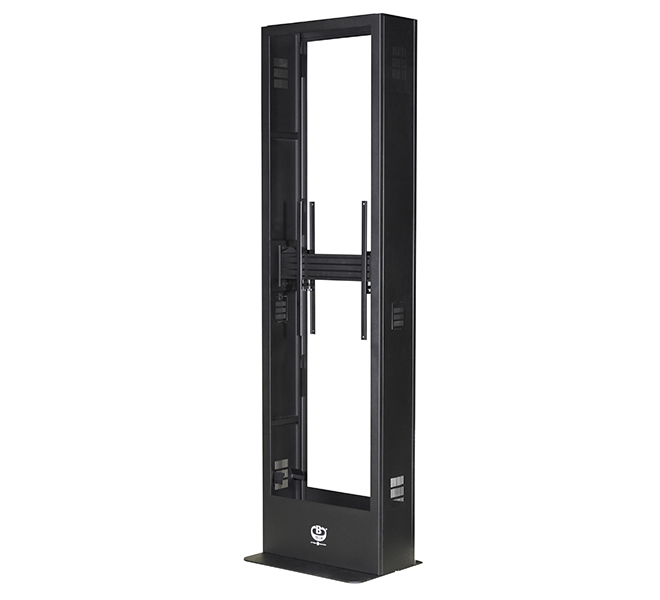

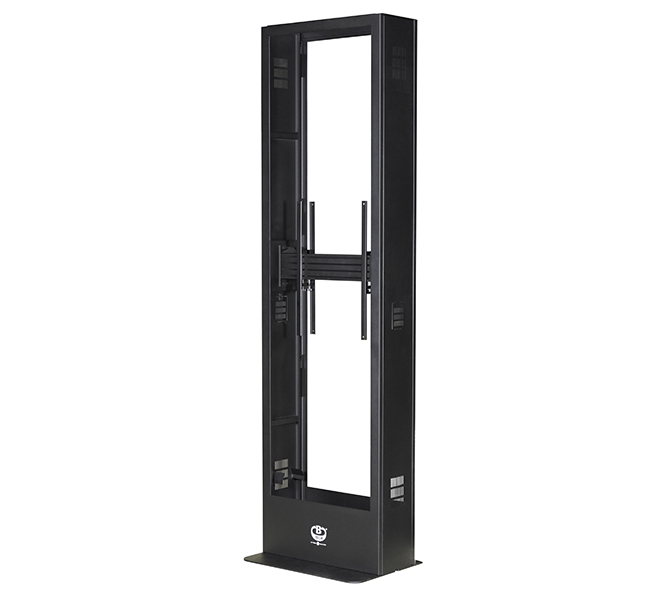

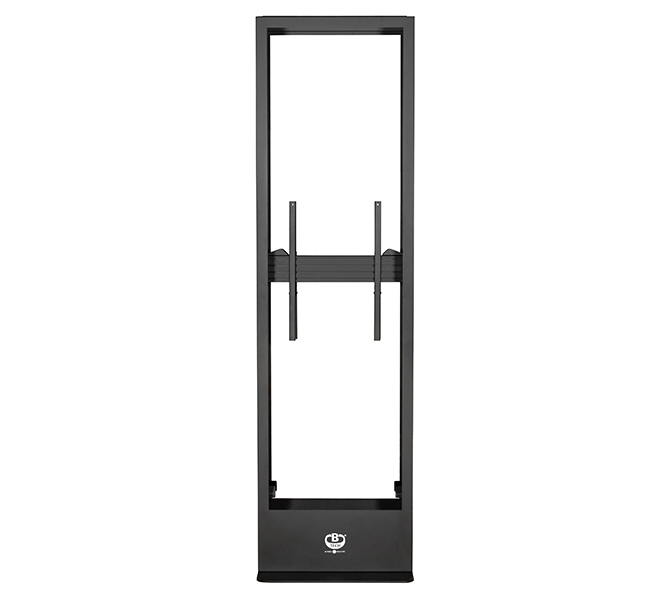

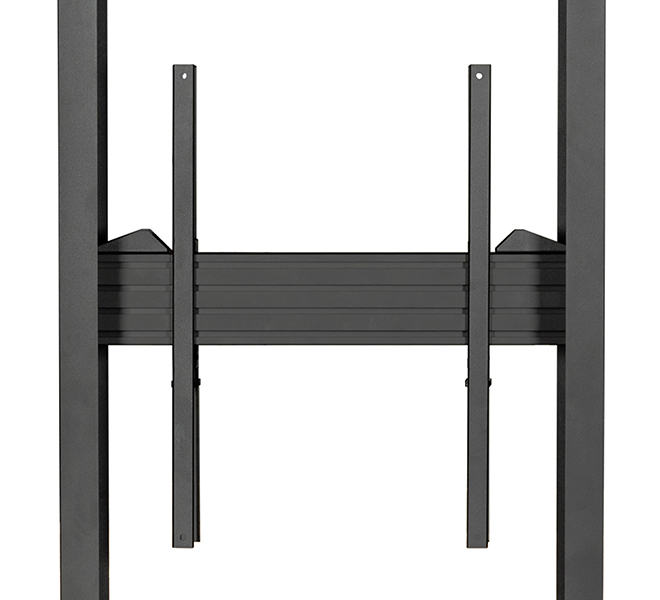

BT7009 - Black Back-To-Back Digital Signage Kiosk BT7009 - Black Back-To-Back Digital Signage Kiosk BT7009 - White Back-To-Back Digital Signage Kiosk BT7009 - Rail

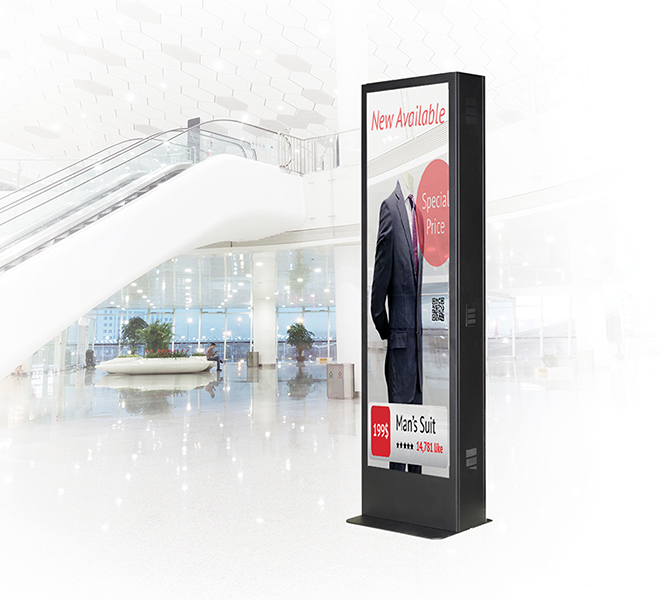

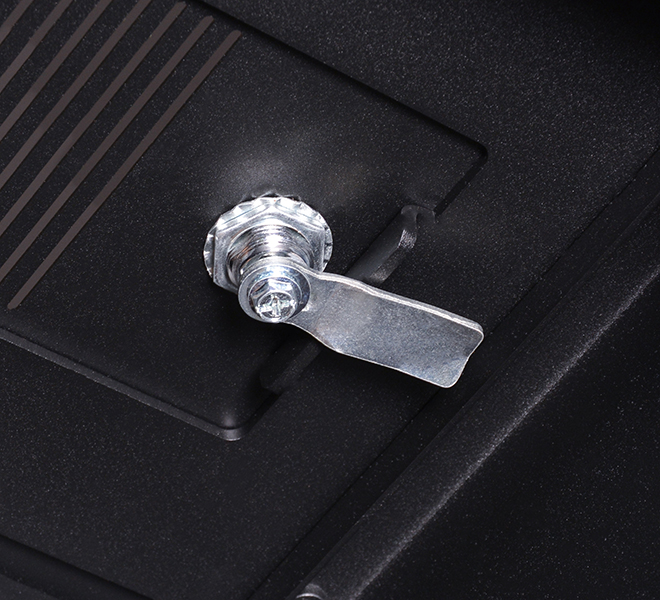

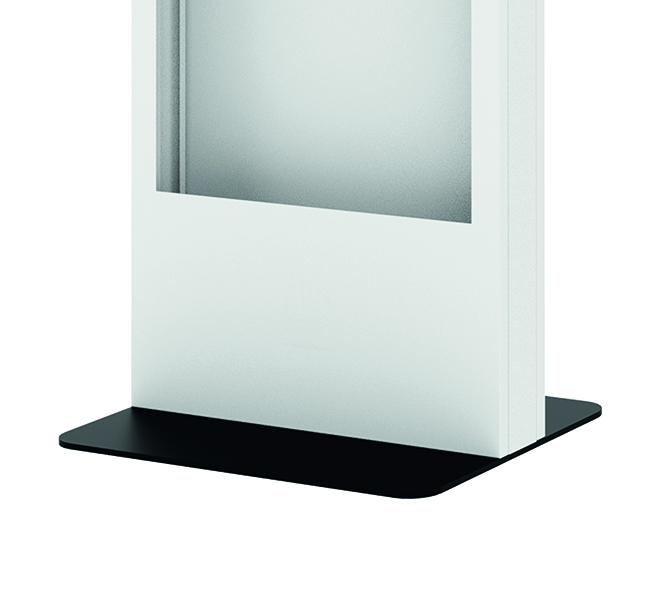

BT7009 - Locking mechanism BT7009 - 8mm base Top panel lock BT7009 - Lifestyle

Specification Sheet

Specification Sheet (PDF)



Technical Drawing

Technical Drawing (PDF)
