Modular Wall Plate

BT7075

 For use with B-Tech Flat Screen Mounts
 & AV shelves



  • Wall plate designed to hold B-Tech flat screen mounts & AV shelves
    when used with the cable manager range
  • Can be used in conjunction with B-Tech’s BT7070 Cable Manager
    or as a standalone mount
  • Cable can pass up / down the wall plate hole (40mm x 20mm) (1.6” x 0.8”)
  • Simple installation with all mounting hardware included
  • Maximum load with screen mount: 25kg (55lbs)
  • Maximum load with shelf: 10kg (22lbs)
  • Designed for use with BT7510, BT7511, BT7521 and BT7522 flat screen mounts or BT7030, BT7036, BT7037, BT7038 and BT7040 component AV shelves

      *Cable manager & flat screen mount available separately



   BT7075 - Modular Wall Plate
  • Wall plate designed to hold B-Tech flat screen mounts & AV shelves when used with the cable manager range
  • Can be used in conjunction with B-Tech’s BT7070 Cable Manager or as a standalone mount
  • Cable can pass up / down the wall plate hole (40mm x 20mm) (1.6” x 0.8”)
  • Simple installation with all mounting hardware included
  • Maximum load with screen mount: 25kg (55lbs)
  • Maximum load with shelf: 10kg (22lbs)
  • Designed for use with BT7510, BT7511, BT7521 and BT7522 flat screen mounts or
    BT7030, BT7036, BT7037, BT7038 and BT7040 component AV shelves

     *Cable manager & flat screen mount available separately
  • Max Weight with Shelf: 10kg (22lbs)
  • Max Weight with Screen Mount: 25kg (55lbs)
  • Colours Available: Silver or White
  • Cable Hole:40mm x 20mm (1.6” x 0.8”)
  • Registered Design Number: 4010384

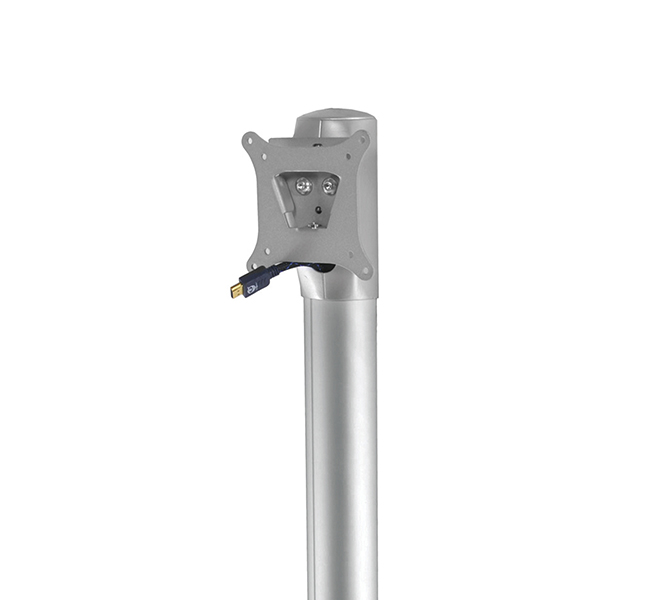

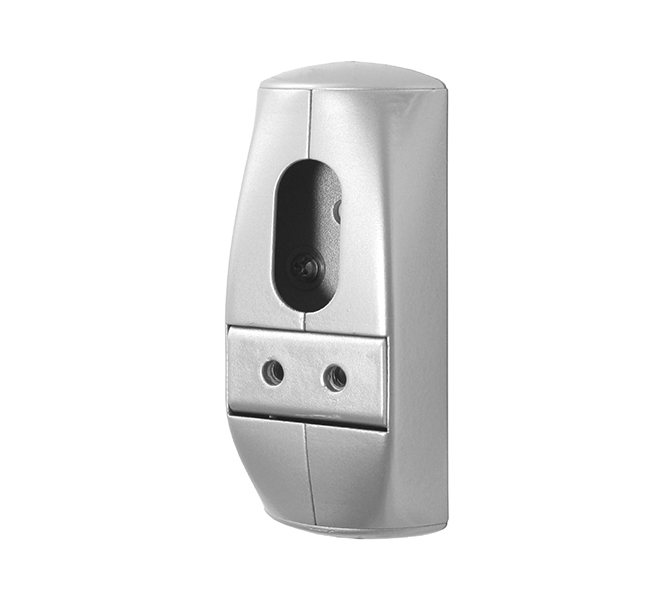

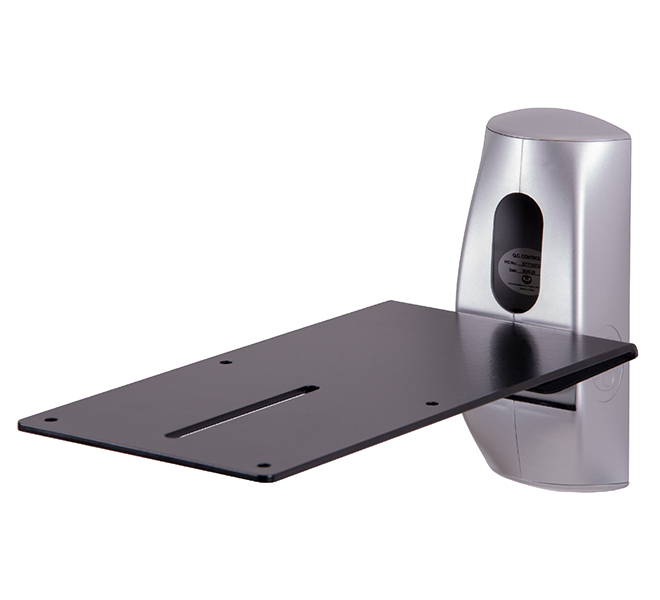

BT7075 - Modular Wall Plate - Front View BT7075 - Modular Wall Plate - with BT7510 & BT7070 BT7075 - Modular Wall Plate - with BT7863 VC Plate

Assembly Leaflet (PDF)
