VESA Adaptor Plate

BT7502

For 200 x 200mm & 200 x 100mm
VESA Mounting Patterns



  • Adaptor plate for flat screens which have holes in 200 x 200mm
    or 200 x 100mm patterns
  • Simple installation with all mounting hardware included
  • Must be used with a 75 x 75mm, 100 x 100mm and/or 200 x 100mm screen mount (BT7510 / BT7511 / BT7512 / BT7513 / BT7518 / BT7521 / BT7522)

      *Actual screen size and weight limit dependent on mount to which
        BT7502 is attached



  BT7502 - VESA Adaptor Plate
  • Adaptor plate for flat screens which have holes in 200 x 200mm or 200 x 100mm patterns
  • Simple installation with all mounting hardware included
  • Must be used with a 75 x 75mm, 100 x 100mm and/or 200 x 100mm screen mount
    (BT7510 / BT7511 / BT7512 / BT7513 / BT7518 / BT7521 / BT7522)

      *Actual screen size and weight limit dependent on mount to which BT7502 is attached

  • VESA Compatibility: 200 x 100, 200 x 200
  • Colours Available: Black
  • Community Design Number: 001713280-0001

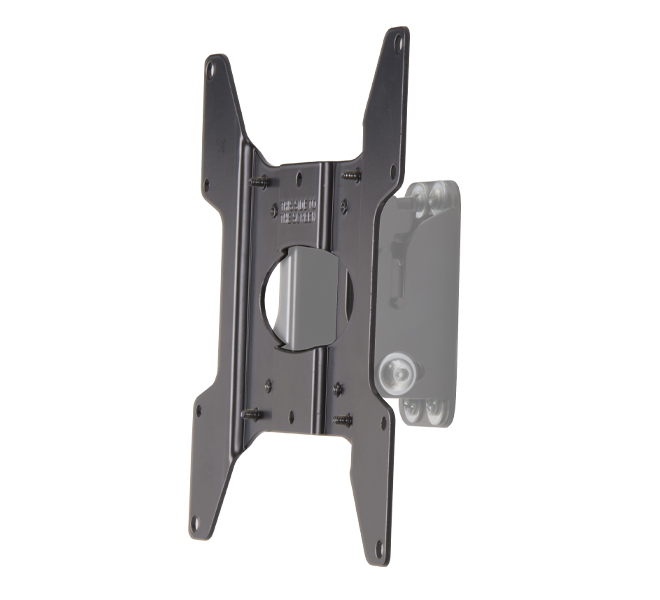

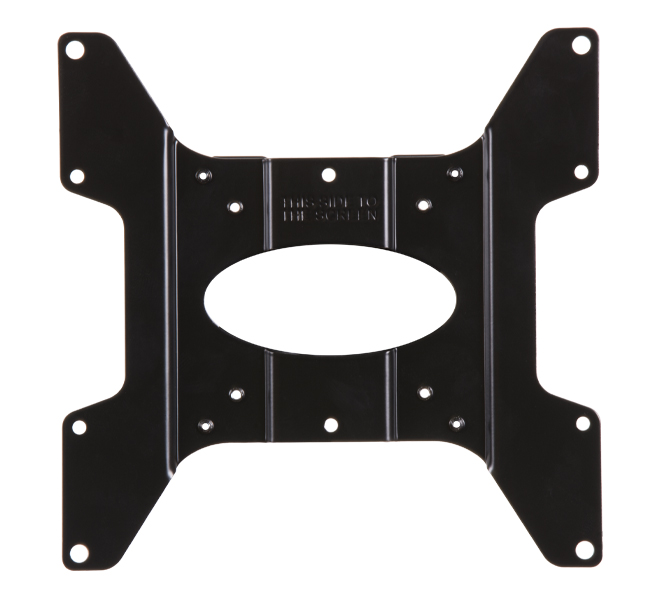

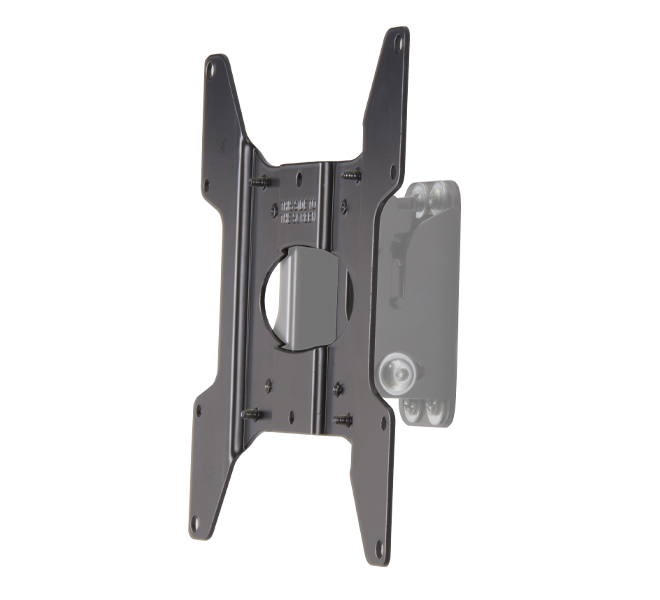

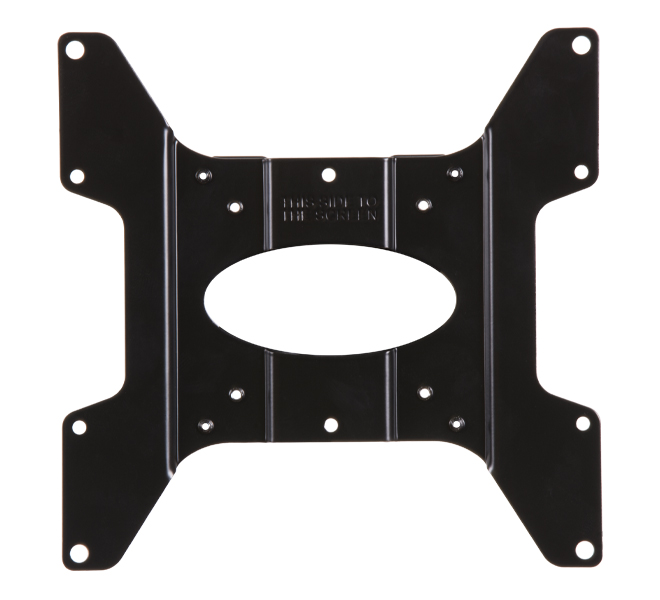

BT7502 - VESA Adaptor Plate- Front View BT7502 - VESA Offset Adaptor Arms - Side View

Assembly Leaflet (PDF)
