Non-VESA Flat Screen Adaptor Plate

BT7505

For non-VESA Screens to 75 x 75mm
& 100 x 100mm VESA Mounting Patterns



  • Universal adaptor kit to allow fitting of non-VESA screens to
    75mm x 75mm and 100mm x 100mm VESA mounts
  • Simple installation with all mounting hardware included
  • Must be used with a 75 x 75mm or 100 x 100mm screen mount
    (BT7510 / BT7511 / BT7512 / BT7513 / BT7518 / BT7521
    / BT7522 / BT7514 / BT7515 / BT7532)
   BT7505 - Non-VESA Flat Screen Adaptor Plate
  • Universal adaptor kit to allow fitting of non-VESA screens to 75mm x 75mm and 100mm x 100mm VESA mounts
  • Simple installation with all mounting hardware included
  • Must be used with a 75mm x 75mm or 100mm x 100mm screen mount
    (BT7510 / BT7511 / BT7512 / BT7513 / BT7518 / BT751 / BT7521 / BT7522 / BT7514 / BT7515/ BT7532)
  • Screen Size: up to 40” (102cm)
  • Max. Weight: 40kg (88lbs)
  • Max. Dist. Between Fixings: H: 123mm (4.8”) - 570mm (22.4”) V: 300mm (11.8”)
  • VESA Compatibility: 200 x 200, 300 x 200, 300 x 300, 400 x 200
  • Colours Available: Black, Silver

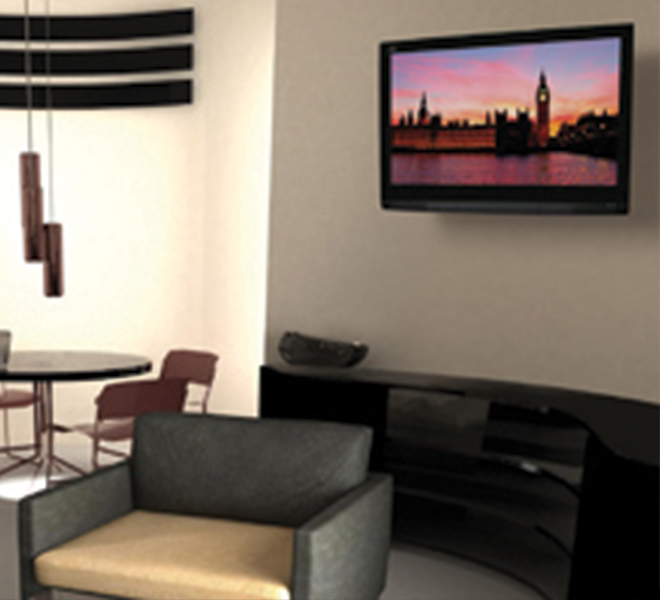

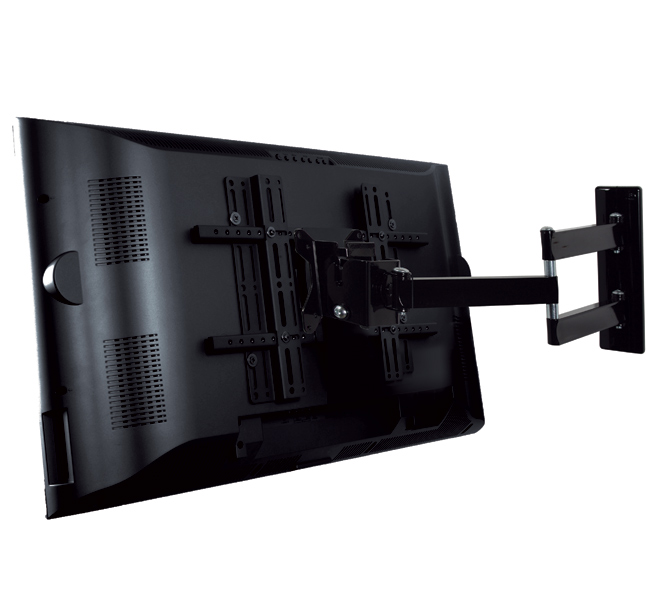

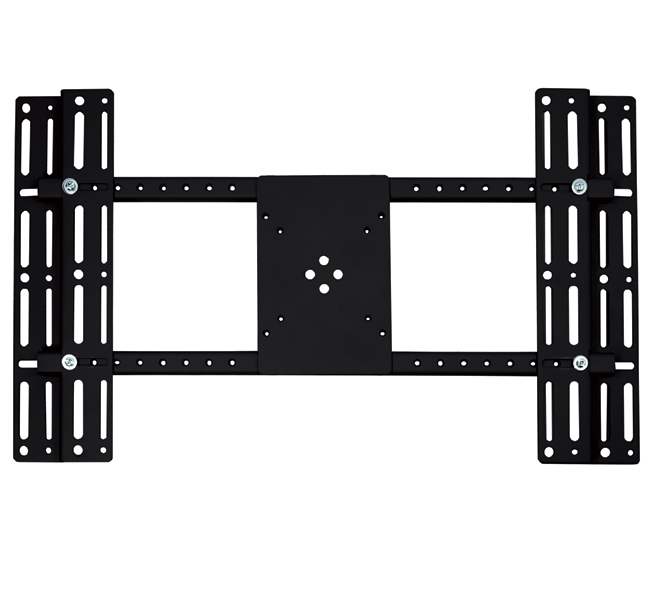

BT7505 - Non-VESA Flat Screen Adaptor Plate - Front View BT7505 - Non-VESA Flat Screen Adaptor Plate - with Screen BT7505 - Non-VESA Flat Screen Adaptor Plate - Lifestyle Image

Installation Guide

Installation Guide (PDF)
