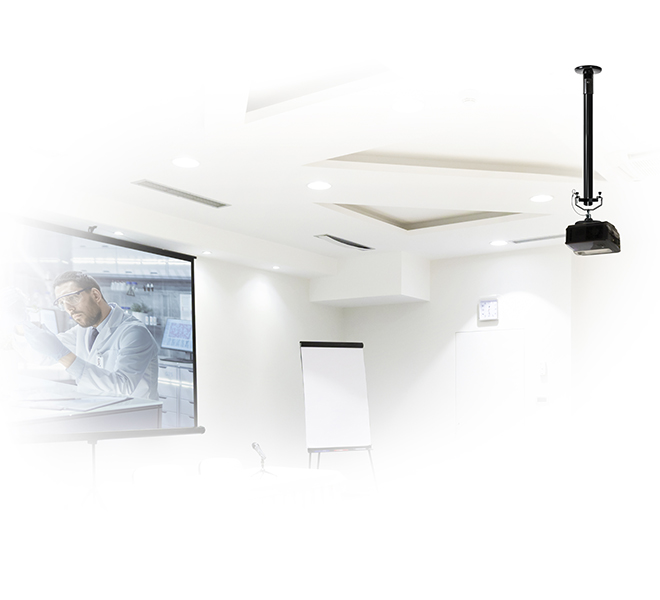

• Universal mount to fit LCD / DLP projectors

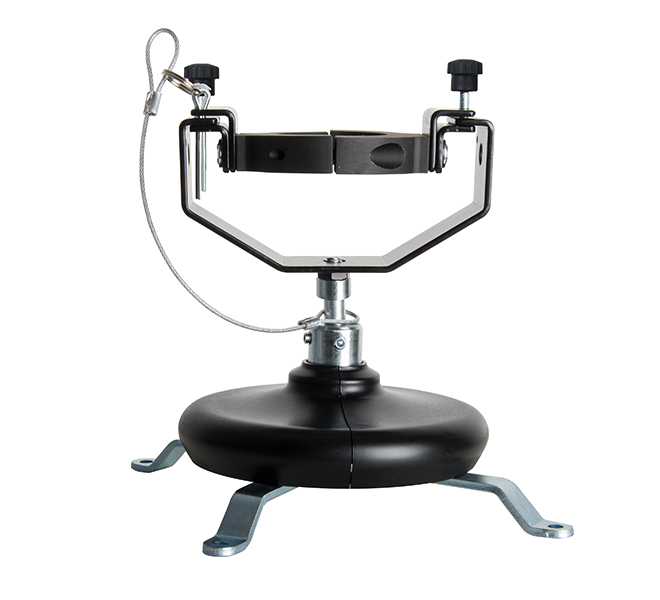

• Unique carousel mount for simple installation with all mounting hardware included
• Maximum distance between any 2 fixing points: 343mm (13.5”)
• Cover plates included for smart installation
• Suitable for projectors using M3, M4, M5 and M6 fixings
• Actual weight limit dependant on mount to which BT7819-888 is attached

• Max Weight: 10kg (22lbs)
• Max tilt and swivel at ball joint bracket: 37° in any direction
• Max horizontal rotation on the carousel mount: 360°
• Max Dist between Fixings: 340mm (13.4”)
• Colours available: Black

Assembly Leaflet (PDF)

Technical Drawing (PDF)

Technical Drawing (DXF)
