Ultra-Slim Universal Flat Screen Wall Mount

BT8200

For Medium Screens




Designed for medium sized screens up to 40kg, the ultra-slim BT8200 mounts screens just 14mm from the wall and features post installation screen alignment, B-Tech's "On Wall Levelling System" and simple 'hook-on' installation to make screen mounting as quick and simple as possible. The BT8200 also features B-Tech's patented 'Torsion-Lock' security to help prevent un-authorised removal of the screen. All mounting hardware included.






  • Ultra-slim design mounts screens only 14mm from the wall
  • Patented 'Torsion-Lock' security helps prevent un-authorised removal of the screen
  • Features OWLS™ (On Wall Levelling System) to allow the wall plate to be levelled
    once mounted, eradicating the need to re-drill the wall
  • Suitable for concrete or brick walls
  • Post installation screen alignment for perfect screen positioning
  • Low profile coach screws to allow the arms to slide, unobstructed along the rail
  • Security locking screws, Allen key and locking bars provided for a secure installation
  • Simple ‘hook-on’ installation
  • All mounting hardware included
  • Recomended screen size: up to 47” (119cm)
  • Max load: 40kg (88lbs)
  • Unversal fixings: up to 240 x 200
  • VESA® compatibility: up to 200 x 200

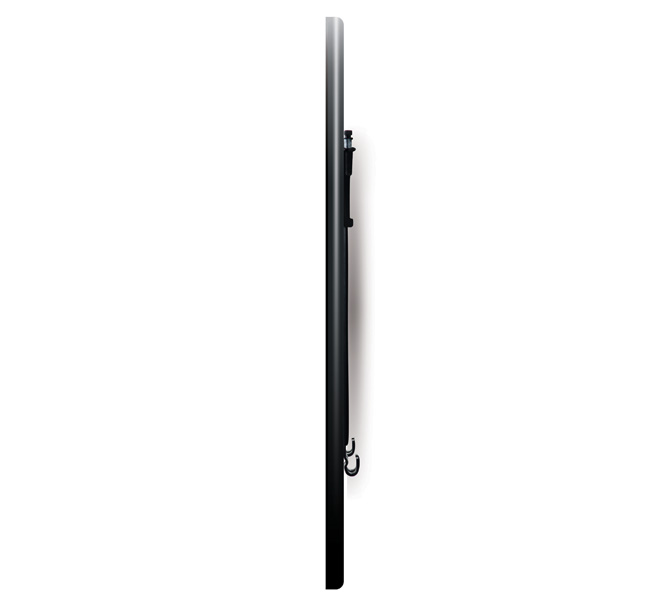

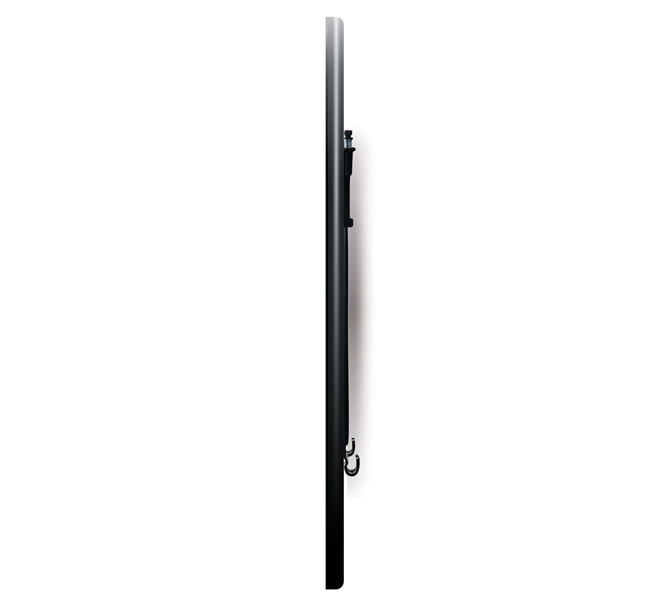

  • Distance from wall: 14mm (0.5")
  • Colour: Black
BT8200-PRO Ultra-Slim Flat Screen Wall Mount BT8200-PRO Ultra-Slim Flat Screen Wall Mount - with Screen BT8200-PRO Ultra-Slim Flat Screen Wall Mount - Ultra-Slim design BT8200-PRO - Ultra-Slim Flat Screen Wall Mount - Lifestyle Image

Specification Sheets

Specification Sheet - English (PDF)

产品规格书 — 中文(PDF)

Fiche de spécifications - Français (PDF)

Specificatieblad - Nederlands (PDF)

Hoja de especificaciones - Español (PDF)

Spezifikationsblatt - Deutsch (PDF)



Installation Guides

Installation Guide (PDF)



Technical Drawings

Technical Drawing (PDF)

Technical Drawing (DXF)
