Full Service Videowall Mount

BT8300

With Micro-Adjustment




Designed to make videowall installations as simple as possible, this modular videowall mount can be used to create unlimited videowall configurations in both landscape and portrait format. The BT8300 has a low profile design, ideal for mounting into walls with a shallow recess or when space in front of the wall is minimal. The pop-out system enables quick and easy access to the rear of mounted screens for servicing and maintenance and +/-4mm micro-adjustment makes accurate screen alignment quick and easy.








  • Slim design ideal for low profile installs on walls or in shallow recesses

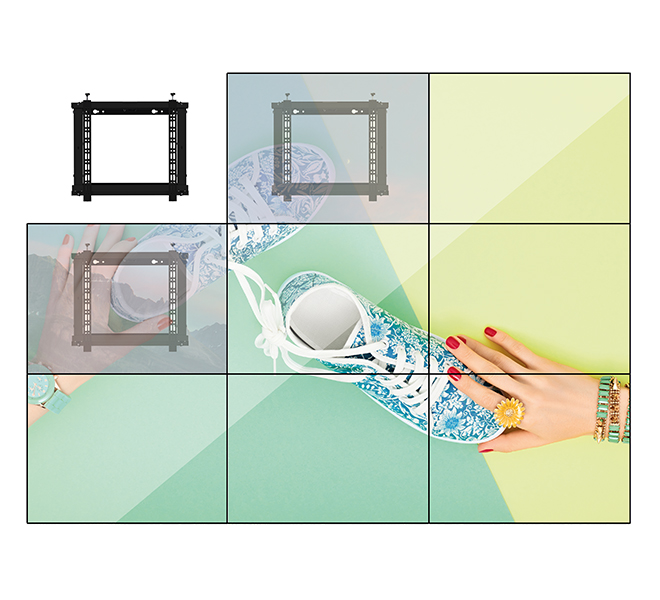

  • Modular mount allows videowall assembly in an unlimited number of configurations
  • Suitable for landscape or portrait screen mounting

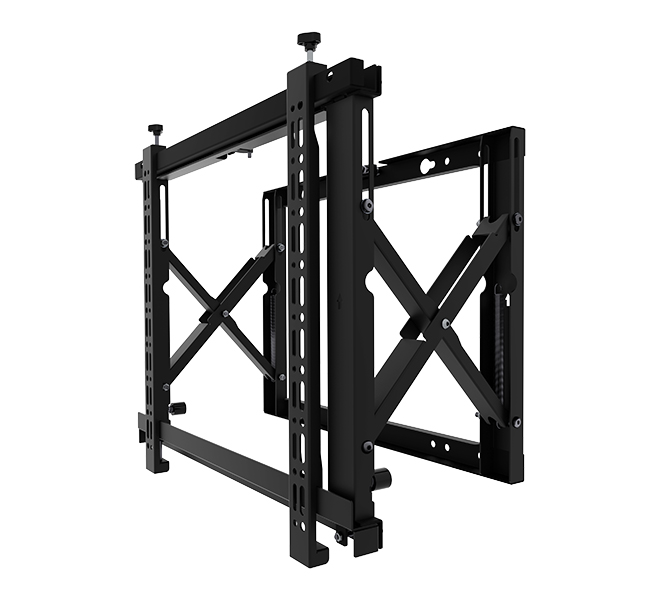

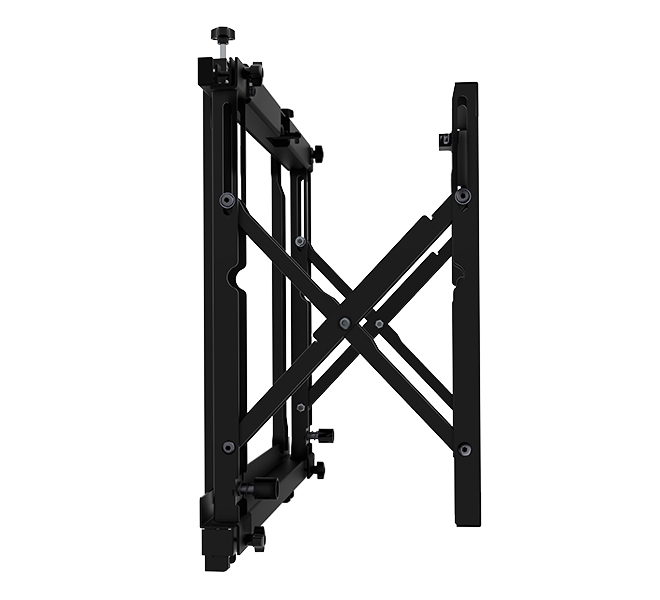

  • Push to open / push to close system provides quick and easy service access
  • Lateral adjustment of screen once mounted
  • Compatible with B-Tech's collar and pole system for pole mounting screens
  • Safety screws help prevent unauthorised removal of screens
  • All mounting hardware included
  • Recommended screen size: 42" - 70" (46" - 70" in portrait)
  • Max load: 35kg
  • VESA® compatibility: up to 400 x 400
  • Universal fixings: up to 442 x 436mm
  • Depth flat: 77.5mm (+/-4mm with micro-adjustment)
  • Depth popped out: 265mm (+/-4mm with micro-adjustment)
  • Screen height adjustment: +13mm

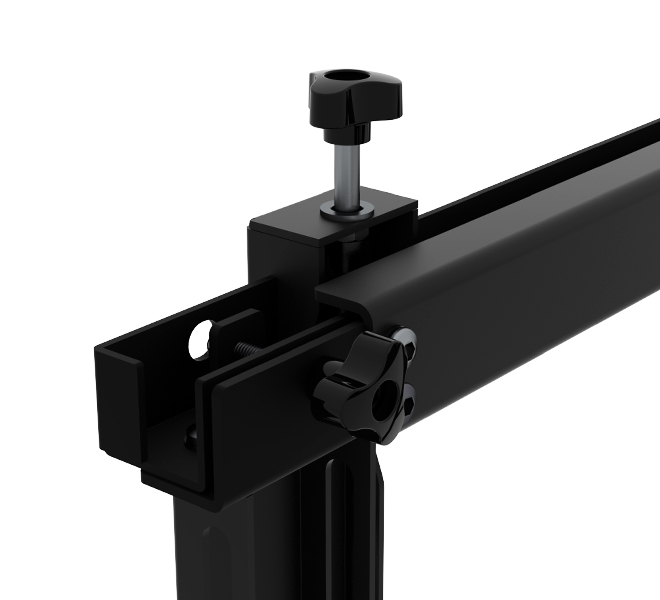

Pop-out system provides quick and easy service access Pop-out system provides quick and easy service access Tool less micro-adjustment for a seamless display alignment Modular mount allows videowall assembly in an unlimited number of configurations
