Pop-In, Pop-Out Free Standing Video Wall Mount

BT8351

For Screens up to 50kg (110lbs)

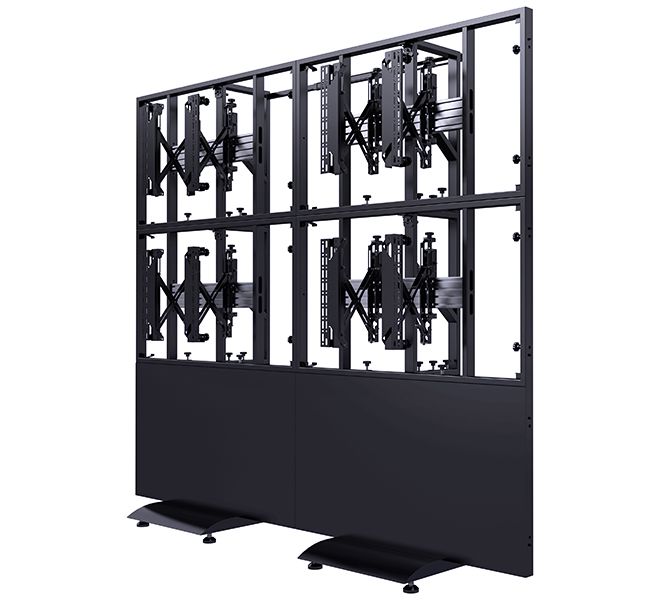

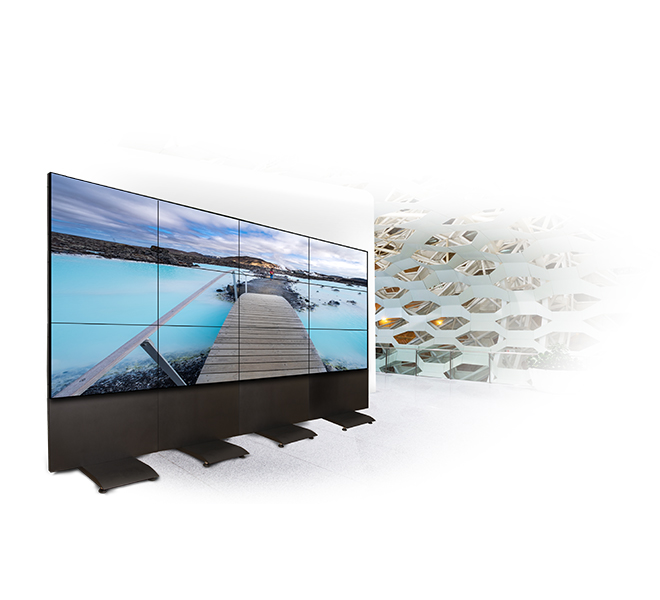

The BT8351 is a modular freestanding video wall mounting system. Available for use in both landscape and portrait configurations, the BT8351 can be used for installations up to 7 rows high and as many columns wide as desired. The modular design and captive, fast-fit connectors make assembly and disassembly of video walls extremely quick and easy whilst 8 point tool-less micro-adjustment allows screens to be perfectly aligned with ease. Pop-out functionality is also included to make installation and servicing of screens even easier.





Configurator Coming Soon





BT8351 Modular Free Standing Video Wall Mount - Pop-in, Pop-Out Solution

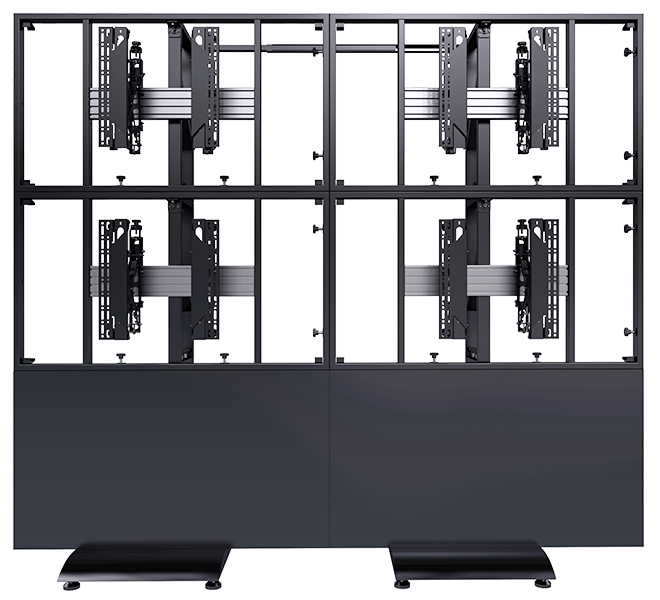

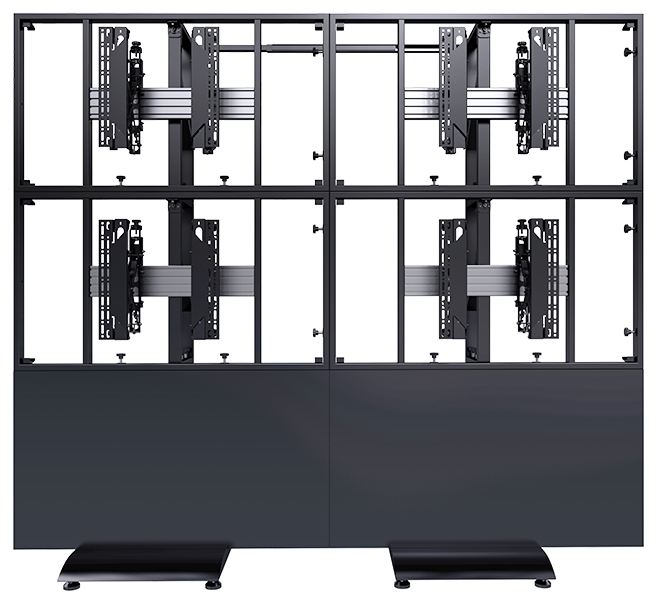

  • Modular design allows quick and easy assembly and disassembly of video walls - perfect for rental applications
  • Order to your exact requirements, anything from 2x2 to 70x7!

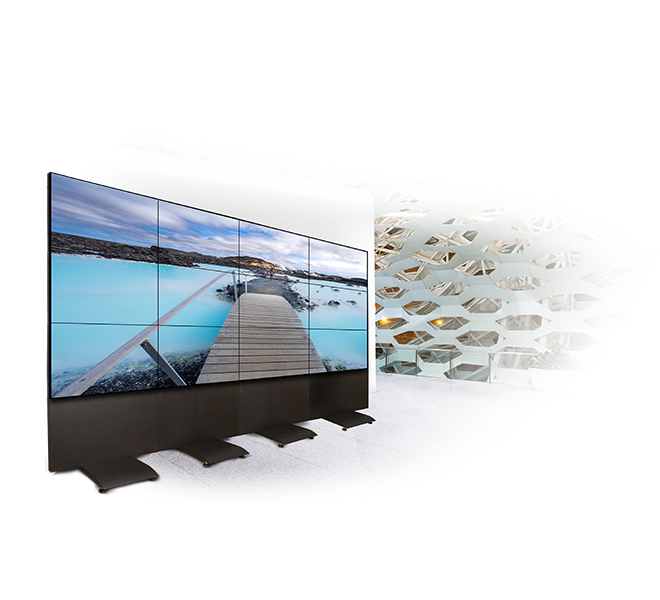

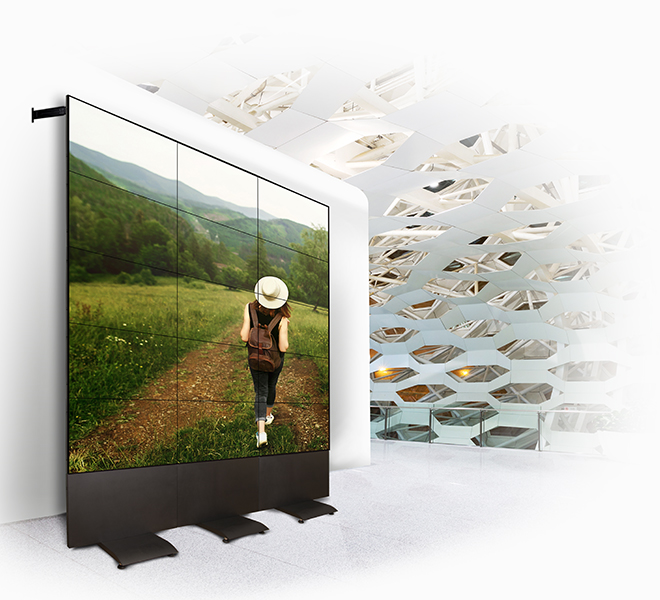

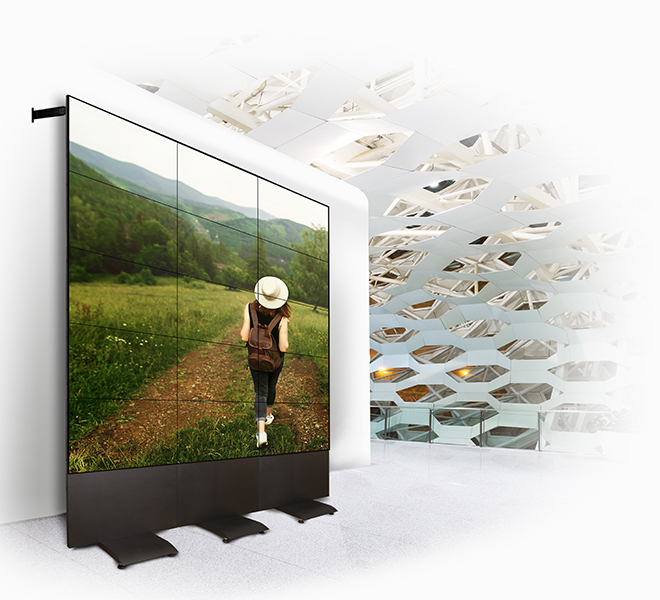

  • Available in both landscape and portrait orientation**

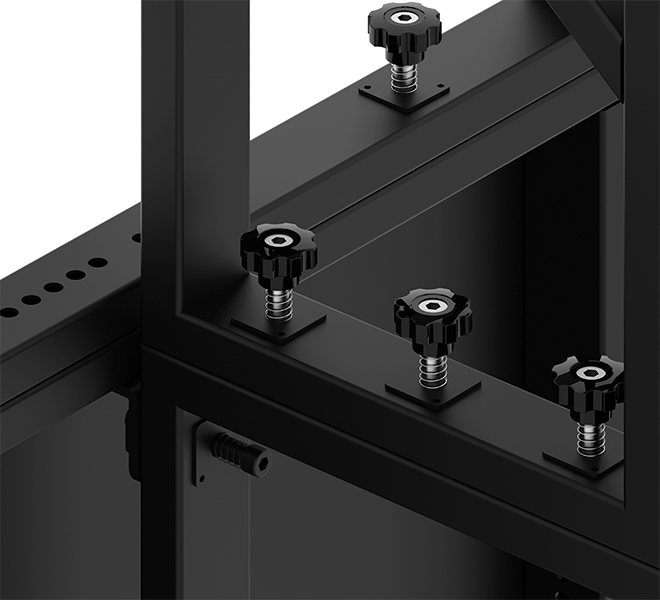

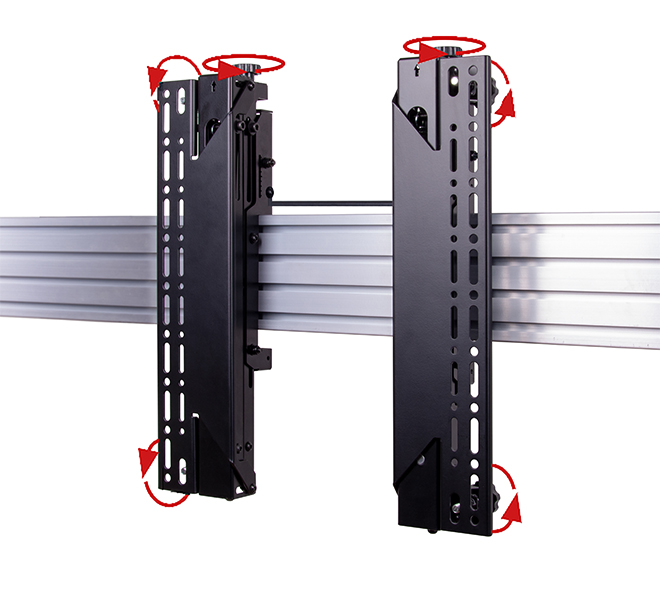

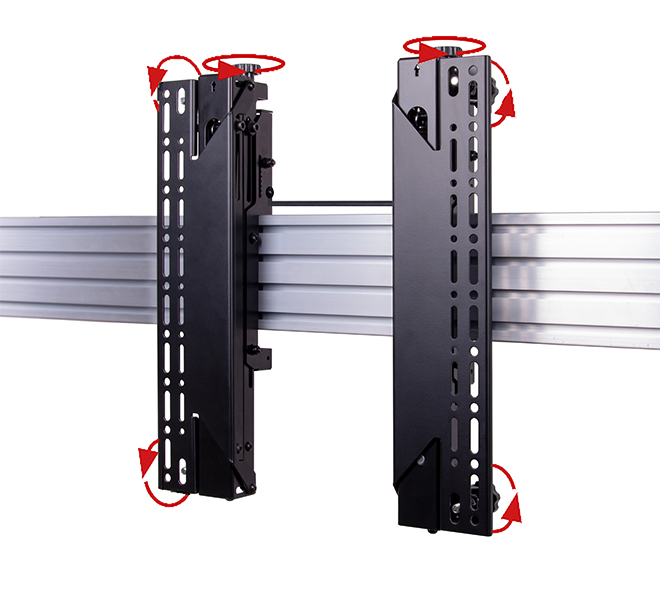

  • Tool-less micro-adjustments at 8 points for seamless display alignment
  • System X mounting interface allows use of different interface arms to suit your
    needs - pop-out, tilt or fixed (see BT8350)
  • Vanity covers are included as standard

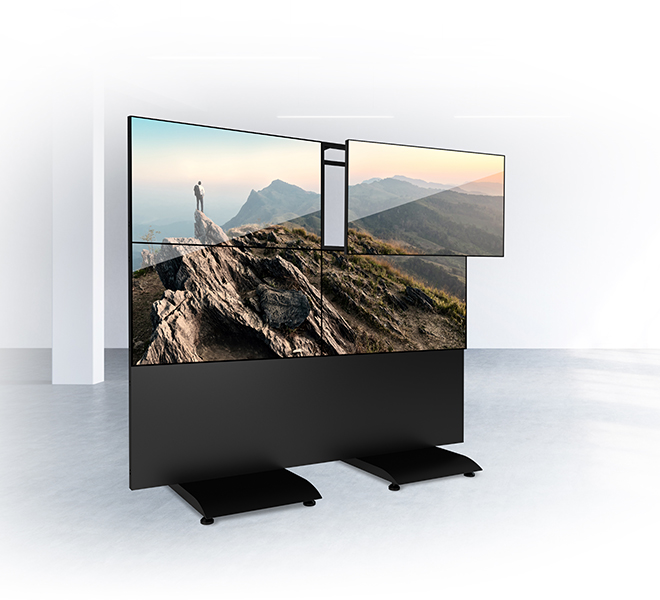

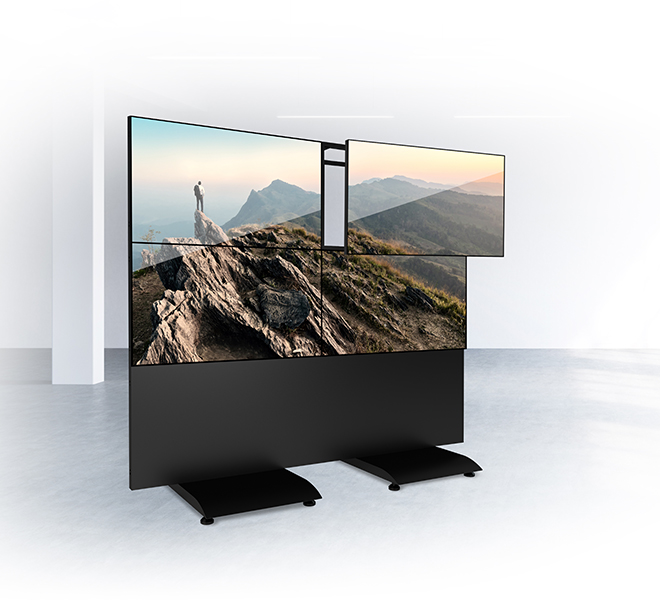

  • Features pop-in, pop-out function to allow access to the rear of screens
    for servicing and maintenance and to aid installation

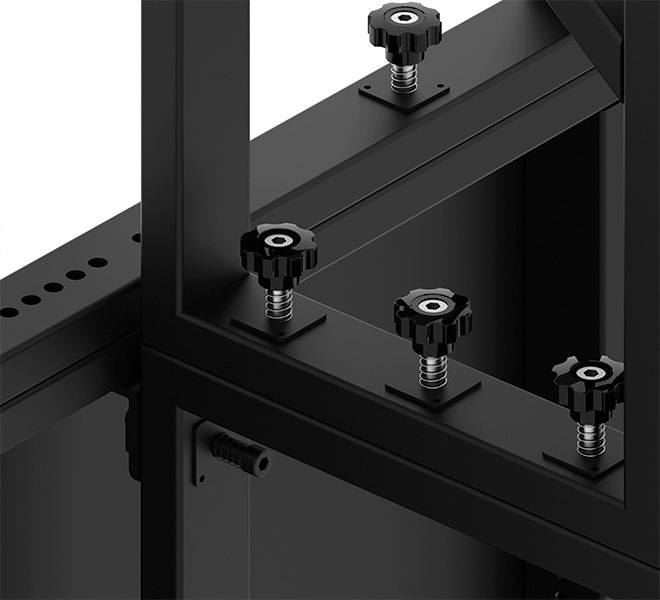

  • Captive handwheels and screws make assembly and disassembly quick and easy
  • Durable Epoxy powder coated frame is ideal for repeated assembly
  • Safety screws help prevent unauthorised removal of screens

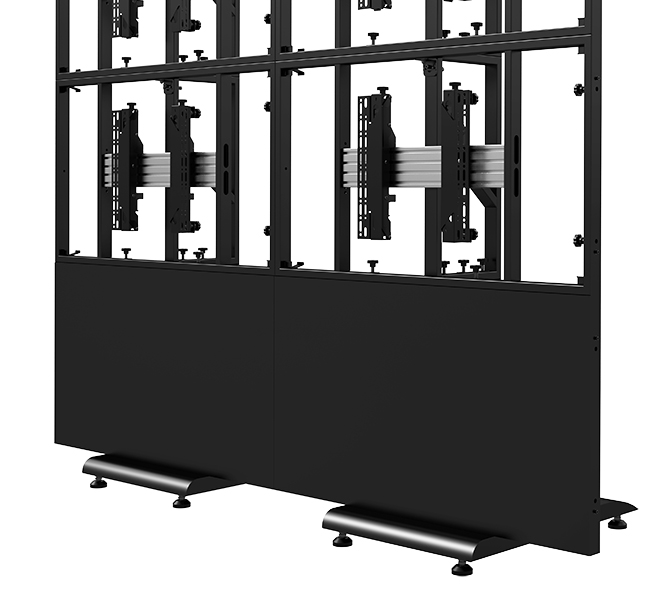

  • Base sections can be reversed if desired
    (ballast support or bolt down kit must be added)
  • All mounting hardware included

    **Landscape / portrait must be specified when ordering, a landscape kit can be used in portrait orientation with a few additional parts

  • Available for 3 Screen Sizes: 46" 49" and 55"
  • Max Weight: 50kg (110lbs) per monitor
  • VESA Compatibility: 200 x 200 up to 600 x 400*
  • Maximum structure limits
    Columns: Unlimited
    Rows:
    7 with 46" screens in landscape
    6 with 49" or 55" screens in landscape
    3 with 46", 49" or 55" screens in portrait
  • Colour available: Black

    *BT7564 Adapter will be supplied when the VESA pattern is 600. This will add 6mm to depth of interface arms
BT8351 Modular Free Standing Video Wall Mount - Pop-in, Pop-Out Solution BT8351 Modular Free Standing Video Wall Mount - Pop-in, Pop-Out Solution BT8351 Modular Free Standing Video Wall Mount - Pop-in, Pop-Out Solution BT8351 Modular Free Standing Video Wall Mount - Pop-in, Pop-Out Solution
BT8351 Modular Free Standing Video Wall Mount - Modular design allows quick and easy assembly BT8351 Modular Free Standing Video Wall Mount - Pop-in, Pop-Out Solution

Installation Video

BT8351 video coming soon. For an indication of how the system is assembled please refer to the BT8350 video
