System X™ Column Extension Kit

BT8380-EXTV

 For Taller Installs

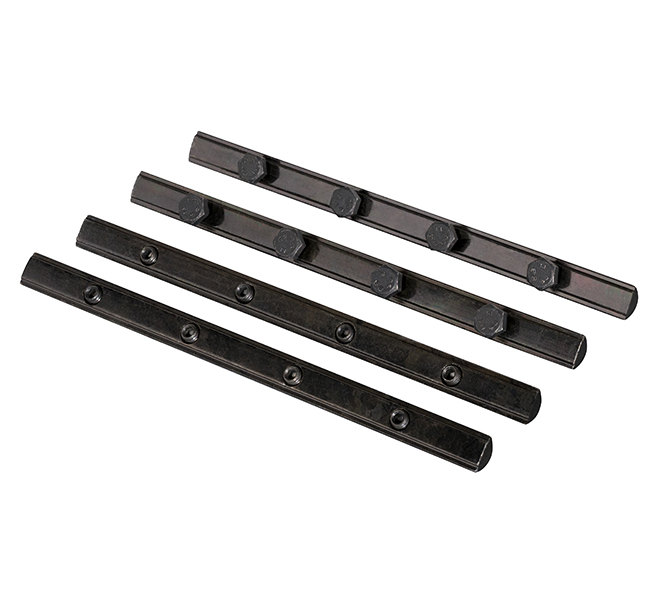

The BT8380-EXTV is an extension kit designed to extend vertical columns to a desired height, perfect for creating extra tall video walls and other digital signage installations. The kit consists of 4 steel joining bars which fit into the channels inside the column. The joining bars are then held firmly together using the internal grub screws and hex bolts. The underside of the joining bars feature spring-loaded bearings which allows the bars to move easily into their fixed position.



TUV Logo






  • Combines BT8380 Vertical Support Columns to create taller installs
  • Spring-loaded bearings allow the joining bars to move easily into position

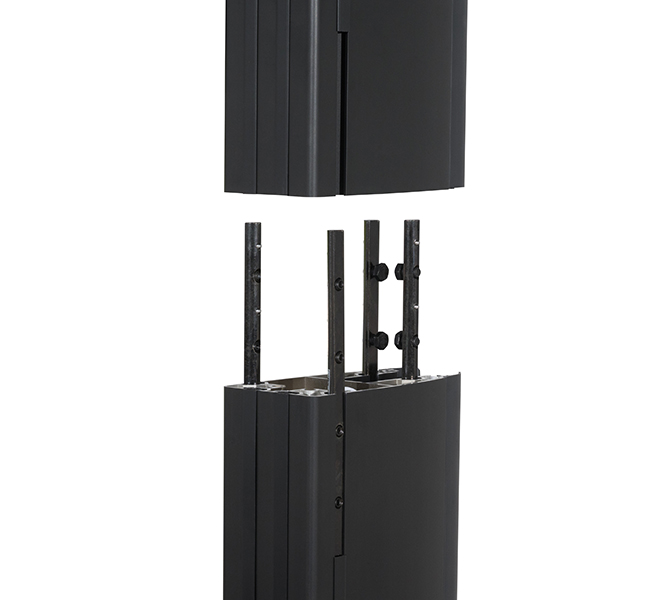

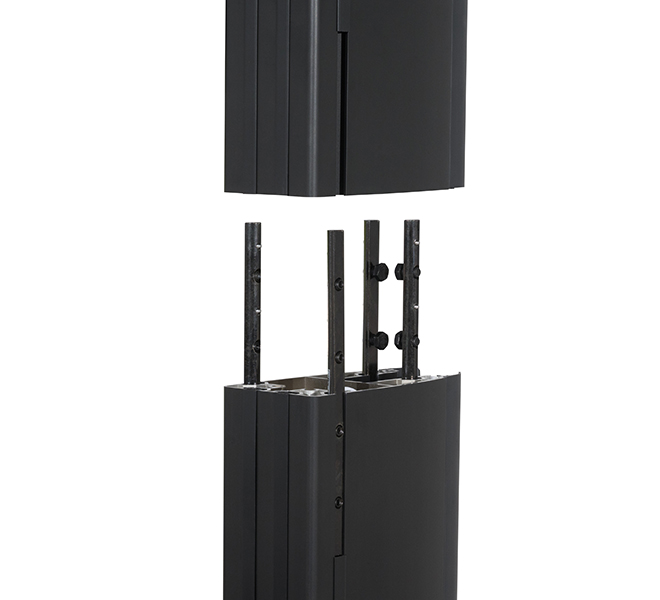

  • Columns slide easily into position to create a seamless join
  • Securely lock the columns in place using the internal grub screws

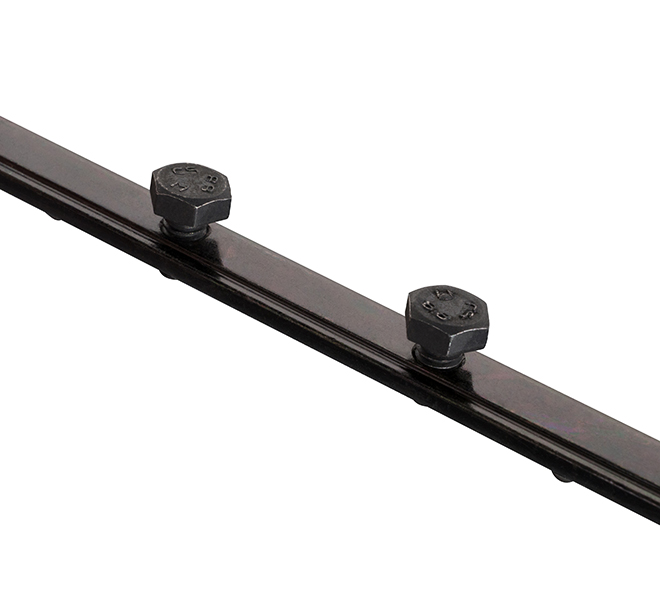

  • Includes 2 bars with hex bolts to make rear assembly quicker
  • TUV certified
  • Joining bars per kit: 4

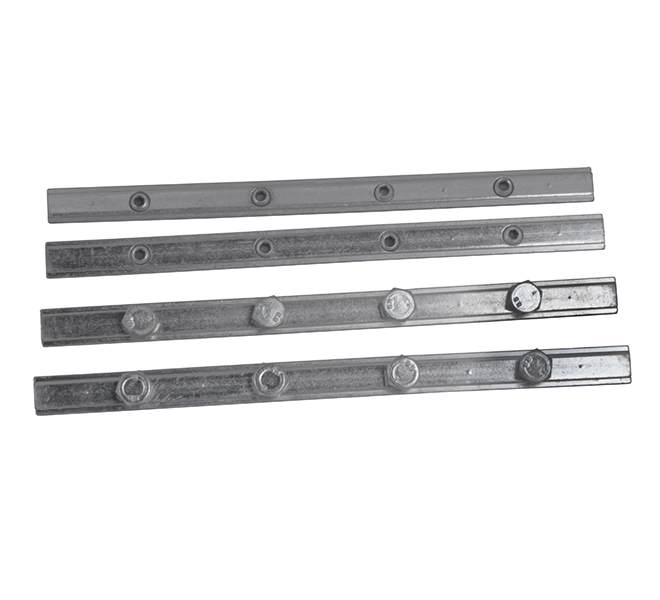

  • Colour: Silver or Black
Seamless finish maintains the premium quality of the product

Specification Sheet

Specification Sheet (PDF)



Installation Guide

Installation Guide (PDF)



Technical Drawing

Technical Drawing (PDF)

Technical Drawing (DXF)
