System X™ Mounting Adaptor Plate


For pole mounted installations


The BT8390-ADP is an adaptor plate which allows a range of B-Tech flat screen wall and desk mounts to be fitted onto System X™ mounting rails. This is ideal for assembling multi-screen installations using small screens or for setting up multiple work stations in a side-by-side or back-to-back format. To attach small flat screens onto a rail, the BTV112, BTV113, BTV114, BTV502, BTV503 & BTV504 can be fitted directly to the BT8390-ADP plate, which in turn fits onto any BT8390 rail. Also compatible is the BT7399 Wall Mounting Adaptor, which allows B-Tech desk mounts to be fitted to the BT8390-ADP plate and then onto System X rails.



  • Mount a range of ‘standard’ B-Tech wall mounts or desk arms to System X mounting rails
    to create a wide variety of different installations
  • Ideal for creating multi-screen setups of any size
  • Can be positioned anywhere along the rail for perfect screen positioning
  • Suitable for single or back-to-back solutions (multiple BT8390-ADP required)
  • Allows screens to be mounted in either portrait or landscape orientations
  • Retains all Full Motion functionality when used with B-Tech Full Motion desk mounts
    for easy adjustment of mounted screens in any direction
  • Quick and simple installation
  • Steel thickness: 5mm (0.2")
  • Plates supplied: 1
  • Colour: Black

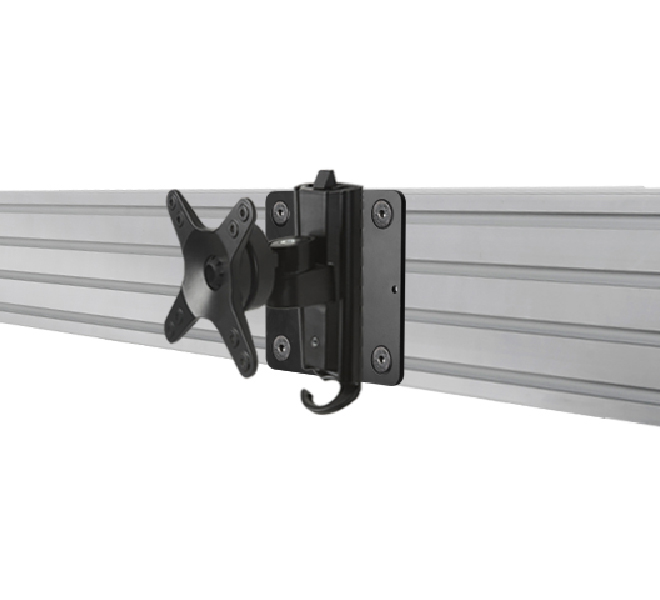

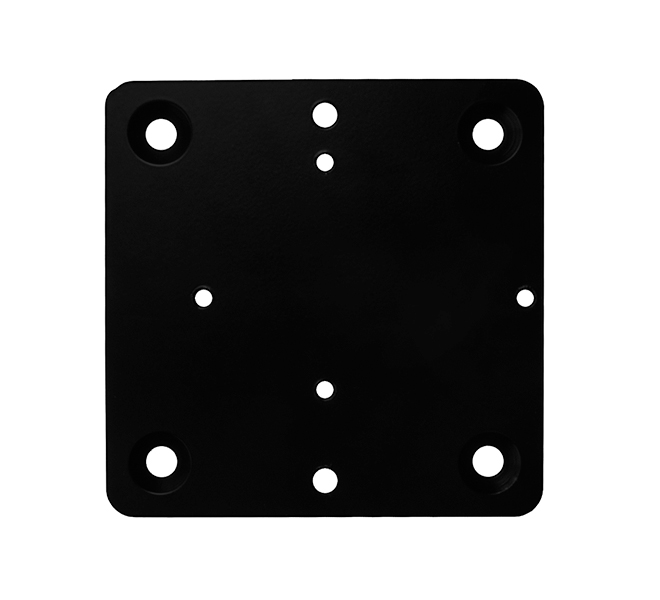

BT8390-ADP BT8390-ADP BT8390-ADP mounting the BTV112
