System X™ Universal Interface Arms

BT8390-VESA800F

For XL Screens




These interface arms are designed to mount XL screens in a fixed position across one or two System X horizontal mounting rails. The universal design is compatible with a variety of different screens and allows them to be mounted in either landscape or portrait orientations. Levelling screws on each interface arm provide post installation height adjustment and a mounted depth of 51.5mm from the wall allows easy access for cables and connectors.







  • Heavy duty arms capable of supporting substantial loads
  • Suitable for landscape or portrait mounting
  • Can be mounted across single or dual horizontal mounting rails to suit the application
  • Lateral adjustment - position arms anywhere along the length of the rail
  • Includes levelling screws to adjust the screen height
  • Safety screws help prevent unauthorised removal of screens
  • Simple ‘hook-on’ installation
  • Recommended screen size (landscape) 72" and over
  • Recommended screen size (portrait) 42" and over
  • Max load (single rail mounting): 70kg
  • Max load (twin rail mounting): 200kg
  • VESA® & non-VESA fixings up to 800mm* (vertical dimension)
  • Depth FROM WALL (when rail mounted): 51.5mm
  • Colour: Black
  • Supplied in pairs

    *The VESA specification of the BT8390-VESA800F refers to the vertical dimension only. All System X interface arms can be positioned as far along the rail as necessary.

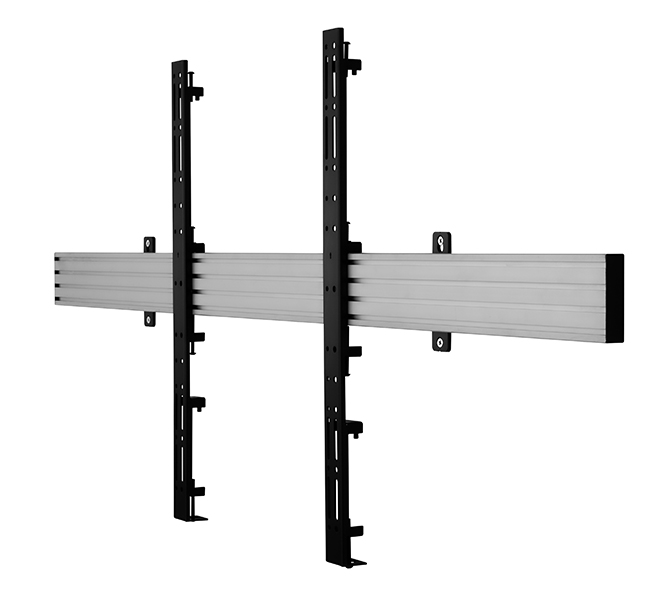

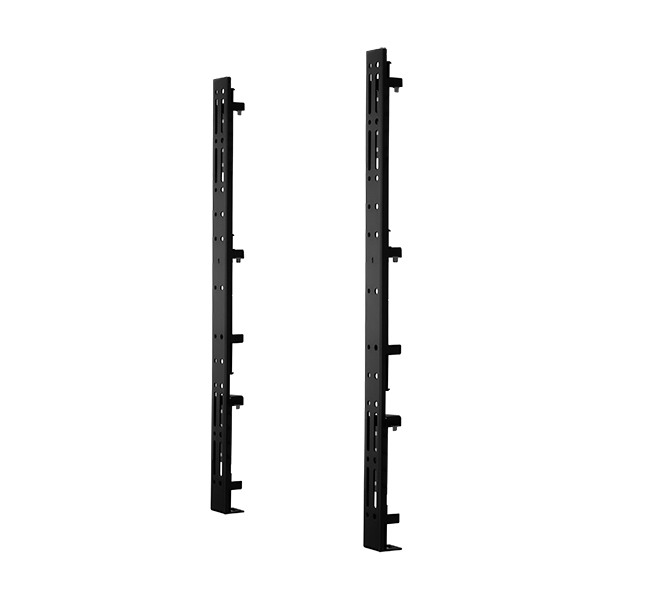

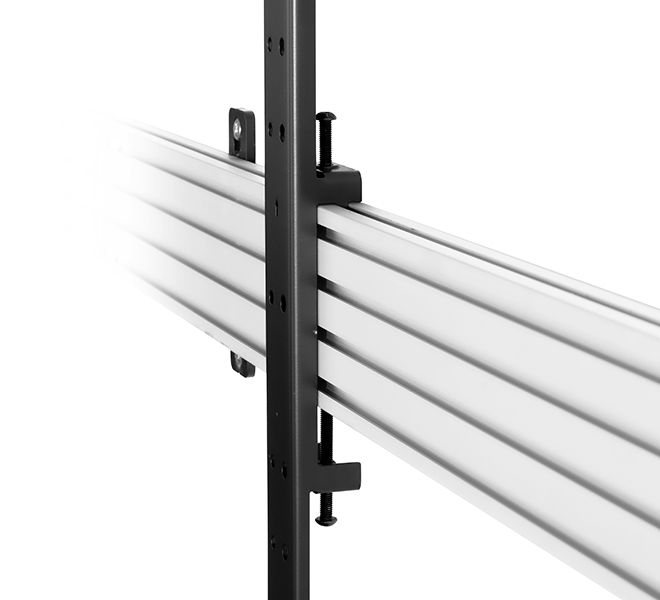

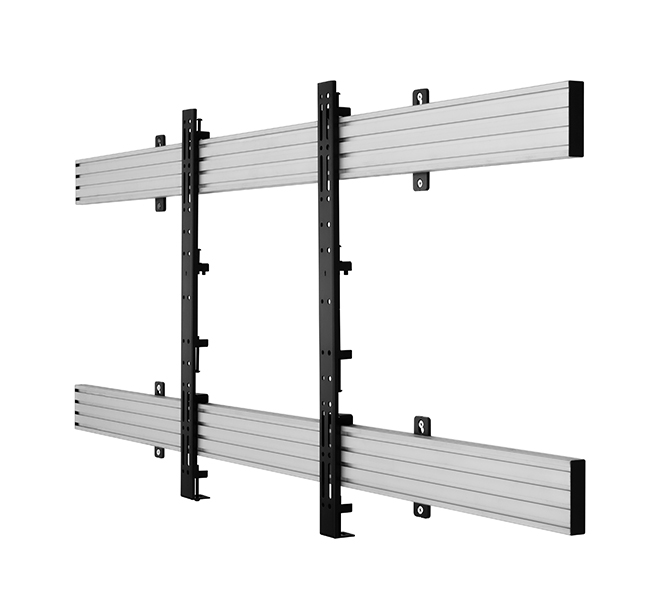

BT8390-VESA800F - System X™ Universal Interface Arms Can be mounted across dual horizontal mounting rails Can be mounted across a single horizontal mounting rail Features height adjustment screws

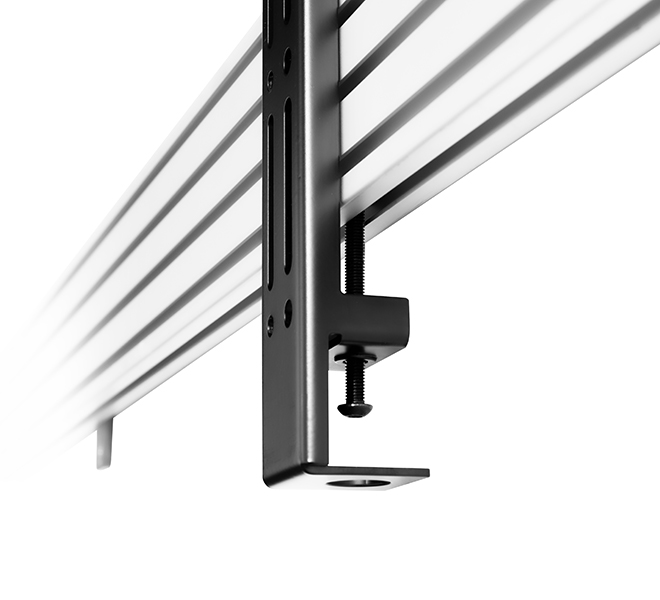

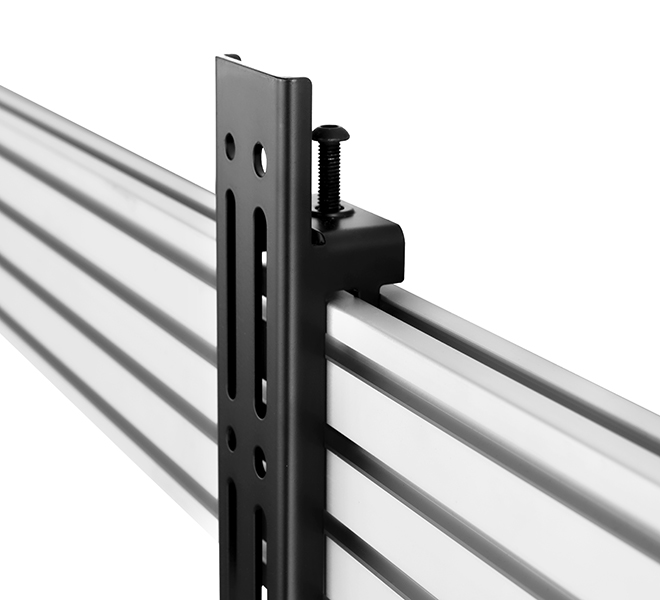

Features safety screws to prevent unauthorised removal of screens Features height adjustment & safety screws Suitable for VESA fixings up to 800mm BT8390-VESA800F - System X™ Universal Interface Arms
