System X™ Adjustable Depth Rail Mounting Bracket

BT8390-WFK5

Ideal for uneven walls




The BT8390-WFK5 is an adjustable bracket designed to fix BT8390 and BT8393 rails to uneven walls for a level installation. The BT8390-WFK5 is also compatible for pole and column mounting using B-Tech's System 2 and System X mounts. Ideal for DVLED mounting, the bracket features keyhole fixings for a quick installation and an easy to use rail depth adjustment.






  • Designed to allow BT8390 horizontal and BT8393 vertical rails to be mounted to walls and poles

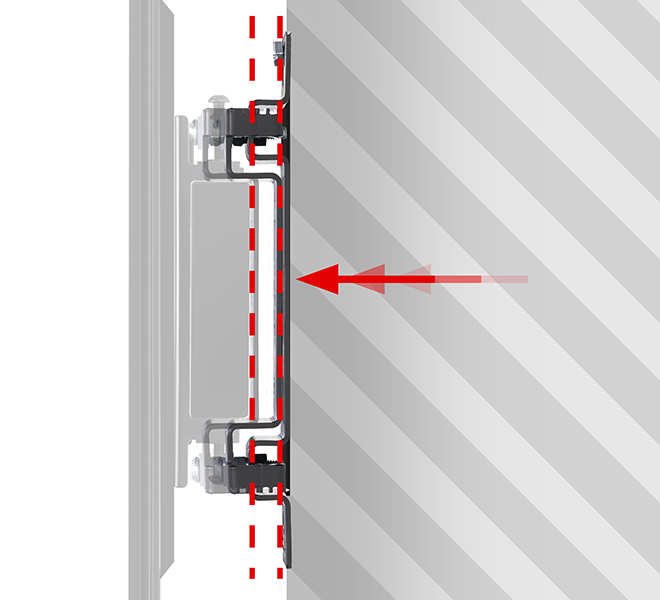

  • Mounts rail 13mm from the wall with a +/-5mm adjustable depth to ensure a flat to the wall installation
  • Can also be pole mounted using B-Tech accessory collars
  • Keyhole mounting for easy installation

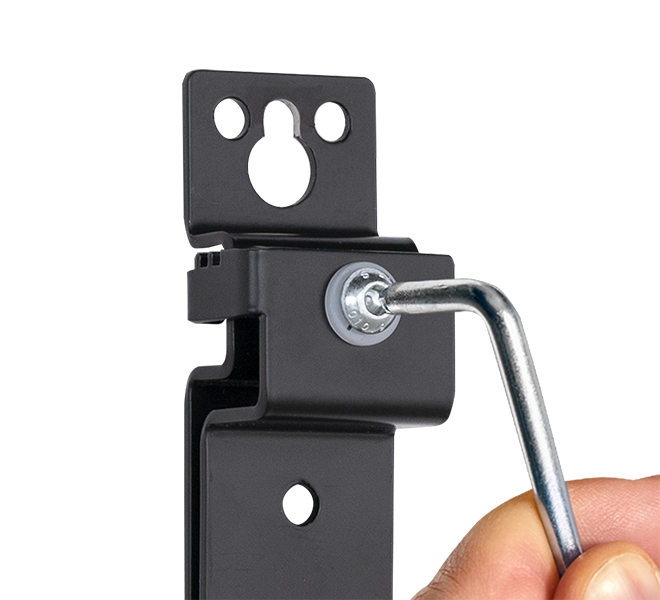

  • Easy adjustment of the depth of the rails with the use of the supplied Hex Key
  • Integrated adjustment guides help align rails
  • All mounting hardware included
  • Wall to rear of rail distance: 13mm (+/-5mm)
  • Dimensions Min: W: 45mm H: 270mm D: 40mm
  • Dimensions Max: W: 45mm H: 270mm D: 50mm
  • Max load (per pair): 80kg
  • Brackets supplied (per pack): 1
  • Colour: Black

    *Use B-Tech's online configuration tool to automatically calculate the quantity required based on your configuration.

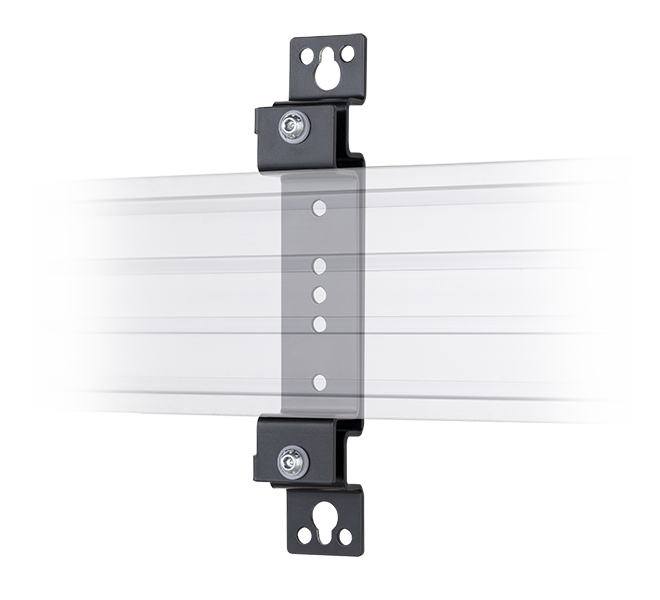

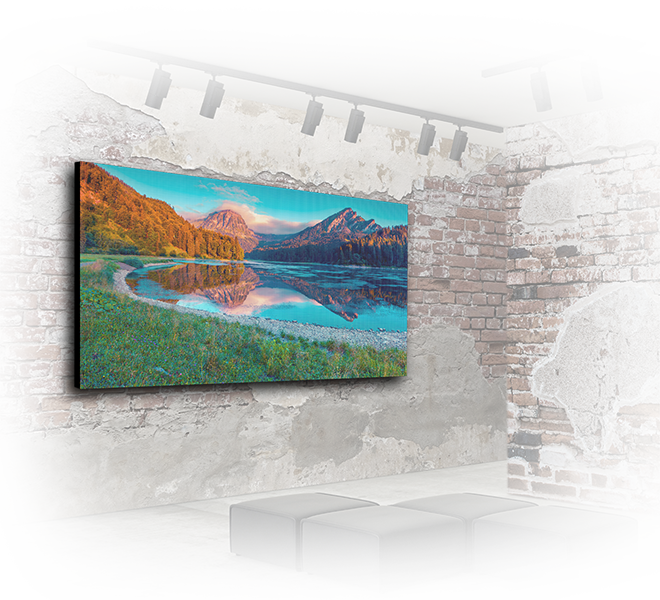

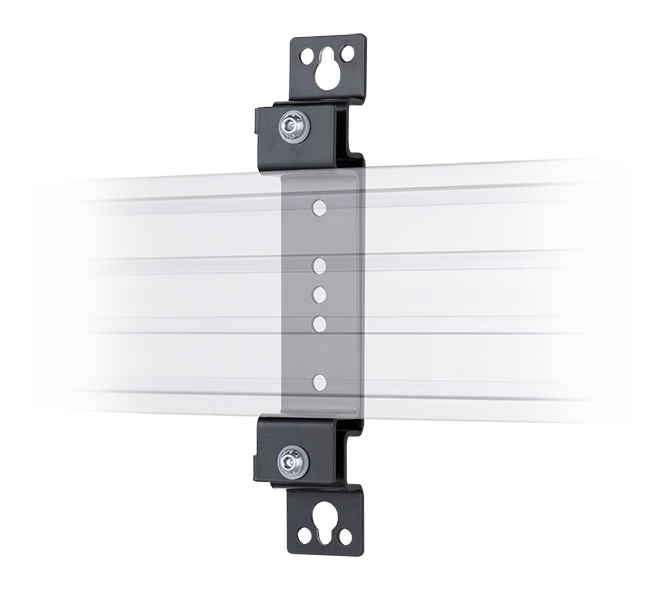

BT8390-WFK5 - System X Rail Adjustable Depth Mounting Bracket BT8390-WFK5 - Easy adjustment of the depth of the rails with the use of the supplied Hex Key BT8390-WFK5 - Mounts rail 13mm from the wall with a +/-5mm adjustable depth to ensure a flat to the wall installation BT8390-WFK5 - Ideal for mounting DVLED solutions on to uneven walls
