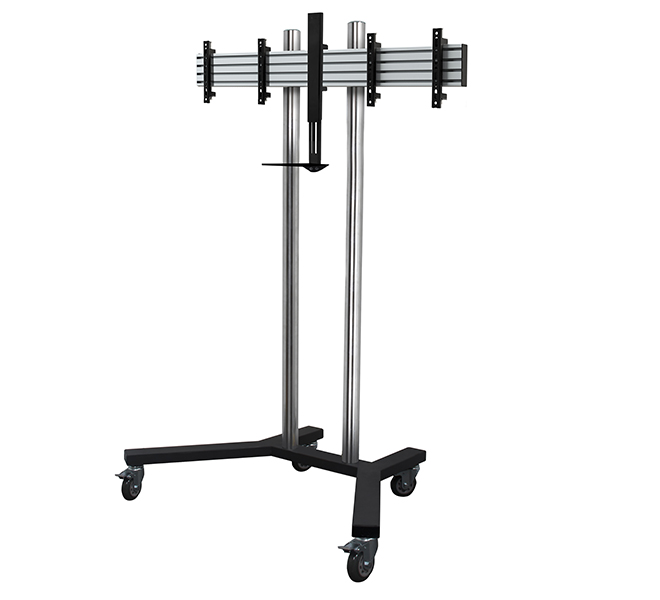

Twin Screen VC Display Trolley


For two screens up to 38"


The BT8510 is the ideal mobile video conferencing solution for twin screens up to 38". The trolley is supplied with a shelf for VC cameras which gives the user the flexibility to mount their camera either above or below the screens and integrated cable management keeps finished installations neat and tidy. Non-marking braked castors allow the trolley to be relocated easily and safely without marking floor surfaces and optional screw-in levelling feet are also included for freestanding applications if mobility is not required.




BT8510 - Twin Screen VC Display Trolley


  • Universal design suitable for mounting two small - medium sized screens side-by-side
  • High-end aesthetic quality

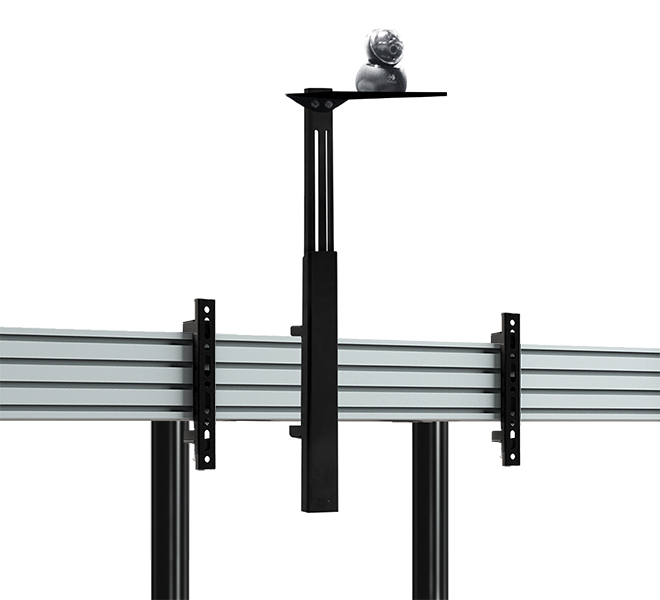

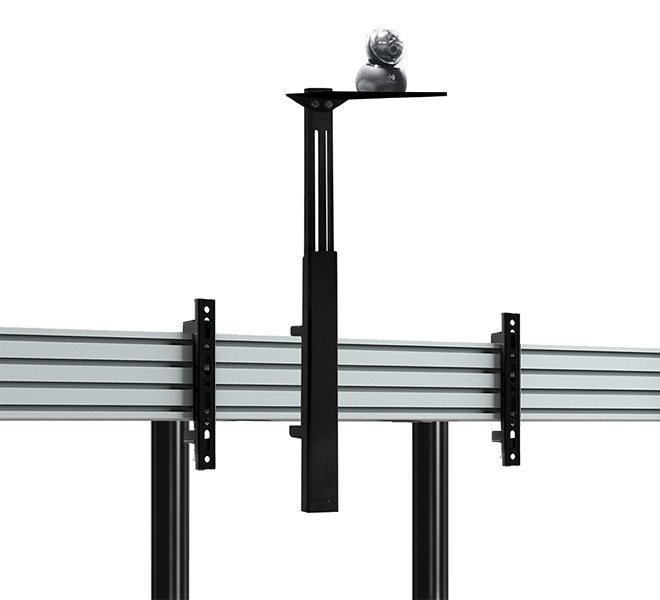

  • Includes VC shelf which can be fixed above or below the screens

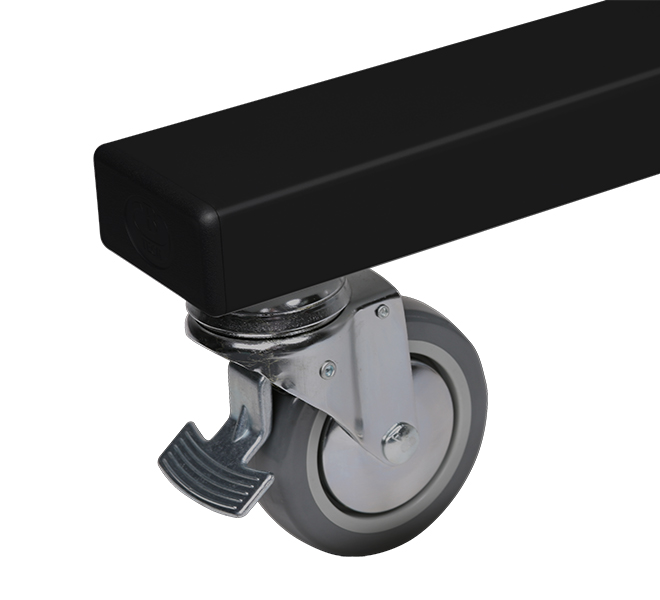

  • Features non-marking 4" locking/braked castors
  • Also supplied with adjustable levelling feet
  • Arms feature levelling screws to adjust the screen height
  • Accessories such as shelves can be fitted to the poles using 060mm collars
  • Integrated cable management for a neat and tidy installation
  • Safety screws help prevent unauthorised screen removal
  • Simple ‘hook-on’ screen installation
  • Recommended screen size: 32" (81.3cm) to 38" (97cm)
  • Max load: 35kg (77.2lbs) (per screen)
  • VESA® and non-VESA fixings: up to 200mm x 200mm
  • Dimensions: W: 1400mm (55.1") H: 1691mm (66.6") D: 769mm (30.3")
  • Colours option (Ø60mm poles): Black or Chrome

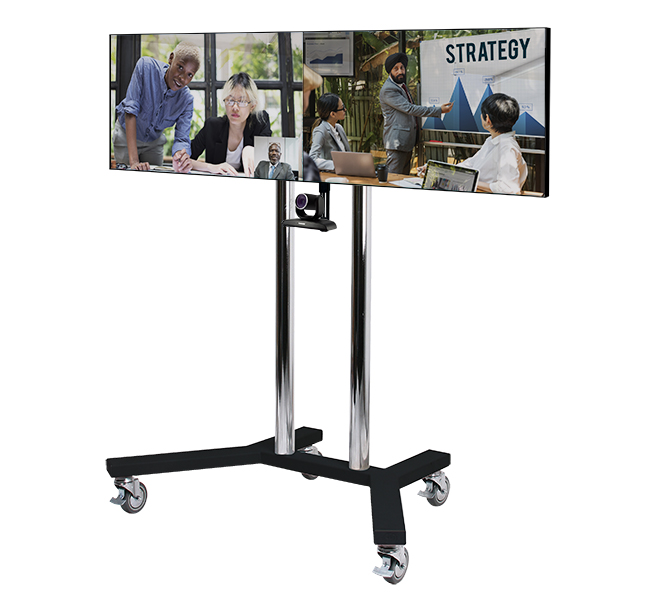

BT8510 - Twin Screen VC Display Trolley BT8510 - Twin Screen VC Display Trolley - with screens BT8510 - VC shelf can mount camera above or below the screens BT8510 - Includes non-marking 4 inch locking/braked castors
