XL Universal Flat Screen Wall Mount
with Tool-less Height Adjustment


For Medium / Large Screens


Featuring BalanceBox® technology, the BT8602 allows fast and effortless manual height adjustment of a mounted screen, without the use of tools. An ideal solution for mounting extra-large interactive touchscreens into education and corporate environments, the universal mounting interface adds lateral adjustment for perfect positioning of the screen and integrated cable management keeps finished installations neat and tidy.





  • Easy height adjustment for accessibility to interactive touchscreens
  • Available in two options to suit a range of weight specifications
  • Tried and tested BalanceBox technology
  • Manual height adjustment requires no electricity, or tools
  • Integrated cable management for a neat and tidy installation
  • Lateral adjustment of screen once mounted
  • Security locking screws and Allen key to help prevent unauthorised screen removal
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Recomended screen size: up to 120"
  • Weight capacity range:
    BT8602-01: 56kg - 110kg
    BT8602-02: 111kg - 130kg
  • VESA® & non-VESA fixings: up to 1000 x 600mm
  • Height adjustment range: 650mm
  • Distance from wall: 136mm

    *Please note the maximum load is reduced to 50kg when single pole mounted

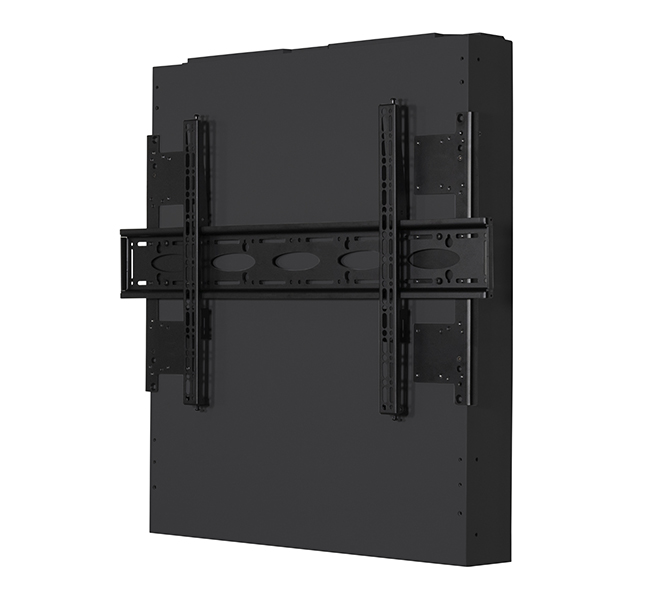

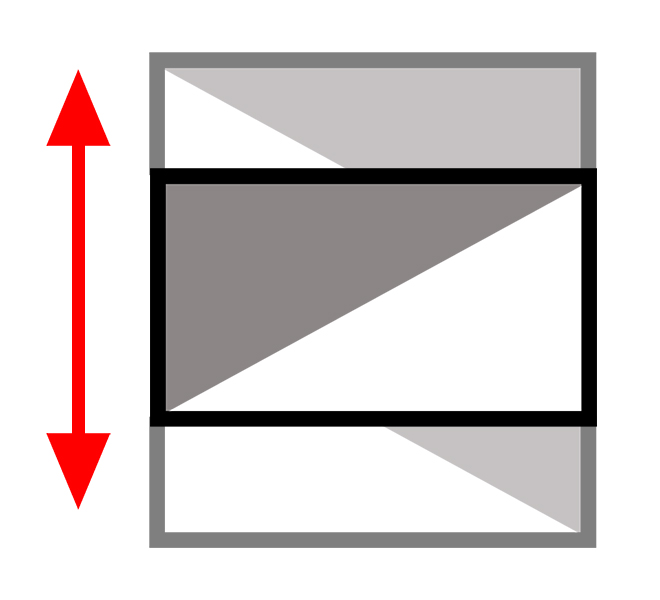

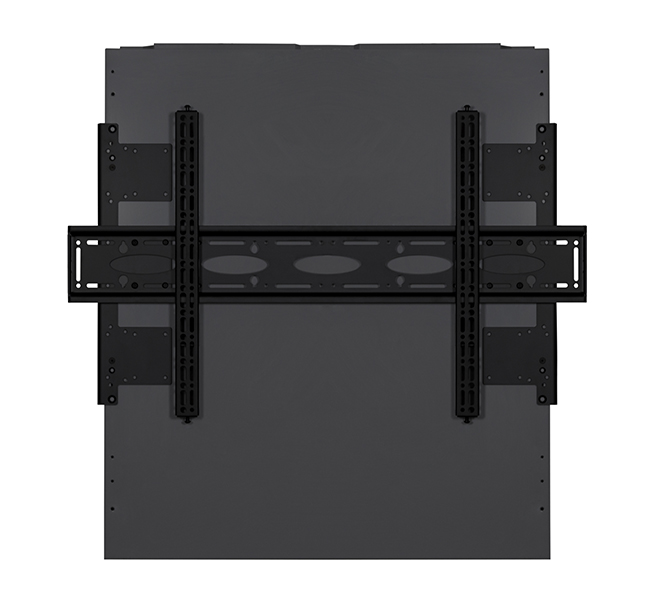

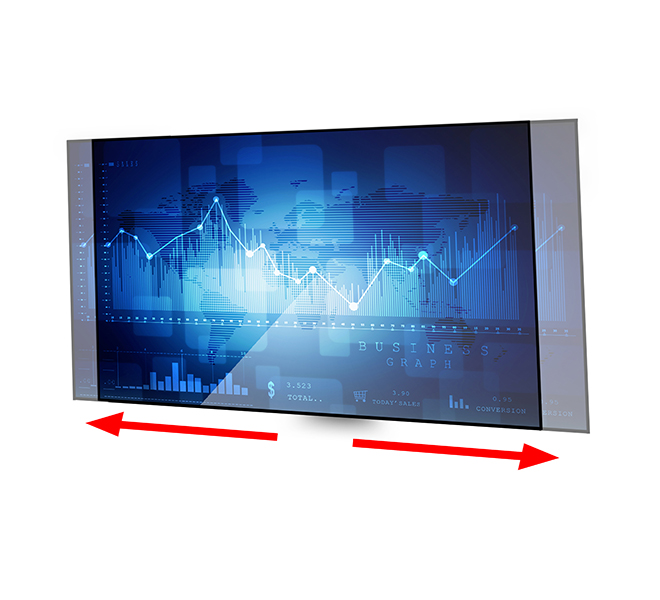

BT8602 BT8602 - Height adjustment BT8602 - Lateral adjustment

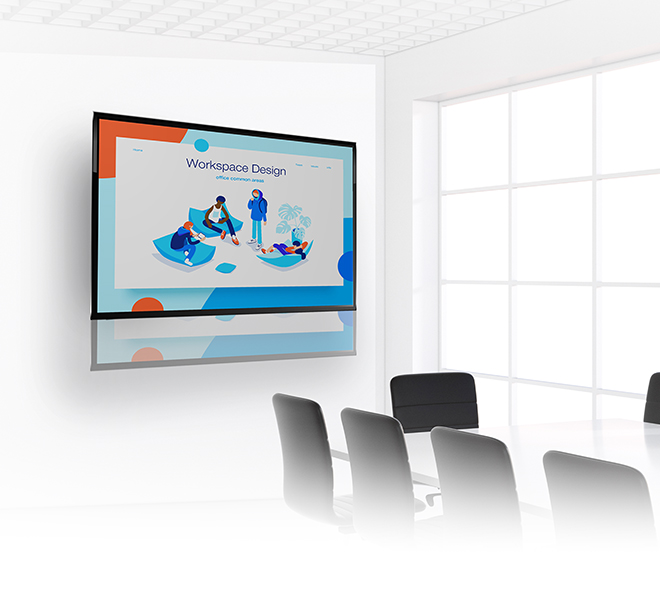

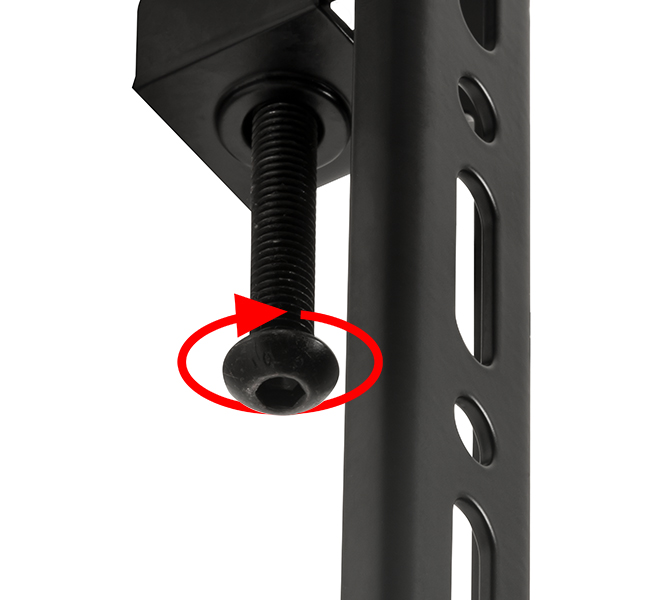

BT8602 - Locking mechanism BT8602 - Lifestyle

Specification Sheets

Specification Sheet (PDF)


Technical Drawings

Technical Drawing BT8602-01 56kg - 110kg (PDF)

Technical Drawing BT8602-02 111kg - 130kg (PDF)
