Short Drop Projector Ceiling Mount

BT881

For LCD/LED/DLP Projectors




Designed for projectors up to 10kg, the BT881 features a unique 'carousel' mounting plate for universal compatibility and a ball joint adjustment that allows easy positioning so a perfectly aligned projection can be achieved. With a ceiling drop of between 115mm and 280mm, a hand lever provides easy adjustment of the drop once the mount has been fixed into place. Installation is simple with all mounting hardware and fixings supplied, including cover-plates for a smart finish.






  • Universal mount for projectors
  • Mounts projector only 115mm from ceiling or 280mm with supplied extension rod
  • Easy to adjust and fix projector in position
  • Steel safety wire for extra security
  • Security locking screws and Allen key provided for a secure installation
  • Unique ‘Carousel’ mounting plate for universal compatibility
  • Suitable for projectors using M2.5, M3, M4, M5 and M6 fixings
  • All mounting hardware included
  • Max load: 10kg
  • Tilt (pitch) +/-90°
  • Roll: +/-90°
  • Yaw: 360°
  • Ceiling drop: 115mm or 280mm
  • Max distance between fixings: 340mm
  • Colours: Black or White

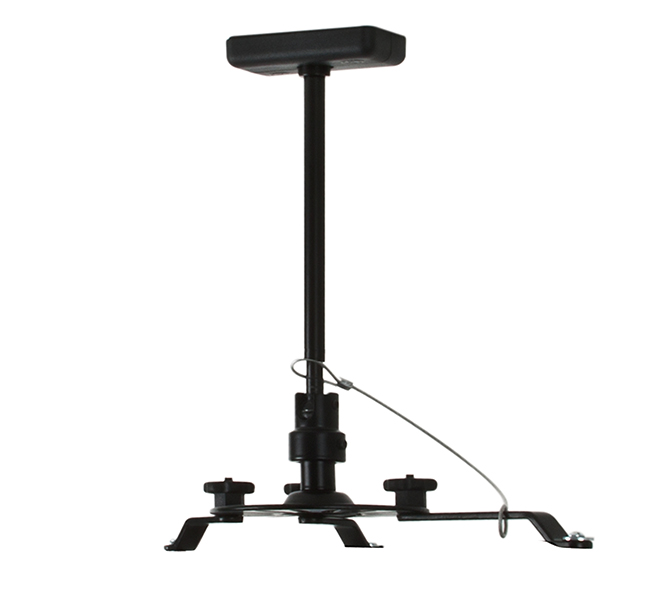

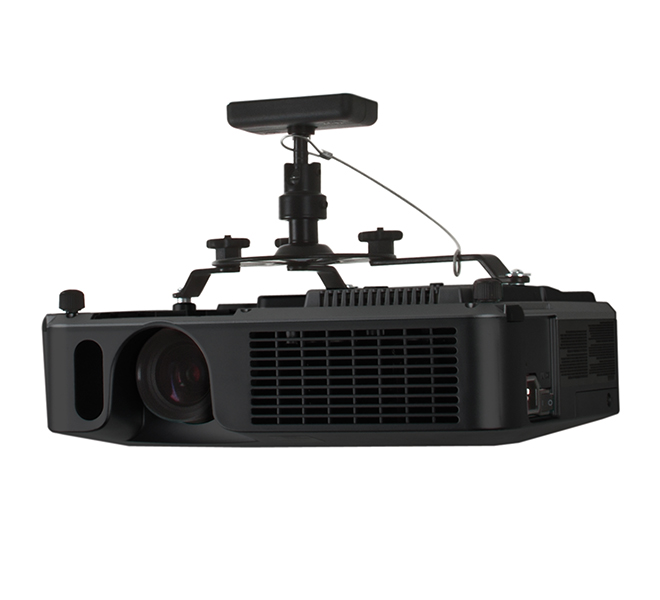

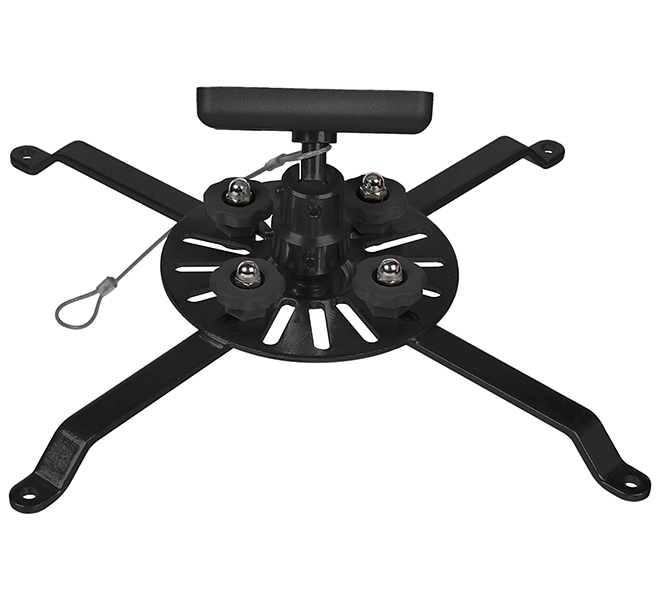

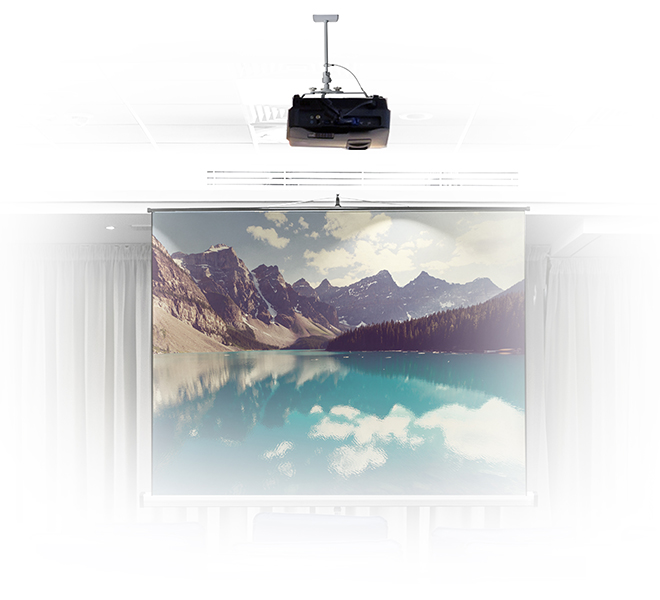

BT881 Universal Projector Ceiling Mount BT881 Universal Projector Ceiling Mount  BT881 Universal Projector Ceiling Mount - Extended with Projector BT881 Universal Projector Ceiling Mount - Lifestyle Image

Installation Guide (PDF)

Specification Sheet (PDF)
